Overview
The HD-RXU-4KZ-202 is a DM Lite® 4K60 4:4:4 receiver designed to interoperate with a DM Lite HD-TXU-4KZ Series transmitter for the transmission of HDMI® and USB 2.0 signals. A CAT5e or higher twisted pair cable is used to connect the HD-RXU-4KZ-202 to the DM Lite transmitter or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1
Interoperability with a DM Lite HD-TXU-4KZ Series Transmitter
For interoperability between the HD-RXU-4KZ-202 and an HD-TXU-4KZ Series transmitter, the DM Lite input port of the HD-RXU-4KZ-202 must be connected to the DM Lite output port of the HD-TXU-4KZ Series transmitter. Examples of supported DM Lite transmitters are the HD-TX-4KZ-211, HD-TXU-4KZ‑111-E and HD-TXU-4KZ-111-2G.
NOTE: If the HD-RXU-4KZ-202 is paired with a DM Lite transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Lite™ HD-PS Series switcher, USB 2.0 data extension is not supported.
4K60 4:4:4 and HDR Support
The HD-RXU-4KZ-202 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
Integrated Web Server
The HD-RXU-4KZ-202 includes a web server that enables device configuration and management. The web server also enables device, network, and other types of status information to be viewed.
Automatic Switching of Inputs
The web interface of the HD-RXU-4KZ-202 or control system programming can be used to configure the AV switching behavior of the HD-RXU-4KZ-202. Switching between the HDMI and DM Lite inputs can occur based on the last connected input or on the routing priority assigned to each input. In addition, input and output selection push buttons on the front of the HD-RXU-4KZ-202 enable the desired input and output be selected manually.
USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD‑RXU‑4KZ‑202, enabling connection to USB 2.0 peripheral devices. Various types of USB peripheral devices are supported, including mice, keyboards, whiteboards, touch screens, game controllers, cameras, mobile devices, headsets, printers, flash drives, hard drives, and USB hubs.3
Compact, Surface-Mountable Design
Compact in design, the HD-RXU-4KZ-202 can be mounted onto a flat surface such a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-RXU-4KZ-202 can receive power from the included power pack or from the remote DM Lite transmitter.4
Features
- DM Lite® receiver functionality designed to interoperate with a DM Lite HD-TXU-4KZ Series transmitter
- Point-to-point extension of an HDMI® AV signal and USB 2.0 data signals over a CAT5e or higher cable
- Two inputs with automatic switching:
- One HDMI input with associated USB 2.0 USB-C® input
- One DM Lite input
- DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Enterprise-grade security
- Compliance with HDCP 2.3
- Integrated web server for device configuration and management
- Automatic display control using CEC (Consumer Electronics Control)
- EDID management
- Interoperability with a Crestron 3-Series® or later control system
- XiO Cloud® service support
- .AV Framework™ technology support
- Compact, surface-mountable design
- Power from 24VDC power pack (included) or from remote DM Lite transmitter (surface mountable only)
Specs
| Video | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI® (DVI and Dual-Mode DisplayPort™ interface compatible5) and DM Lite® with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI® (DVI compatible5) with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolutions | Common resolutions are listed in the following table. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI, DM Lite | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, EDID, CEC | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DM Lite | HDCP 2.3, EDID; USB 2.0 up to 300 Mbps |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB | USB signal extension via USB 2.0 host and device ports | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet | 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, Web browser setup and control, Crestron control system integration, IEEE 802.1X, Secure CIP, Authentication, SSH/SSL, TLS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

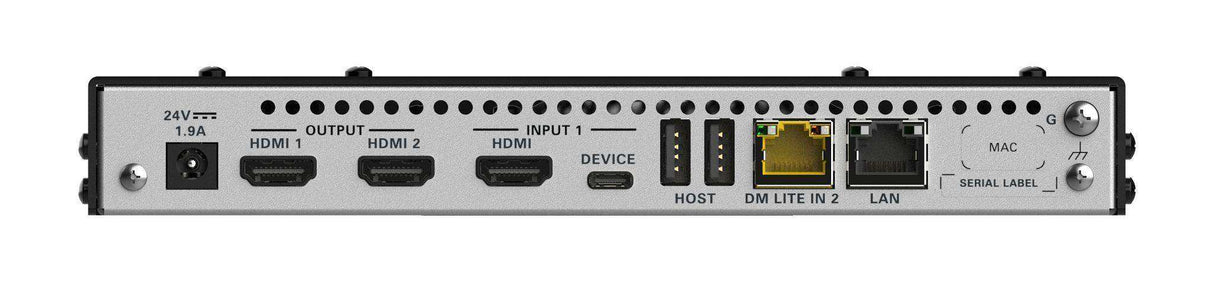

| Connectors | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SERVICE | (1) USB 2.0 Type-A connector, female; Used for firmware loading and configuration management; Can also provide up to 5V 500 mA power to a USB powered device |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 24V 1.9A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included4 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI OUTPUT 1-2 | (2) HDMI Type A connectors, female; HDMI digital video/audio output; DVI compatible5 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDMI INPUT 1 | (1) HDMI Type A connector, female; HDMI digital video/audio input; DVI and Dual-Mode DisplayPort interface compatible5 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DEVICE INPUT 1 | (1) USB Type‑C® connector, female; USB 2.0 device port associated with HDMI input for AV sources that require USB 2.0 support; USB signal extender port for connection to a computer or other USB 2.0 host3 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HOST | (2) USB Type-A connectors, female; USB 2.0 host ports; USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices;3 Available Power: 500 mA @ 5VDC per port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DM LITE IN 2 | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM Lite input port for connection to the DM Lite output port of a DM Lite HD-TXU-4KZ Series transmitter1, 6 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port for device configuration and management |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ground | (1) Chassis ground lug | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

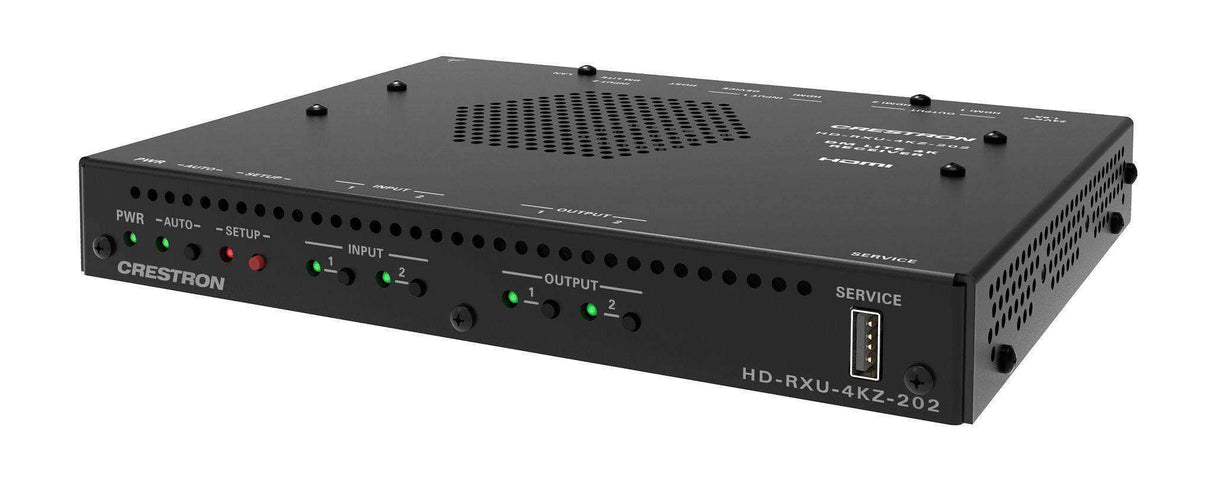

| Controls and Indicators | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PWR | (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AUTO | (1) Push button for enabling or disabling automatic switching of inputs; (1) LED, green indicates that automatic switching of inputs is enabled |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SETUP | (1) Push button for Ethernet setup; (1) LED, red indicates that the SETUP push button is pressed |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| INPUT 1 | (1) Push button for manual selection of HDMI input; (1) LED, green indicates that the HDMI input is routed to an output, and amber indicates that a source is detected but is not routed to an output |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| INPUT 2 | (1) Push button for manual selection of DM Lite input; (1) LED, green indicates that the DM Lite input is routed to an output, and amber indicates that a source is detected but is not routed to an output |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT 1 | (1) Push button for manual selection of HDMI output 1; (1) Green LED, indicates that a display or other destination device is detected and HDMI output 1 is transmitting video. Amber indicates that a display or other destination device is detected but no video is routed to the output. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT 2 | (1) Push button for manual selection of HDMI output 2; (1) Green LED, indicates that a display or other destination device is detected and HDMI output 2 is transmitting video. Amber indicates that a display or other destination device is detected but no video is routed to the output. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DM LITE IN 2 | (2) LEDs on RJ‑45 connector. Green indicates that a DM Lite link is established; Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| LAN | (2) LEDs on RJ‑45 connector; Green indicates that a 100 Mbps link is established; Solid amber indicates that a 1000 Mbps link is established; Flashing amber indicates 1000 Mbps Ethernet activity. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Pack (Included) |
Input: 100-240VAC Output: 24VDC 2.5A Model: PW-2420RU4 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104°F (0° to 40°C) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Enclosure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, vented top, front, rear, and sides, 2 mounting brackets included | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mountable, or attachment to a single rack rail | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Height | 1.20 in. (30 mm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Width | 8.52 in. (216 mm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Depth | 6.48 in. (165 mm) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.95 lb (0.88 kg) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compliance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Regulatory Model: M202047008 Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum DM Lite Transmission Distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
