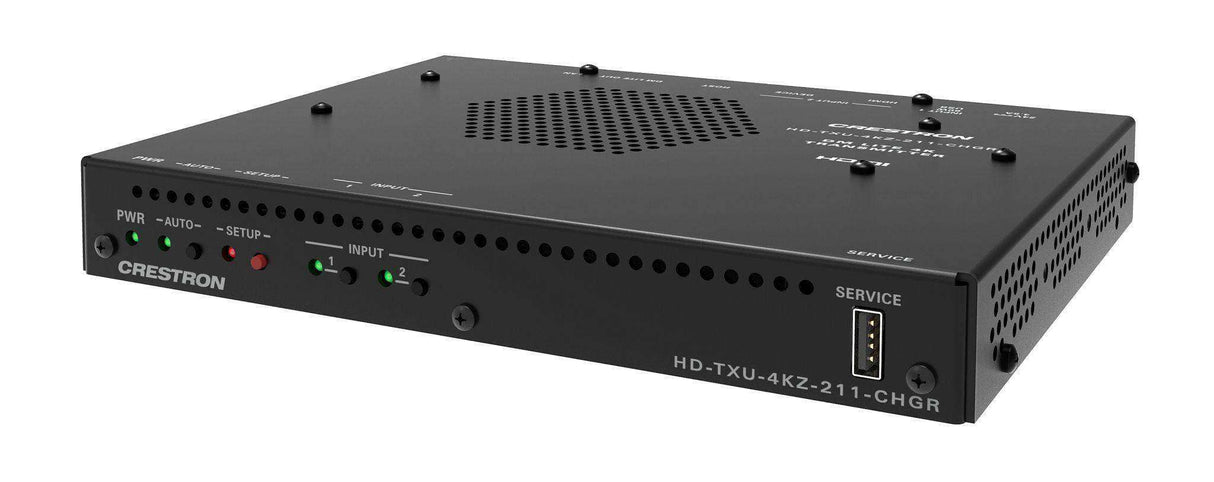

Crestron HD-TXU-4KZ-211-CHGR DM Lite® 4K60 4:4:4 Transmitter and 2x1 Auto-Switcher for HDMI®, USB-C® DisplayPort™, and USB 2.0 Signal Extension over CATx Cable with Device Charging

Product Overview

The Crestron HD-TXU-4KZ-211-CHGR is a DM Essentials 4K60 4:4:4 transmitter and 2x1 auto-switcher that extends HDMI, USB-C DisplayPort, and USB 2.0 signals over a single CATx cable to a paired HD-RXU-4KZ Series receiver. It accepts one HDMI input and one USB-C DisplayPort input with automatic switching, and the USB-C input can charge a connected laptop with up to 60W of power. Supporting HDR10, HDR10+, and Dolby Vision along with HDCP 2.3, it is built for conference rooms, classrooms, and codec-based collaboration spaces. The transmitter is powered by the included 24VDC power pack.

Product Description

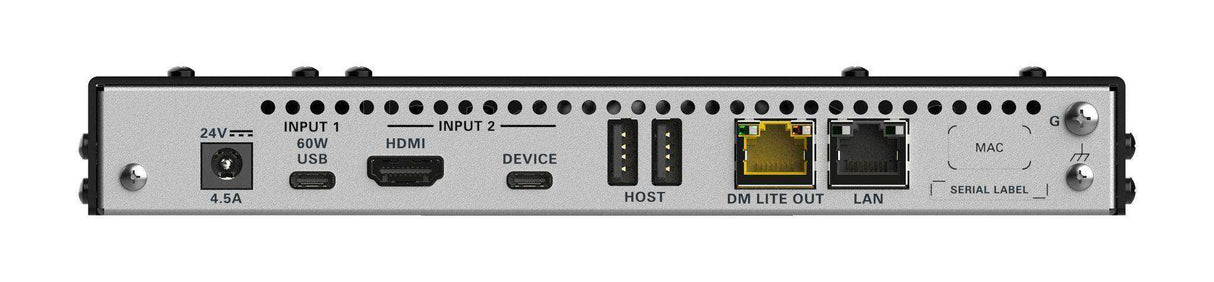

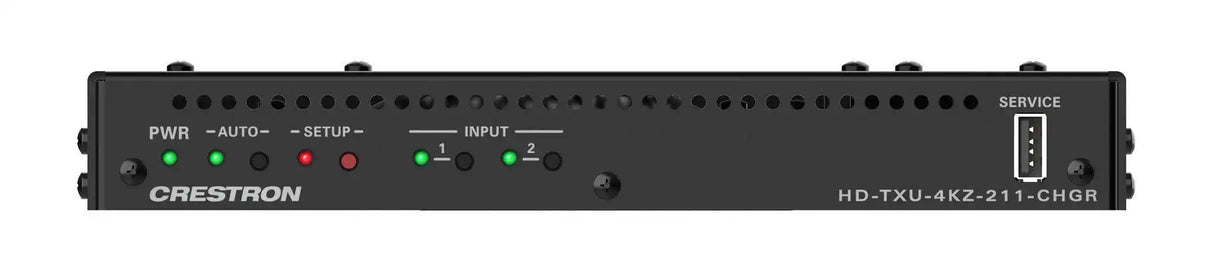

The HD-TXU-4KZ-211-CHGR is designed to interoperate specifically with a DM Essentials HD-RXU-4KZ Series receiver to provide point-to-point extension of an HDMI or USB-C DisplayPort AV signal together with USB 2.0 data over CAT5e or higher cable. Two inputs are provided with automatic switching: one HDMI input with an associated USB 2.0 device port, and one USB-C input supporting DisplayPort Alt Mode, USB 2.0, and device charging. Switching occurs based on the last connected input or assigned routing priority, and front-panel push buttons allow manual selection. The transmitter supports 4K60 4:4:4 along with 5K Ultra-Wide 5120 x 2160 and 5K Super-Wide 5120 x 1440 resolutions, expanding compatibility with current computers and displays. DM Essentials transmission distance reaches up to 130 ft (40 m) for UHD and 4K signals and up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals. Two USB 2.0 host ports and one USB 2.0 device port enable peripheral connectivity, and an integrated web server handles configuration and management. The unit also supports CEC display control, EDID management, integration with a Crestron 3-Series or later control system, XiO Cloud service, and .AV Framework technology. Note that USB 2.0 data extension requires pairing with an HD-RXU-4KZ Series receiver. For specifications not listed here, refer to the Crestron data sheet.

Key Features

• 4K60 4:4:4 Extension — Extends HDMI and USB-C DisplayPort AV with HDR10, HDR10+, Dolby Vision, and Deep Color over CATx cable.
• 2x1 Auto-Switching — One HDMI input and one USB-C DisplayPort input with automatic or manual front-panel selection.
• 60W USB-C Charging — The USB-C DisplayPort input charges a connected laptop or AV source with up to 60W of power.
• 5K Resolution Support — Adds 5K Ultra-Wide 5120 x 2160 and 5K Super-Wide 5120 x 1440 video resolutions.
• USB 2.0 Data Extension — Two USB 2.0 host ports and one device port extend keyboards, mice, and peripherals when paired with an HD-RXU-4KZ receiver.
• Extended Reach — Up to 130 ft (40 m) for 4K and up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals.
• HDCP 2.3 Compliance — Maintains content protection across the extended link.
• Integrated Web Server — Built-in web interface for configuration, management, and status monitoring.
• Control System Ready — Interoperates with Crestron 3-Series or later systems and supports XiO Cloud and .AV Framework.
• Compact, Surface-Mountable — Mounts under a table, behind a credenza, inside a podium, or on a rack rail.

Typical Applications

• Conference rooms extending a laptop or codec source to a remote display or projector.
• Huddle spaces requiring single-cable USB-C connectivity with device charging.
• Classrooms and lecture halls distributing HDMI and USB peripherals over CATx.
• BYOD collaboration tables consolidating HDMI and USB-C inputs at the table edge.

Technical Specifications

Frequently Asked Questions

Which receiver does it work with?
The HD-TXU-4KZ-211-CHGR is designed to interoperate with a DM Essentials HD-RXU-4KZ Series receiver. USB 2.0 data extension requires this pairing and is not supported with other receivers or HD-PS Series switchers.

What cable is required?
Use Crestron DM-CBL-8G, DM-CBL-ULTRA, or third-party CAT5e or higher cable. Shielded cable is recommended above 1080p and required when bundling multiple runs.

Can it charge a laptop?
Yes. The USB-C DisplayPort input provides up to 60W of charging power to a connected source.

Does it integrate with a control system?
Yes. It interoperates with Crestron 3-Series or later control systems and supports XiO Cloud and .AV Framework technology.

What is the warranty?
Crestron provides a 3-year limited warranty. For design assistance or ordering, Contact Creation Networks.
