Crestron HD-RXU-4KZ-101-E DM Lite® 4K60 4:4:4 Receiver for HDMI®, USB 2.0, and Ethernet Signal Extension over CATx Cable

Availability: Call for Availability
Crestron SKU: HD-RXU-4KZ-101-E
No reviews
Price:
$850.00

Description

The HD-RXU-4KZ-101-E is a DM Lite® 4K60 4:4:4 receiver designed to interoperate with a DM Lite HD-TXU-4KZ Series transmitter for the transmission of HDMI® and USB 2.0 signals. In addition, a LAN port enables Ethernet pass-through capability.

A CAT5e or higher twisted pair cable is used to connect the HD-RXU-4KZ-101-E to the DM Lite transmitter. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1

Interoperability with a DM Lite HD-TXU-4KZ Series Transmitter
For interoperability between the HD-RXU-4KZ-101-E and an HD-TXU-4KZ Series transmitter, the DM Lite input port of the HD-RXU-4KZ-101-E must be connected to the DM Lite output port of the HD-TXU-4KZ Series transmitter. Examples of supported DM Lite transmitters are the HD-TXU-4KZ‑111-E and HD-TXU-4KZ-111-2G.

NOTE: If the HD-RXU-4KZ-101-E is paired with a DM Lite transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Lite™ HD-PS Series switcher, USB 2.0 data extension is not supported.

4K60 4:4:4 and HDR Support
The HD-RXU-4KZ-101-E supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2

USB 2.0 Data Extension
Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-E, enabling connection to USB 2.0 peripheral devices. Various types of USB peripheral devices are supported, including mice, keyboards, whiteboards, touch screens, game controllers, cameras, mobile devices, headsets, printers, flash drives, hard drives, and USB hubs.3

Ethernet Pass-Through Capability
The HD‑RXU‑4KZ‑101-E is equipped with a 100/1000 Mbps LAN port that receives an Ethernet signal transmitted over the DM Lite connection from the HD-TX-4KZ-111-E. The LAN port of the HD-TXU-4KZ-111-E can be connected to an Ethernet network or directly to an Ethernet-enabled device such as a PC. If the LAN port of the HD-TXU-4KZ-111-E is connected to an Ethernet network, the LAN port of the HD-RXU-4KZ-101-E must be connected to an Ethernet-enabled device. If the LAN port of the HD-TXU-4KZ-111-E is connected to an Ethernet-enabled device, the LAN port of the HD-RXU-4KZ-101-E must be connected to an Ethernet network.

Compact, Surface-Mountable Design

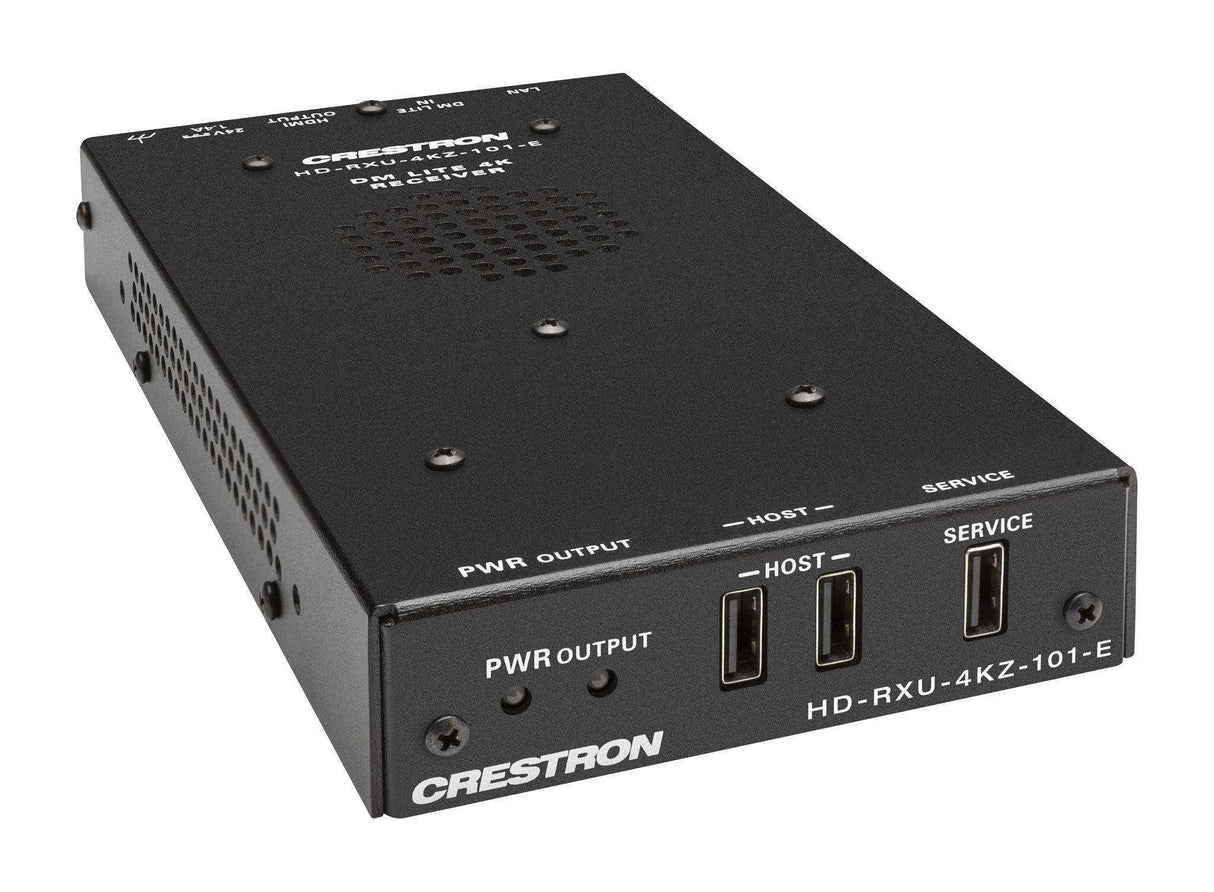

Compact in design, the HD-RXU-4KZ-101-E can be mounted onto a flat surface such a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-RXU-4KZ-101-E can receive power from the included power pack or from the remote DM Lite transmitter.4

  • DM Lite® receiver functionality designed to interoperate with a DM Lite HD-TXU-4KZ Series transmitter
  • Point-to-point extension of an HDMI® AV signal, USB 2.0 data signals, and Ethernet signal over a CAT5e or higher cable
  • DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • 4K60 4:4:4 capability
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Ethernet pass-through capability
  • Compliance with HDCP 2.3
  • CEC (Consumer Electronics Control) pass-through capability
  • EDID pass-through capability
  • Compact, surface-mountable design
  • Power from 24VDC power pack (included) or from remote DM Lite transmitter
Video
Input Signal Type DM Lite® with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2
Output Signal Type HDMI® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2
Copy Protection HDCP 2.3
Resolutions Common resolutions are listed in the following table.
Scan Type Resolution Frame Rate Color Sampling Color Depth
Progressive 4096x2160 DCI 4K & 3840x2160 4K UHD 24 Hz 4:4:4 12 bit
30 Hz 4:4:4 12 bit
60 Hz 4:2:2 12 bit
60 Hz 4:4:4 8 bit
2560x1600 WQXGA 60 Hz 4:4:4 8 bit
1920x1080 FHD 1080p 60 Hz 4:4:4 12 bit
Interlaced 1920x1080 HD 1080i 30 Hz 4:4:4 12 bit
Note: The maximum supported resolution is 4K60 with 4:4:4 color sampling. Custom resolutions are supported at pixel clock rates up to 600 MHz.
Audio
Input Signal Type DM Lite
Output Signal Type HDMI
Digital Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels
Communications
HDMI HDCP 2.3, EDID, CEC pass-through
DM Lite HDCP 2.3, EDID pass-through;
USB 2.0 up to 300 Mbps
USB USB signal extension via USB 2.0 host ports;
USB host for one TT-100 series cable caddy (sold separately) via SERVICE port
Ethernet 100/1000 Mbps pass-through
Connectors

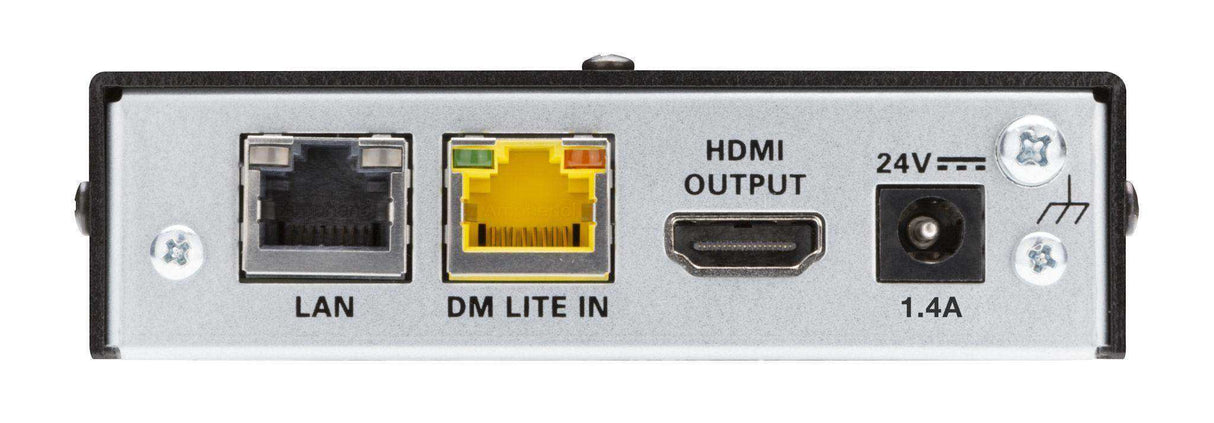

HDMI OUTPUT (1) HDMI Type A connector, female;
HDMI digital video/audio output;
DVI compatible5
DM LITE IN (1) 8‑pin RJ‑45 yellow connector, female, shielded;
DM Lite input port for connection to the DM Lite output port of a DM Lite transmitter1, 6
LAN (1) 8-pin RJ‑45 connector, female;
100BASE-TX/1000BASE-T Ethernet port;
Receives Ethernet signal from an HD-TX-4KZ-111-E transmitter over the DM Lite connection
24V 1.4A (1) 2.1 x 5.5 mm DC power connector;
24VDC power input;
PW-2420RU power pack included4

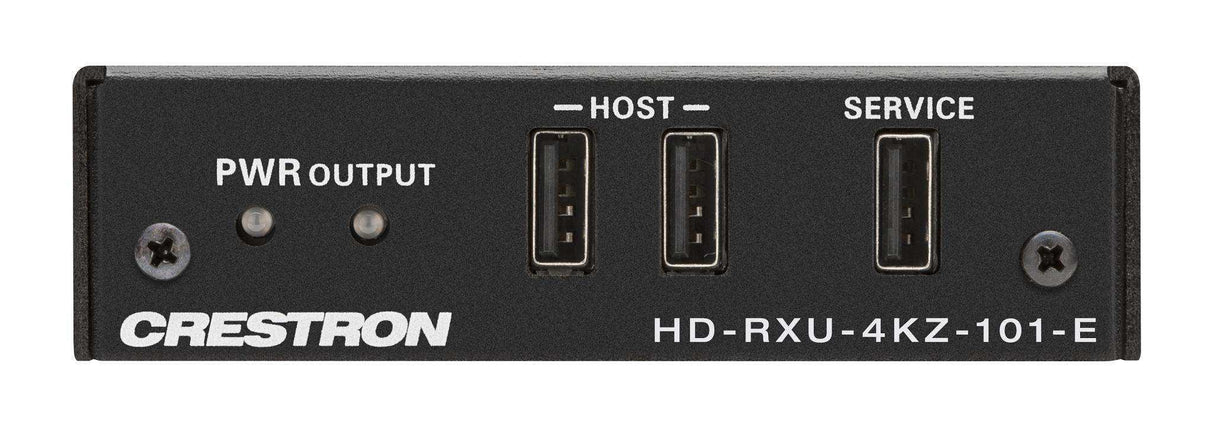

HOST (2) USB Type-A connectors, female;
USB 2.0 host ports;
USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices;3
Available Power: 500 mA @ 5VDC per port
SERVICE (1) USB 2.0 Type‑A connector, female;
Used for firmware loading, configuration management, or as a USB host port for one TT-100 series cable caddy (sold separately);
Can also provide up to 5V 500 mA power to a USB powered device
Ground (1) Chassis ground lug
Controls and Indicators
PWR (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational.
OUTPUT (1) Green LED, indicates that the device is transmitting an HDMI signal
DM LITE IN (2) LEDs on RJ 45 connector.
Green indicates that a DM Lite link is established.
Flashing amber indicates non-HDCP video, and solid amber indicates HDCP video.
LAN (2) LEDs on RJ‑45 connector.
Green indicates that a 100 Mbps link is established.
Solid amber indicates that a 1000 Mbps link is established.
Flashing amber indicates 1000 Mbps Ethernet activity.
Power
Power Pack (Included) Input: 100-240VAC
Output: 24VDC 2.5A
Model: PW-2420RU4
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 20% to 90% RH (non-condensing)
Enclosure
Chassis Metal, black finish, vented top and sides, 2 mounting brackets included
Mounting Freestanding, surface mountable, or attachment to a single rack rail
Dimensions
Height 1.20 in. (30 mm)
Width 4.19 in. (106 mm)
Depth 7.94 in. (202 mm)
Weight
1.19 lb (0.54 kg)
Compliance
Regulatory Model: M202047006

Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class B digital device
Maximum DM Lite Transmission Distance
        Cable Type1
Resolution Frame Rate (Hz) Color Sampling Color Depth DM-CBL-ULTRA DM® Ultra Cable DM-CBL-8G DM 8G® Cable or CAT5e (UTP) or Higher
1920x1080 HD 1080i 30 4:4:4 12 bit 230 ft (70 m) 195 ft (60 m)
1920x1080 FHD 1080p 60 4:4:4 8, 12 bit
1600x1200 UXGA 60 4:4:4 8, 12 bit
2048x1080 DCI 2K 60 4:4:4 8, 12 bit
1920x1200 WUXGA 60 4:4:4 8, 12 bit
2048x1152 QWXGA 60 4:4:4 8, 12 bit
2560x1080 UWFHD 60 4:4:4 8 bit
2560x1440 WQHD Reduced Blanking 60 4:4:4 8 bit
2560x1600 WQXGA Reduced Blanking 60 4:4:4 8 bit
2048x1152 QWXGA 60 4:4:4 12 bit
3840x2160 4K UHD and 4096x2160 DCI 4K 30 4:2:2 12 bit
30 4:4:4 8 bit
60 4:2:0 8 bit
3840x2160 4K UHD and 4096x2160 DCI 4K 30 4:4:4 12 bit 130 ft (40 m) 100 ft (30 m)
60 4:2:0 12 bit
60 4:2:2 12 bit
60 4:4:4 8 bit
