Crestron FT2A-CBLR-GR-CAT6 Gravity Cable Retractor for FT2 Series, RJ-45 to RJ-45, CAT6
Crestron FT2A-CBLR-GR-CAT6 Gravity Cable Retractor for FT2 Series, RJ-45 to RJ-45, CAT6 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron FT2A-CBLR-GR-CAT6 Gravity Cable Retractor for FT2 Series,...
Product Overview

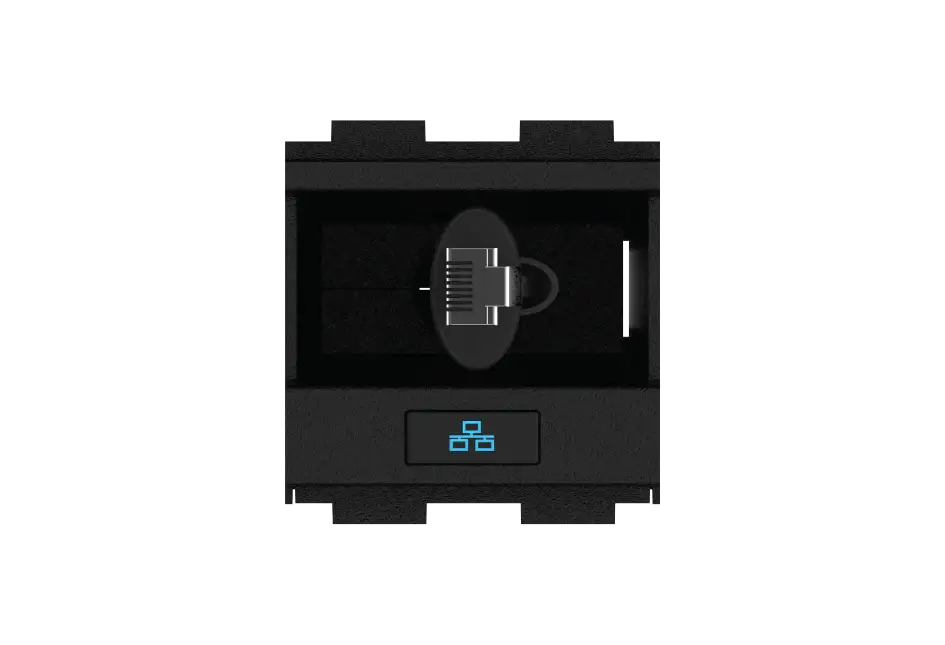

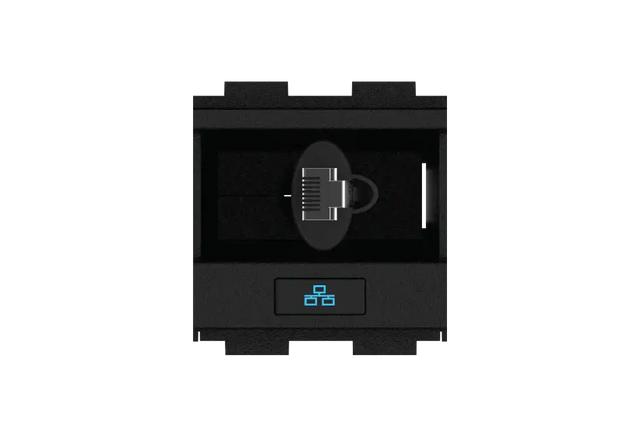

The Crestron FT2A-CBLR-GR-CAT6 is a gravity cable retractor module for FT2 series FlipTop cable management systems, providing a retractable CAT6 LAN cable with a male RJ-45 connector at both ends. It uses a precision gravity-assisted track and pulley mechanism so the cable pulls out smoothly for use and drops back into the FlipTop when released. The retractor is passive, requiring no power or programming. It installs into a module slot of a compatible FT2 series FlipTop.
Product Description
The FT2A-CBLR-GR-CAT6 keeps a CAT6 network connection tidy and immediately available at the table. Its gravity-assisted track and pulley mechanism is housed in a narrow vertical enclosure that extends beneath the FlipTop chassis, allowing the cable to be drawn out for use and retracted out of sight afterward. The retractor terminates in a male RJ-45 connector on both ends for direct connection between a device and an in-table or under-table network feed. It installs in a compatible FT2 series FlipTop such as the FT2-202-MECH-PTL-B. Cable retractors are normally installed at the left or right end of a row; installing one in a middle position requires the FT2A-CBLR-BRKT-202 mid-row adapter bracket (sold separately). Installation requires 28-7/16 in. (722 mm) minimum vertical clearance below the table surface, with 2-3/8 in. (60 mm) horizontal clearance to either side for end-mounted retractors or 2-3/4 in. (70 mm) front-to-rear clearance for mid-row mounting.
Key Features
- Retractable CAT6 cable — Provides an RJ-45 to RJ-45 network connection at the table.
- Gravity-assisted mechanism — Precision track and pulley pulls out smoothly and retracts cleanly.
- Passive operation — No power or programming required.
- FT2 series compatible — Installs in a module slot of a compatible FT2 series FlipTop.
- Mid-row capable — Supports middle positions with the FT2A-CBLR-BRKT-202 adapter bracket (sold separately).
- Under-table enclosure — Narrow vertical housing extends below the FlipTop chassis.
Technical Specifications
| Model | FT2A-CBLR-GR-CAT6 |
| Cable | Retractable CAT6 LAN cable |
| Connectors | Male RJ-45 on both ends |
| Mechanism | Gravity-assisted track and pulley, passive |
| Compatibility | FT2 series FlipTop cable management systems |
| Vertical Clearance | 28-7/16 in. (722 mm) minimum below table surface |
| Horizontal Clearance | 2-3/8 in. (60 mm) per side (end); 2-3/4 in. (70 mm) front/rear (mid-row) |
| Mid-Row Mounting | Requires FT2A-CBLR-BRKT-202 adapter bracket (sold separately) |
| Additional Specifications | Refer to Crestron data sheet |
