Crestron FT2-202-MECH-PTL-B FlipTop FT2 Series Cable Management System, 202 Size, Mechanical, Pass-Through Lid, Black

Product Overview

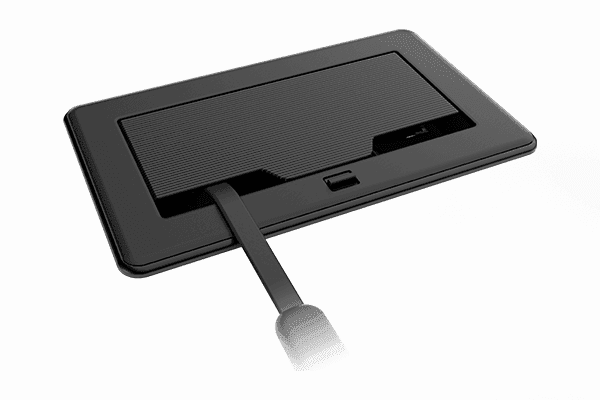

The Crestron FT2-202-MECH-PTL-B is a 202-size mechanical FlipTop cable management system in black with a pass-through lid that allows cables to remain connected when the lid is closed. It installs into a table or other horizontal surface to provide modular, dashboard-forward connectivity for meeting spaces. A one-touch mechanical pushbutton retracts the lid, revealing six module slots arranged in a single row. The modular design accepts a range of Crestron FT2 accessories for a custom configuration.

Product Description

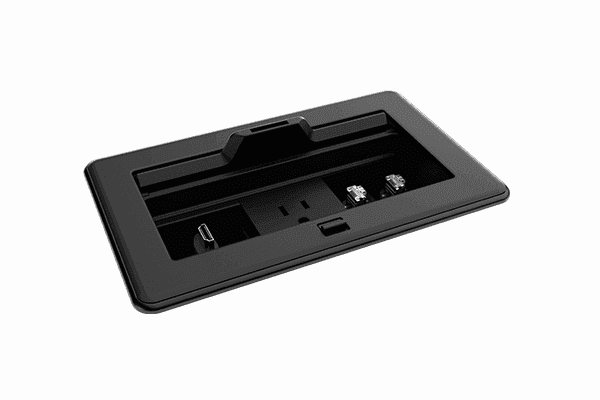

The FT2-202-MECH-PTL-B FlipTop keeps connections close to the table surface where they are clearly visible and readily accessible. When the lid is retracted, six module slots in one row accept drop-in modules such as pass-through cable plates, gravity cable retractors, keystone plates, USB charging modules, and AC power outlets (all sold separately). The pass-through lid design allows cables to exit while the lid is closed, supporting persistent connections at the table. Installation is straightforward: cut the hole, place the unit, and turn four screws to engage the swiveling dogs that secure the FlipTop, then drop in modules and snap the magnetically attached bezel into place. The result is one contiguous metal surface with no visible gaps or screws, and modules may be rearranged at any time. The chassis is metal with a black finish and a mechanically retracting black or alloy lid. Compatible accessories include the FT2A-CBLR-GR-CAT6 gravity cable retractor and the FT2A-CBL-PT-CAT6 pass-through cable. Note that FT2A-CBLR-1T series one-touch retractors are not compatible with the FT2-202-MECH series.

Key Features

• Pass-through lid — Cables stay connected and route out while the lid is closed.
• One-touch mechanical lid — A pushbutton retracts the lid fully so it disappears at the table surface.
• Six module slots — A single row accepts six drop-in modules for custom connectivity.
• Modular accessory support — Works with pass-through cables, gravity retractors, keystone plates, USB chargers, and AC outlets (sold separately).
• Tool-light installation — Four swiveling dogs secure the unit in a 3-1/4 x 7 in. cutout.
• Clean machined finish — Metal chassis with a magnetically attached bezel and no visible screws.
• Adjustable cable plates — Accommodate a variety of connector shapes and sizes.
• Under-table utility shelf option — Optional FT2A-UTK-SHELF eases mounting of a transmitter or interface device.

Typical Applications

• Conference and boardroom tables — Concealed, retractable connectivity for presenters.
• Huddle and collaboration spaces — Quick BYOD connection points at the table surface.
• Training rooms — Multiple cable retractors and power outlets in a single compartment.
• Lecterns and podiums — Tidy in-surface cable management for AV sources.

Technical Specifications

Frequently Asked Questions

Are modules included with the FT2-202-MECH-PTL-B? No. The chassis ships without modules. Pass-through cables, gravity cable retractors, keystone plates, USB chargers, and AC power outlets are sold separately.

What size cutout does it require? A 3-1/4 in. (83 mm) deep by 7 in. (178 mm) wide rectangular cutout, with a maximum surface thickness of 1-3/4 in. (44 mm). A template is provided.

Which cable retractors are compatible? FT2A-CBLR-GR series gravity cable retractors are compatible. FT2A-CBLR-1T series one-touch retractors are not compatible with the FT2-202-MECH series.

What is the difference versus the standard mechanical FlipTop? The pass-through lid (PTL) version allows cables to remain connected and route out of the compartment while the lid is closed.

What warranty applies and where can I get help? This product is covered by the Crestron limited warranty (3-year limited). For configuration and accessory selection, Contact Creation Networks.
