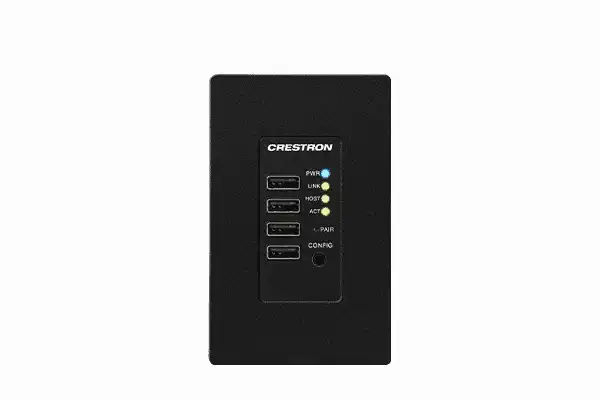

Crestron DM-NUX-R2-1G-B DM NUX USB over Network Wall Plate with Routing, Remote, Black

Product Overview

The Crestron DM-NUX-R2-1G-B is the remote, device-side module of the DM NUX USB over Network family, in a single-gang black wall plate. It provides four USB Type A ports for connecting keyboards, mice, cameras, whiteboards, and other peripherals at a remote location. The module extends and routes USB 1.0, 1.1, and 2.0 signals over Ethernet or CAT5e cable for distances up to 330 ft (100 m). Paired with a DM-NUX-L2 local endpoint, it forms a managed USB extension and routing link.

Product Description

The DM-NUX-R2-1G-B provides connectivity for up to four USB devices at one location, expandable using up to four USB hubs (not included) for as many as 30 USB devices. It connects to a Crestron DM-NUX-L2 local endpoint, either directly over a dedicated CAT5e or higher cable or across a Layer 2 Ethernet network, transporting USB at speeds up to 480 Mbps depending on network conditions. Using Virtual Hub technology, up to five DM-NUX-R2 endpoints can connect to a single DM-NUX-L2, enabling numerous devices to control one host. The endpoint requires no drivers with Windows, macOS, or Linux and is plug-and-play compatible with most USB 1.1 and 2.0 devices, including isochronous devices. When integrated with a DigitalMedia system, USB routing follows video and audio routing, allowing switching between hosts under control system management. Each USB port provides up to 600 mA concurrently, or up to 1 A when two or fewer ports are in use. The DM-NUX-R2 is powered by an included PW-2407WU power pack. To form a complete system, pair it with a Crestron DM-NUX-L2-1G-B local module.

Key Features

• Four USB Type A Ports — Connects up to four USB devices at the remote location, expandable with hubs.
• Device-Side Module — Serves keyboards, mice, cameras, whiteboards, and other peripherals.
• USB Signal Extension — Extends USB 1.0, 1.1, and 2.0 signals up to 330 ft (100 m) over Ethernet or CAT5e.
• Managed Routing — Enables USB signal routing under a Crestron control system or DigitalMedia system.
• Virtual Hub — Supports up to five remote endpoints connected to one local module.
• High Throughput — Transports USB at up to 480 Mbps with mass storage acceleration.
• Per-Port Power — Provides up to 600 mA per port concurrently, or up to 1 A with two or fewer ports active.
• Single-Gang Wall Plate — Installs in a standard single-gang opening with a black finish.

Typical Applications

• Conference Rooms — Provides USB ports at the table or display for cameras and peripherals.
• Classrooms — Serves interactive whiteboards, keyboards, and document cameras remotely.
• Control Rooms — Connects multiple device endpoints to a centrally located host.
• DigitalMedia Systems — Adds remote USB device connectivity alongside extended video and audio.

Technical Specifications

Frequently Asked Questions

What does the DM-NUX-R2-1G-B connect to?
It is the remote (device-side) module and provides four USB Type A ports for peripherals. It pairs with a DM-NUX-L2 local module connected to the USB host.

Is a local module included?
No. The local and remote endpoints are sold individually. A complete system requires at least one DM-NUX-L2 and one DM-NUX-R2.

How many devices can it support?
It provides four USB Type A ports and is expandable to as many as 30 USB devices using up to four USB hubs (not included).

How is it powered?
The remote module is powered by an included PW-2407WU power pack.

What warranty and support apply?
This product carries the Crestron 3-year limited warranty. For configuration and purchasing assistance, Contact Creation Networks.
