Crestron DM-NUX-L2-1G-B DM NUX USB over Network Wall Plate with Routing, Local, Black

Product Overview

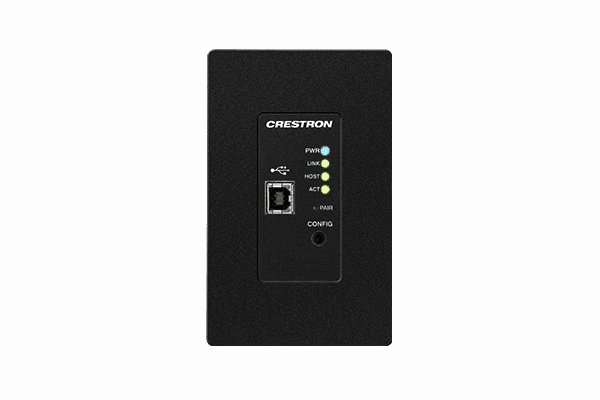

The Crestron DM-NUX-L2-1G-B is the local, host-side module of the DM NUX USB over Network family, in a single-gang black wall plate. It extends and routes USB 1.0, 1.1, and 2.0 signals between a host computer and remote devices over Ethernet or CAT5e cable for distances up to 330 ft (100 m). A USB Type B port connects to the host, while pairing with a DM-NUX-R2 remote endpoint completes a working link. Integration with a Crestron control system or DigitalMedia system enables managed USB signal routing.

Product Description

The DM-NUX-L2-1G-B provides connectivity for a single USB host such as a computer, media server, codec, or game console. It connects to a Crestron DM-NUX-R2 remote endpoint, either directly over a dedicated CAT5e or higher cable or across a Layer 2 Ethernet network, transporting USB at speeds up to 480 Mbps depending on network conditions. Using Virtual Hub technology, up to five DM-NUX-R2 endpoints can connect to a single DM-NUX-L2, allowing numerous USB devices to control one host. The endpoint requires no drivers with Windows, macOS, or Linux and is plug-and-play compatible with most USB 1.1 and 2.0 devices. Mass storage acceleration improves USB 2.0 bulk transfer speeds. When integrated with a DigitalMedia system, USB routing follows video and audio routing, and the endpoint can connect to the LAN port of a DM transmitter or receiver to add USB connectivity without extra wiring. The DM-NUX-L2 is USB powered through the host interface. To form a complete system, pair it with a Crestron DM-NUX-R2-1G-B remote module.

Key Features

• USB Signal Extension — Extends USB 1.0, 1.1, and 2.0 signals up to 330 ft (100 m) over Ethernet or CAT5e cable.
• Host-Side Module — Connects to a single USB host via a USB Type B port (cable included).
• Managed Routing — Enables USB signal routing under a Crestron control system or DigitalMedia system.
• Virtual Hub — Supports up to five DM-NUX-R2 remote endpoints connected to one local module.
• High Throughput — Transports USB at up to 480 Mbps with mass storage acceleration.
• Driverless Operation — Requires no drivers with Windows, macOS, or Linux for most devices.
• Single-Gang Wall Plate — Installs in a standard single-gang opening with a black finish.
• USB Powered — Drawn from the connected USB host interface.

Typical Applications

• Conference Rooms — Connects a room PC or codec to remotely located USB peripherals.
• Classrooms — Extends an instructor host to a wall plate serving keyboards, cameras, or whiteboards.
• Control Rooms — Routes a host to multiple device endpoints across a building.
• DigitalMedia Systems — Adds USB host connectivity alongside extended video and audio.

Technical Specifications

Frequently Asked Questions

What does the DM-NUX-L2-1G-B connect to?
It is the local (host-side) module and connects to a single USB host such as a PC, media server, or codec. It pairs with a DM-NUX-R2 remote module to form a working link.

Is a remote module included?
No. The local and remote endpoints are sold individually. A complete system requires at least one DM-NUX-L2 and one DM-NUX-R2.

What cabling is required?
Use high-quality solid-core CAT5e or better cable, up to 330 ft (100 m) aggregate between endpoints, with a 6 ft (1.8 m) minimum. Endpoints can also connect across a Layer 2 Ethernet network.

Does it require drivers?
No. It is plug-and-play with Windows, macOS, and Linux for most USB 1.1 and 2.0 devices.

What warranty and support apply?
This product carries the Crestron 3-year limited warranty. For configuration and purchasing assistance, Contact Creation Networks.
