Crestron 4K 2x1 DM® Essentials Scaling Auto-Switcher and Wall Plate Extender over CATx Cable (White) - DM-EXT-1021-1G-W KIT

Product Overview

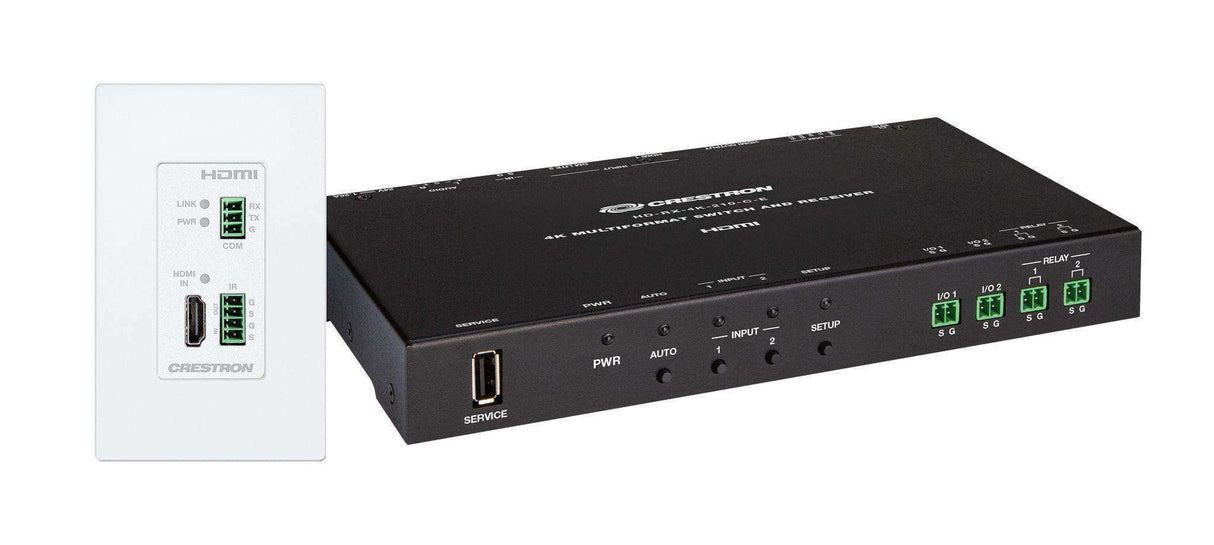

The Crestron DM-EXT-1021-1G-W KIT is a 4K 2x1 DM Essentials scaling auto-switcher and wall plate extender that distributes HDMI video over a single CATx cable for classrooms and meeting spaces. The kit pairs a white single-gang wall plate transmitter with a surface-mountable scaling receiver, extending video, audio, and power over CAT5e or higher cable. The receiver includes a 4K scaler and onboard control ports for direct display management. It is the white-finish version of the kit, matching light-colored wall plates and surrounds.

Product Description

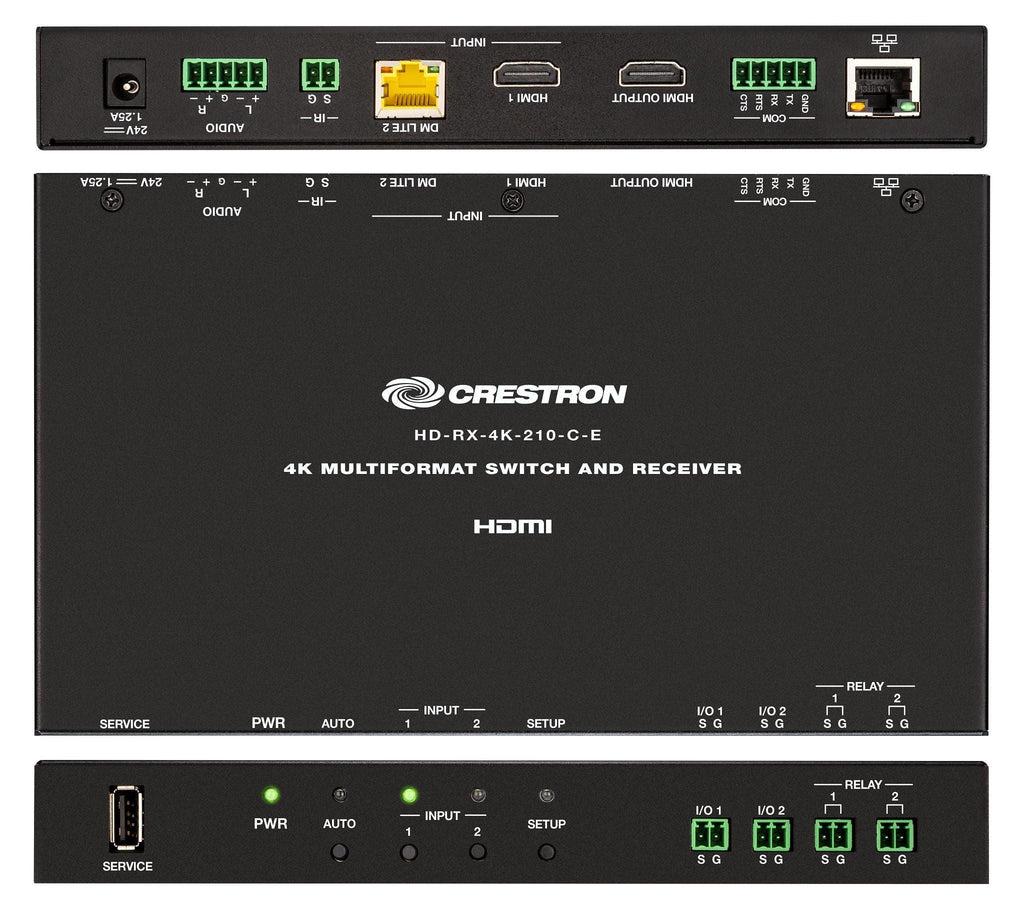

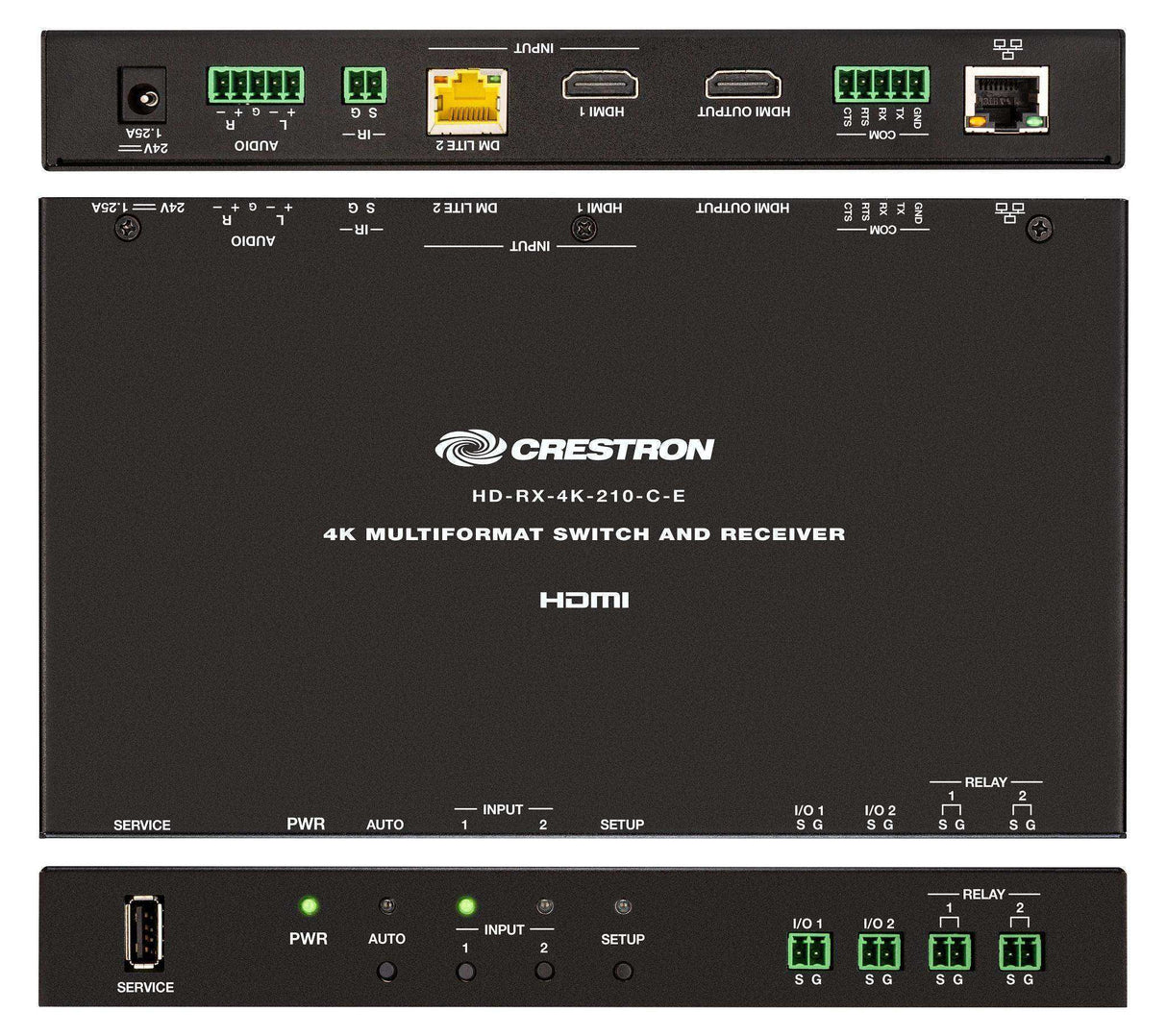

The DM-EXT-1021-1G-W KIT consists of an HD-TXC-4KZ-101-1G-W white wall plate transmitter and an HD-RX-4K-210-C-E surface-mountable receiver, providing a cost-effective multimedia presentation solution. The transmitter accepts one HDMI input at a 1-gang wall plate location, while the receiver adds a second HDMI input for a local source or an optional media presentation wall plate, yielding 2x1 auto-switching. Power is transmitted over the CATx cable from the receiver to the transmitter, so only the receiver power pack is required. For resolutions up to 2K the maximum transmission distance is 230 ft (70 m), and for higher resolutions up to 4K it is 130 ft (40 m). The receiver provides a single HDMI output with a built-in 4K scaler that matches the native resolution of the connected display, supporting input resolutions up to 4K60 4:2:0. Audio de-embedding feeds a stereo analog line-level output to amplified speakers or a sound bar. Onboard COM (RS-232), IR, relay, and Versiport I/O ports plus CEC over HDMI enable display and equipment control with or without a control system. The kit supports EDID and HDCP 2.2 management, a built-in web interface, .AV Framework technology, XiO Cloud service, and native integration with Cisco Webex and Touch 10 devices. A black-finish version is also available, the DM-EXT-1021-1G-B KIT. For specifications not listed here, refer to the Crestron data sheet.

Key Features

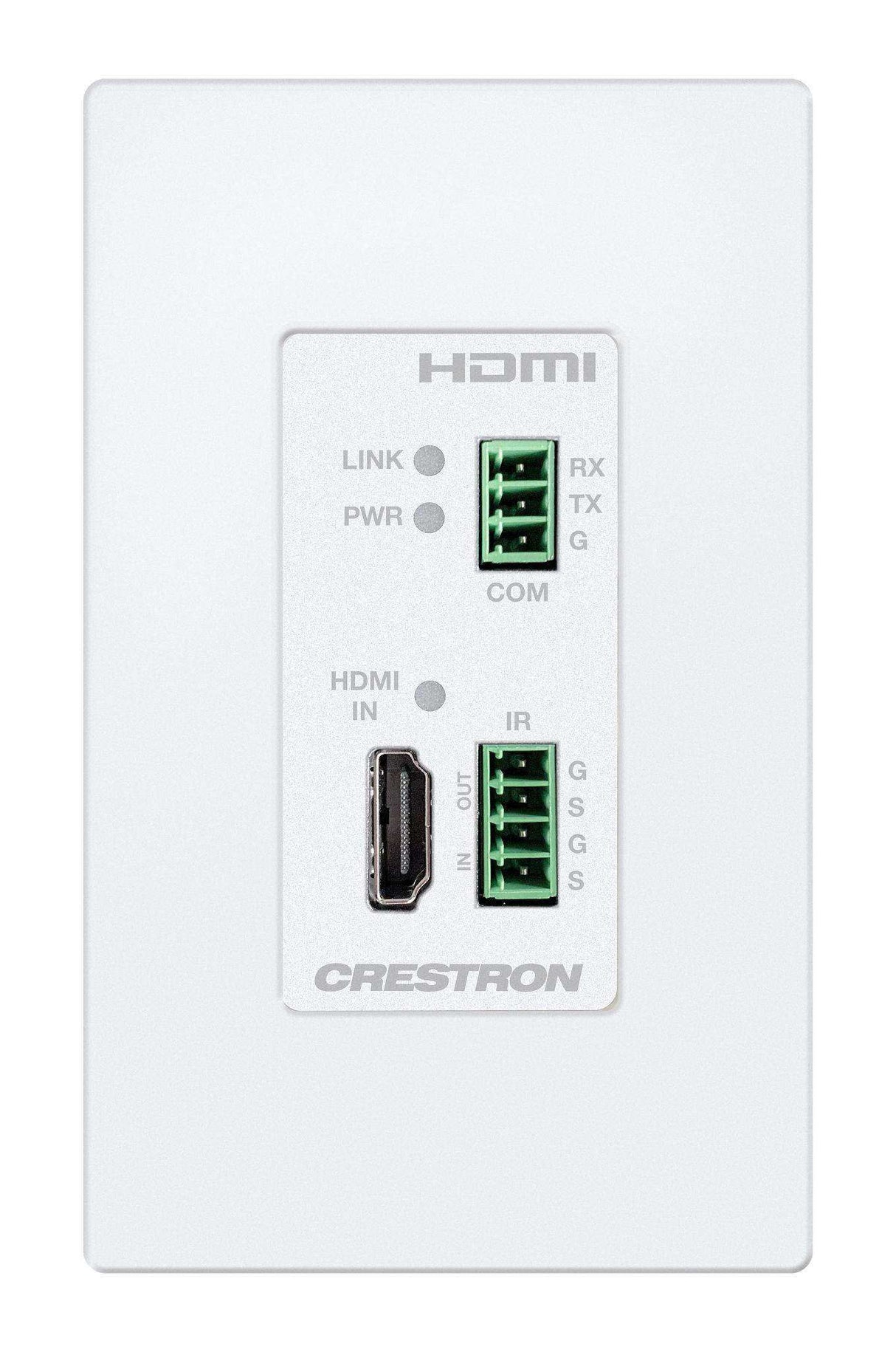

• Wall Plate Transmitter Plus Receiver — Includes an HD-TXC-4KZ-101-1G-W white 1-gang wall plate transmitter and an HD-RX-4K-210-C-E surface-mountable receiver.
• 2x1 Auto-Switching — One HDMI input on the transmitter and one on the receiver, with automatic or manual selection.
• Built-In 4K Scaler — The receiver HDMI output scales input resolutions to the display native resolution, up to 4K60 4:2:0.
• Power over CATx — The receiver power pack powers both units across the CATx cable, requiring no transmitter power supply.
• Extended Reach — Up to 230 ft (70 m) for resolutions to 2K and up to 130 ft (40 m) for higher resolutions to 4K.
• Audio De-Embedding — Analog stereo line-level output extracts two-channel audio for amplified speakers or a sound bar.
• Onboard Device Control — COM (RS-232), IR, relay, and Versiport I/O ports plus CEC over HDMI for display control.
• HDCP 2.2 and EDID Management — Maintains content protection and consistent display compatibility.
• Cisco Integration — Native integration with Cisco Webex and Touch 10 devices without control system programming.

Typical Applications

• Classrooms extending a wall plate HDMI source to a projector or display.
• Meeting rooms requiring a discreet 1-gang wall plate input with single-cable distribution.
• Huddle spaces integrating with Cisco Webex and Touch 10 codecs.
• Lecterns and podiums distributing HDMI with onboard display control.

Technical Specifications

Frequently Asked Questions

What does the kit include?
The DM-EXT-1021-1G-W KIT includes an HD-TXC-4KZ-101-1G-W white 1-gang wall plate transmitter and an HD-RX-4K-210-C-E surface-mountable scaling receiver.

Does the transmitter need its own power supply?
No. Power is transmitted over the CATx cable from the receiver, and the included receiver power pack powers both units.

What is the maximum resolution?
The kit supports input resolutions up to 4K60 4:2:0, with a built-in scaler on the receiver HDMI output. A decorator faceplate (FP-G Series) is sold separately for the transmitter.

Is a black version available?
Yes. The black-finish DM-EXT-1021-1G-B KIT is available for dark wall plate installations.

What is the warranty?
Crestron provides a 3-year limited warranty. For design assistance or ordering, Contact Creation Networks.
