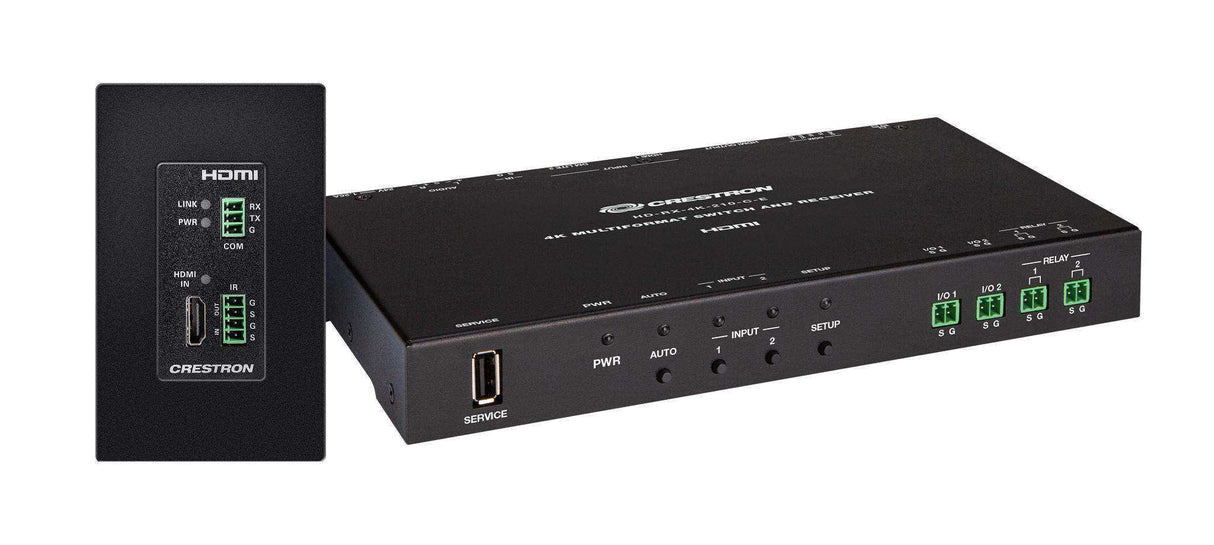

Crestron 4K 2x1 DM® Essentials Scaling Auto-Switcher and Wall Plate Extender over CATx Cable (Black) - DM-EXT-1021-1G-B KIT

Crestron SKU: DM-EXT-1021-1G-B KIT
No reviews

Price:
Sale price$1,920.00

Description

The DM‑EXT‑1021‑1G KIT provides a cost-effective multimedia presentation solution for classrooms and meeting spaces. Consisting of a wall plate transmitter (HD‑TXC‑4KZ‑101‑1G[-W/B]) and surface-mountable receiver (HD‑RX‑4K‑210‑C‑E), the kit extends an HDMI® signal over a CATx (CAT5e or higher) twisted pair cable. For resolutions up to 2K, the maximum transmission distance is 230 ft (70 m). For higher resolutions up to 4K, the maximum transmission distance is 130 ft (40 m).1

NOTE: Power is transmitted over the CATx cable that connects the transmitter to the receiver. The transmitter provides one HDMI input. The receiver provides an additional HDMI input that can be connected to a local AV source or to an optional Crestron media presentation wall plate (MP‑WP152, sold separately).

The DM‑EXT‑1021‑1G KIT is available in two models, the DM‑EXT‑1021‑1G‑B KIT and DM‑EXT‑1021‑1G‑W KIT. The DM‑EXT‑1021‑1G‑B KIT includes a HD‑TXC‑4KZ‑101‑1G‑B black wall plate transmitter, and the DM‑EXT‑1021‑1G‑W‑KIT includes a HD‑TXC‑4KZ‑101‑1G‑W white wall plate transmitter.

Automatic Input Switching
Automatic switching between the DM input and HDMI input on the receiver occurs based on the last connected input or on an assigned routing priority. Switching behavior is configurable using the web interface or programmable using a Crestron control system. In addition to automatic switching, input selection push buttons on the receiver enable the desired input to be selected manually.

HDMI Output with 4K Scaler
A single HDMI output with a built-in scaler connects the receiver to a display or other device with an HDMI input. Input resolutions are automatically scaled to match the native resolution of the display device, resulting in optimal image quality. For applications requiring comprehensive EDID management, the web interface is used to ensure that every input is displayed at its optimal resolution and format. Input resolutions up to 4K60 4:2:0 are supported.

Audio De-embedding
The analog audio output on the receiver extracts the stereo audio signal from digital sources to feed a sound bar, amplified speakers, or a separate sound system. The analog audio output is active only when the input is receiving a two‑channel stereo signal.

Device Control
Equipped with onboard control ports, the receiver can control various devices in a room. The COM (RS-232) port and CEC over the HDMI output enable the display device to be turned on or off automatically without the use of a control system. With the use of a control system, the IR port can also control the display device. Two relay ports are provided for controlling a projection screen and other low-voltage contact closure activated equipment. Two Versiport I/O ports enable the integration of devices such as power sensors and motion detectors. An Ethernet port connection to a LAN also provides control by enabling use of the built-in web interface as well as connection to a control system.

NOTE: The COM, IR, and Ethernet ports cannot be used to extend signals over the CATx cable connection between the receiver and the transmitter.

USB Power Port
A USB power port is included on the transmitter to power USB devices (500mA maximum).

  • 4K60 video with 4:2:0 color sampling
  • 1-gang wall plate transmitter and surface-mountable receiver with 2x1 AV switching, scaling, and signal extension functionality
  • One HDMI® input on the transmitter
  • One HDMI input and one 4K HDMI scaling output on the receiver
  • Automatic input switching
  • Video, audio, and power extension over a CATx cable - up to 230 ft (70 m) for resolutions up to 2K or up to 130 ft (40 m) for higher resolutions up to 4K
  • EDID and HDCP 2.2 management
  • Consumer Electronics Control (CEC) capability
  • Stereo audio de-embedding via analog audio output
  • IR, RS-232, relay, and I/O control ports
  • USB power port
  • Built-in web interface for easy configuration and monitoring
  • Compatible with Crestron® 3-Series® control systems or later
  • .AV Framework™ technology support
  • XiO Cloud® service support
  • Native integration with Cisco® Webex® and Touch 10 devices
  • Low-profile installation
  • 100-240VAC power pack included
Video
Switcher 2x1 (1 input at transmitter plus 1 input at receiver x 1 output at receiver) auto-switching or manual, audio-follows-video, Crestron Auto‑Locking® and QuickSwitch HD™ technology
Scaler, HDMI Output 4K video scaler with intelligent frame rate conversion, Deep Color support, content adaptive noise reduction, 3:2/2:2 pull-down detection and recovery
Input Signal Type HDMI with Deep Color and 4K (DVI and Dual-Mode DisplayPort™ interface compatible2)
Output Signal Type HDMI with Deep Color and 4K (DVI compatible3)
Copy Protection HDCP 2.2
Maximum Resolutions Common resolutions are listed in the following table.
Scan Type Resolution Frame Rate Color Sampling Color Depth
Progressive 4096x2160 DCI 4K & 3840x2160 4K UHD 24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
60 Hz 4:2:0 24 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD
1080p
60 Hz 4:4:4 36 bit
NOTES:
  • Common resolutions are supported at pixel clock rates up to 300 MHz.
  • Interlaced video sources are not supported.
Audio
Input Signal Type HDMI (Dual-Mode DisplayPort interface compatible2)
Output Signal Type HDMI, analog stereo line-level
Digital Formats 2-channel LPCM
Digital to Analog Conversion 24-bit, 48 kHz
Output Volume -80 to +20 dB level adjustment range;
Independent mute for HDMI and analog audio outputs
Analog Output Performance Frequency Response: 20 Hz to 20 kHz ±0.5 dB;
S/N Ratio: >95 dB @ 10 dBV, 20 Hz to 20 kHz, A-weighted;
THD+N: <0.005% @ 1 kHz and 10 dBV;
Stereo Separation: 20 Hz to 20 kHz ≤80 dB
Communications
Ethernet 100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, CIP, DHCP, web browser setup and control
RS-232 Two way device control and monitoring up to 115.2k baud;
Hardware and software handshaking
IR One way device control via infrared up to 60 kHz
HDMI HDCP 2.2, EDID, CEC
DM HDCP 2.2, EDID
Connectors - Transmitter (HD‑TXC‑4KZ‑101-1G)
24 VDC 0.75A (1) 2.1 x 5.5 mm DC power connector;
24VDC power input;
Power pack not included

NOTE: The power pack included with the receiver will power both units. Do not connect both power packs at once.
DM (1) 8-pin RJ-45 connector, female, shielded;
DM output port for connection to the receiver1
HDMI IN (1) HDMI Type A connectors, female;
HDMI digital video/audio input;
DVI and Dual-Mode DisplayPort interface compatible2
COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Supports RS-232 up to 115.2k baud;
Hardware and software handshaking
IR IN/OUT (1) 4-pin 3.5 mm detachable terminal block;
Comprised of (1) IR input port and (1) IR output port;
IR IN is for connection from a Crestron IR control port or other IR signal source and passes the IR input signal to the IR OUT port on the HD‑RX‑4K‑210‑C‑E receiver;
IR OUT is for connection to an IR emitter (IRP2, sold separately) and transmits the IR signal from the IR IN port on the HD‑RX‑4K‑210‑C‑E receiver;
Supports IR up to 60 kHz

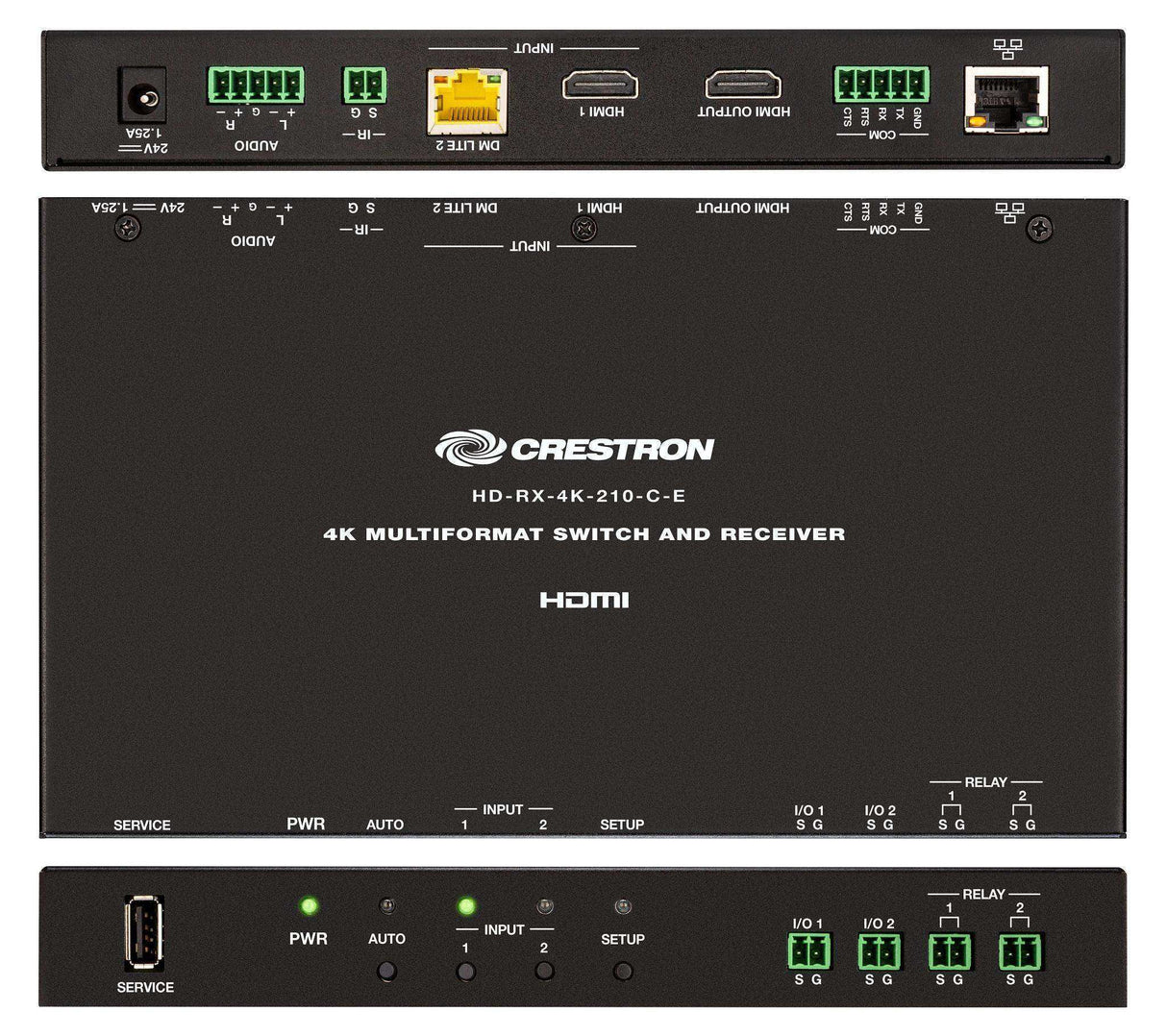

Connectors - Receiver (HD‑RX‑4K‑210‑C‑E)
HDMI INPUT 1 (1) HDMI Type A connector, female;
HDMI digital video/audio input;
DVI and Dual-Mode DisplayPort interface compatible2
DM INPUT 2 (1) 8-pin RJ-45 yellow connector, female, shielded;
DM link port for connection to the HD‑TX‑4KZ‑101 transmitter1
HDMI OUTPUT (1) HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible3)

NOTE: CEC over the HDMI output provides Power On/Off control of the display device without a control system or full programmable control of any device with a control system.
AUDIO L/R (1) 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line-level audio output;
Maximum Output Level: 4Vrms balanced, 2Vrms unbalanced;
Output Impedance: 200Ω balanced, 100Ω unbalanced
Ethernet (1) 8-pin RJ-45 connector, female;
100BASE-TX/1000BASE-T Ethernet port
I/O 1-2 (2) 2-pin detachable terminal blocks;
Comprised of 2 Versiport digital input/output or analog input ports (referenced to GND);
Digital Input: Rated to 0-24VDC, input impedance 20kΩ, logic threshold >3.125V low/0 and <1.875V high/1;
Digital Output: 250 mA sink from maximum 24VDC, catch diodes for use with real world loads;
Analog Input: Rated for 0-10VDC, protected to 24VDC maximum, input impedance 21kΩ with pull-up resistor disabled;
Programmable 5V, 2kΩ pull-up resistor per pin
RELAY 1-2 (2) 2-pin detachable terminal blocks;
Comprised of 2 normally open, isolated relays;
Rated 1A, 30VAC/VDC;
MOV arc suppression across contacts
IR (1) 2-pin 3.5 mm detachable terminal block;
IR output control port;
Supports IR up to 60 kHz;
IRP2 emitter sold separately

NOTE: The IR port provides Power On/Off control of the display device with the use of a control system.
COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Supports RS-232 up to 115.2k baud;
Hardware and software handshaking

NOTE: The COM port provides Power On/Off control of the display device without a control system or full programmable control of any device with a control system.
24 VDC 1.25A (1) 2.1 x 5.5 mm DC power connector;
24VDC power input;
PW-2412WU power pack included

NOTE: The power pack included with the receiver will power both units. Do not connect both power packs at once.
SERVICE (1) USB Type A connector, female;
For factory use only

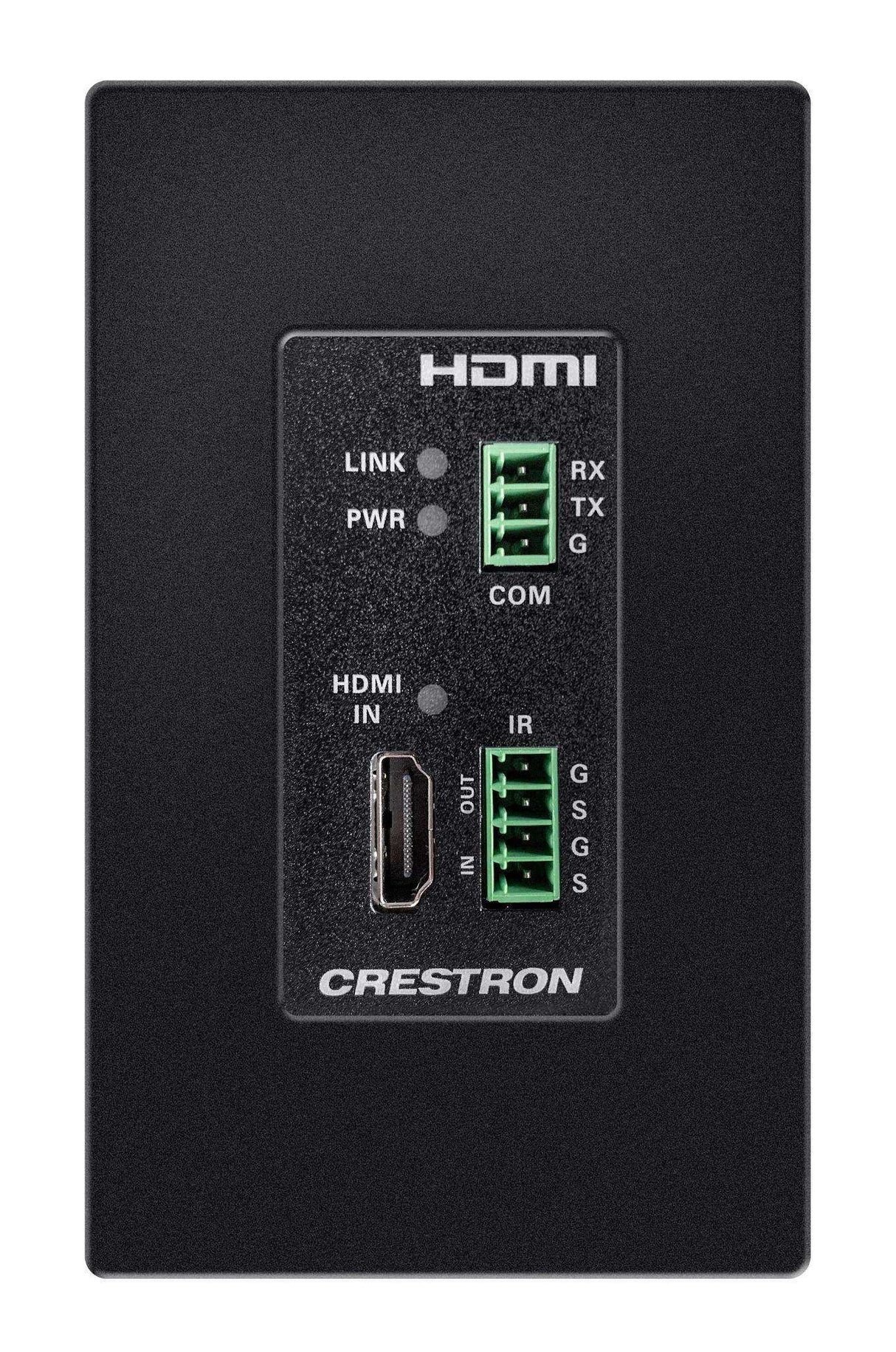

Controls and Indicators - Transmitter (HD‑TXC‑4KZ‑101-1G)
LINK (1) Green LED, indicates that DM link is established.
PWR (1) Green/amber bi-color LED;
Amber indicates that the device is booting;
Green indicates that the device is operational
HDMI IN (1) Green LED, indicates that the device is receiving an HDMI signal
DM OUT (2) LEDs on RJ‑45 connector, one green and one amber;
Green indicates that DM link is established;
Flashing amber indicates non‑HDCP video;
Solid amber indicates HDCP video
Controls and Indicators - Receiver (HD‑RX‑4K‑210‑C‑E)
PWR (1) Green/amber bi-color LED;
Amber indicates that the device is booting;
Green indicates that the device is operational
INPUT 1-2 (2) Push buttons for manual input selection and (2) LEDs;
Green indicates that video source is selected;
Amber indicates that video is detected but source is not selected
AUTO (1) Push button to enable or disable automatic switching;
(1) LED, green indicates that automatic switching is enabled
SETUP (1) Red LED and (1) push button for display of IP address on the HDMI output
DM (2) LEDs on RJ-45 connector, one green and one amber;
Green indicates that DM link is established;
Flashing amber indicates non-HDCP video;
Solid amber indicates HDCP video
Ethernet (2) LEDs on RJ-45 connector, one green and one amber;
Green indicates that Ethernet link is established;
Flashing amber indicates Ethernet activity
Power
Power Pack (included with Receiver) Input: 100-240VAC;
Output: 24VDC 2.5A;
Models: PW-2412WU

NOTE: The power pack included with the receiver will power both units. Do not connect both power packs at once.
Power Consumption 14.8 W typical
