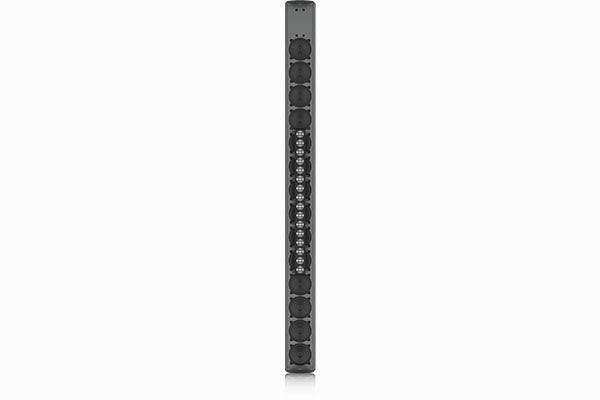

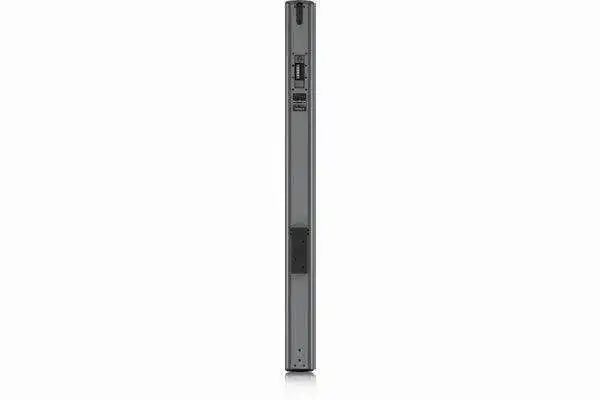

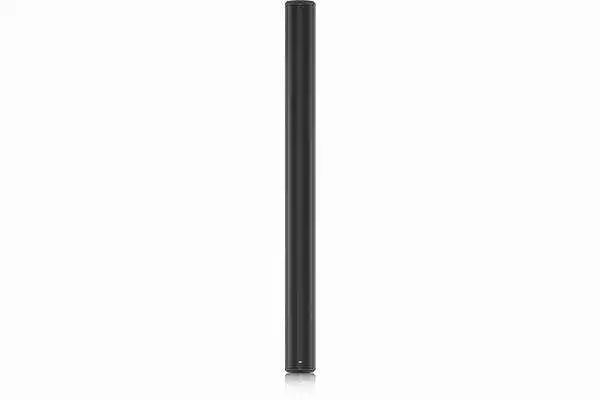

Tannoy VLS 30 Passive Column Array Loudspeaker (Black) - TA-VLS30-BK

TannoySKU: TA-VLS30-BK
No reviews

Price:
Sale price$1,799.00

Description

The VLS 30 is an 1600-Watt passive column array loudspeaker ideally suited for challenging acoustic and architecturally sensitive spaces where background/foreground music and speech reinforcement is required. Applications include airports, train stations, conference centers, houses of worship, stadium concourses, museums, theme parks and hotels. The heart of the loudspeaker system is its asymmetrical vertical dispersion, which gently shapes the acoustic coverage towards the lower quadrant of the vertical axis. VLS 30’s Focused Asymmetrical Shaping Technology™ (FAST) also facilitates quick and easy installation, with less need for tilting for optimal mounting. VLS 30 packages this performance in a slender and narrow profile, aesthetically refined, powder coated aluminum chassis with curved stainless steel grille.




  • Passive column array loudspeaker for indoor and outdoor installation applications

  • 400 Watts continuous, 1,600 Watts peak power

  • 14 vertically arrayed 3.5" low frequency drivers provide high intelligibility speech reproduction

  • 16 vertically arrayed 1" high frequency metal dome tweeters for full range sound up to 35 kHz

  • FAST (Focussed Asymmetrical Shaping Technology) delivers asymmetric vertical dispersion towards the typical listening plane

  • Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input

  • Low insertion loss 150 W line transformer with easily accessible tapping switch

  • All components weather resistant to IP65 for outdoor use

  • Architecturally styled aluminium enclosure with a semi matt white painted finish

  • Corrosion resistant stainless steel perforated grille

  • Included custom brackets allow quick and accurate installation

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.

Data Sheet

System
Frequency response

120 Hz - 22 kHz ±3 dB
90 Hz - 35 kHz -10 dB

Horizontal dispersion (-6 dB)

130° H

Vertical dispersion (-6 dB)

+3° / -11° V (-4° bias)

Power handling (IEC)

400 W average, 800 W continuous,
1600 W peak

Recommended amplifier power

1200 W @ 4 Ω

System sensitivity

94 dB (1 m, Lo Z)

Sensitivity (per EN54-24)

Nominal impedance (Lo Z)

6 Ω

Maximum SPL (per EN54-24)

Rated maximum SPL

120 dB continuous, 126 dB peak (1 m, Lo Z)

Crossover

Passive, utilizing Focussed Asymmetrical
Shaping Technology (FAST)

Crossover point

2.5 kHz

Directivity factor (Q)

15 averaged, 1 kHz to 10 kHz

Directivity index (DI)

11.8 average, 1 kHz to 10 kHz

Components

14 x 3.5" (89 mm) woofers
16 x 1" (25 mm) metal dome tweeters

Transformer taps (via rotary switch) (Rated noise power and impedance)
70 V

150 W / 75 W / 37.5 W /
19 W / 9.5 W / 5 W /
OFF & low impedance operation

100 V

150 W / 75 W / 37.5 W / 19 W / 9.5 W /
OFF & low impedance operation

Coverage angles
500 Hz

220° H x 41° V

1 kHz

200° H x 21° V

2 kHz

120° H x 17° V

4 kHz

120° H x 20° V

Enclosure
Connectors

Barrier strip

Wiring

Terminal 1+ / 2- (input); 3- / 4+ (link)

Dimensions H x W x D

1461 x 121 x 147 mm (57.5 x 4.8 x 5.8")

Net weight

19 kg (41.8 lbs)

Construction

Aluminium extrusion

Finish

Paint RAL 9003 (white)
Custom RAL colours available
(additional cost and lead-time)

Grille

Powder coated perforated steel

Flying hardware

Flying bracket, wall mount bracket,
input panel cover plate and gland
