Barco GC Lens (1.02 1.36 1) - R9802182

Product Overview

The Barco R9802182 GC lens is a short-throw motorized zoom lens for the Barco G-series, specifically the G100 installation projectors. With a 1.02-1.36:1 throw ratio optimized for WUXGA, it places the projector close to the screen, making it well suited to shallow rooms, tight rigging positions and large images at short distances. It is the short-throw member of the GC lens line, complementing longer-throw siblings on the same projector bodies. Motorized zoom and focus allow framing from the projector controls.

Product Description

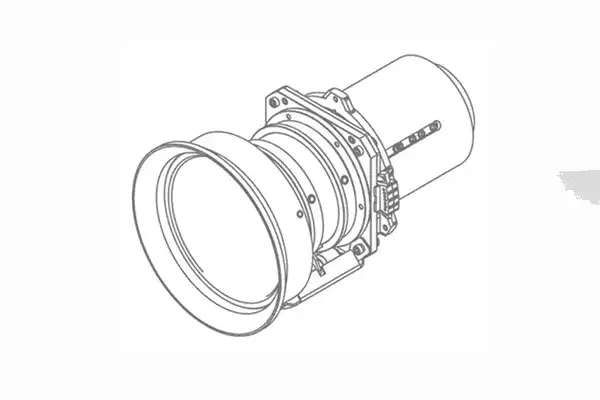

The R9802182 is part of Barco's GC lens range for the G100 platform. It offers a 21.5-28.7mm focal length, a working aperture of f/2.0 (wide) to f/2.3 (tele) and a 1.33x zoom ratio, with a throw distance from 1.10 to 14.65 m and a focus range of 50 to 500 inches. Motorized zoom and focus pair with motorized lens shift (vertical +/-82, horizontal +/-30); note that this short-throw lens does not support the lens memory feature. The product image shows the wide 120 mm front element typical of short-throw optics. For longer placement on the same projectors, see the GC lens 1.5-2.0:1, and browse the full Barco collection for compatible G100 projectors.

Key Features

• Short-throw 1.02-1.36:1 ratio — optimized for WUXGA, for projectors placed close to the screen.
• Motorized zoom and focus — 1.33x zoom controlled from the projector interface for accurate setup.
• Motorized lens shift — vertical +/-82 and horizontal +/-30 shift for flexible mounting without keystone.
• f/2.0-2.3 aperture — high-quality short-throw optics matched to G100 light output.
• Compact and light — about 2.0 kg net, easy to handle during installation.
• Short throw distance — 1.10 to 14.65 m supports large images in shallow rooms.
• G100 compatibility — designed for the Barco G100 series installation projectors.

Typical Applications

• Shallow rooms and tight rigging positions needing a large image at short distance.
• Fixed installations using Barco G100 series projectors.
• Houses of worship and corporate spaces where the projector must sit near the screen.
• Immersive and museum environments with short projector-to-screen geometry.

Technical Specifications

Frequently Asked Questions

Which Barco projectors does the R9802182 fit? It is designed for the Barco G100 series installation projectors.

What is the throw ratio? The throw ratio is 1.02-1.36:1, a short throw optimized for WUXGA resolution.

Does it support lens memory? No. This short-throw GC lens has motorized zoom and focus but does not support the lens memory feature.

How close can the projector be to the screen? Throw distance ranges from about 1.10 to 14.65 m, allowing the projector to sit close to the screen for a given image size.
