Barco GC LENS (1.5 - 2.0 : 1) - R9802184

Product Overview

The Barco R9802184 GC lens is a motorized zoom lens for the Barco G-series, specifically the G100 installation projectors such as the G100-W19, G100-W22 and G100-W25. With a 1.5-2.0:1 throw ratio optimized for WUXGA, it covers standard mid-room placement in fixed installations and immersive environments. The lens carries lens memory for zoom and focus, making it a practical choice for venues that switch between screen sizes or content formats. It positions the projector a moderate distance from the screen for typical auditorium and corporate geometry.

Product Description

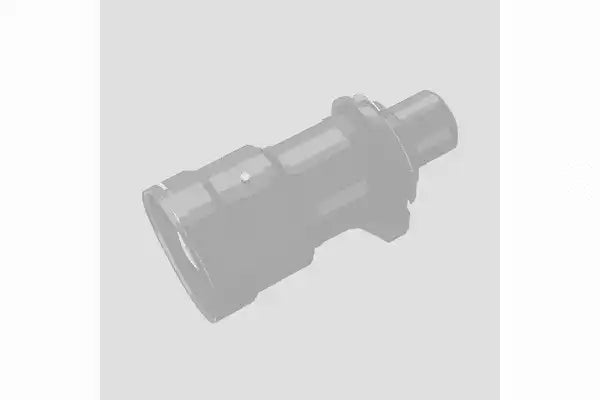

The R9802184 belongs to Barco's GC lens line for the G100 platform. It offers a 31.8-42.1mm focal length, a working aperture of f/2.0 (wide) to f/2.2 (tele) and a 1.33x zoom ratio, with a throw distance from 1.64 to 21.75 m and a focus range of 50 to 500 inches. Motorized zoom and focus combine with lens memory and motorized lens shift (vertical +/-120, horizontal +/-50) for precise, repeatable framing from the projector controls. The product image shows the lens body and 97 mm front element. For wider placement on the same projectors, consider the shorter-throw GC lens options; browse the full Barco collection for compatible G100 projectors and sibling lenses to match your room.

Key Features

• 1.5-2.0:1 throw ratio — optimized for WUXGA and suited to standard mid-room projector placement.
• Motorized zoom and focus — 1.33x zoom controlled from the projector interface for fast, accurate setup.
• Lens memory — zoom and focus positions are stored and recalled for different screen sizes or content.
• Motorized lens shift — vertical +/-120 and horizontal +/-50 shift for flexible mounting without keystone.
• f/2.0-2.2 aperture — bright, high-quality optics matched to G100 light output.
• Wide throw distance range — 1.64 to 21.75 m covers a broad span of room depths.
• G100 compatibility — designed for G100-W19, G100-W22 and G100-W25 installation projectors.

Typical Applications

• Fixed installations using Barco G100 series projectors.
• Auditoriums and corporate presentation rooms with standard mid-room geometry.
• Houses of worship and higher-education venues running G-series projection.
• Immersive and simulation environments where lens memory aids reconfiguration.

Technical Specifications

Frequently Asked Questions

Which Barco projectors does the R9802184 fit? It is designed for the Barco G100 series, including the G100-W19, G100-W22 and G100-W25.

What is the throw ratio? The throw ratio is 1.5-2.0:1, optimized for WUXGA resolution.

Does it have lens memory? Yes. Zoom and focus are motorized with lens memory, so positions can be stored and recalled for different screen configurations.

How far can the projector sit from the screen? Throw distance ranges from about 1.64 to 21.75 m depending on image size and projector model.
