Cisco Room Vision PTZ Ceiling-Wall Mount, Arctic White - CS-CAM-RVPTZ-CBKL

Product Overview

CS-CAM-RVPTZ-CBKL is the multi-purpose ceiling or wall mounting bracket for the Cisco Room Vision PTZ camera in Arctic White, finished to match the camera. Unlike the wall-only bracket, it mounts on either surface and accommodates both Ethernet and HDMI-based deployments, with concealed cable routing and safety hardware. All Room Vision PTZ mounting options are ordered separately from the main unit, so this is a line item on the quote rather than something in the camera carton.

Product Description

Three situations point to this bracket rather than the wall-only one. The first is a ceiling position, common in rooms with glass walls, full-height millwork or a seating layout that leaves no usable wall at camera height. The second is a room that may be reconfigured later, where a bracket that does either surface is worth the difference in cost. The third is an installation carrying HDMI as well as the PoE+ Ethernet run, which the slim wall-only bracket is not built to route. Cable routing is concealed and safety hardware is included, which matters more overhead than it does on a wall.

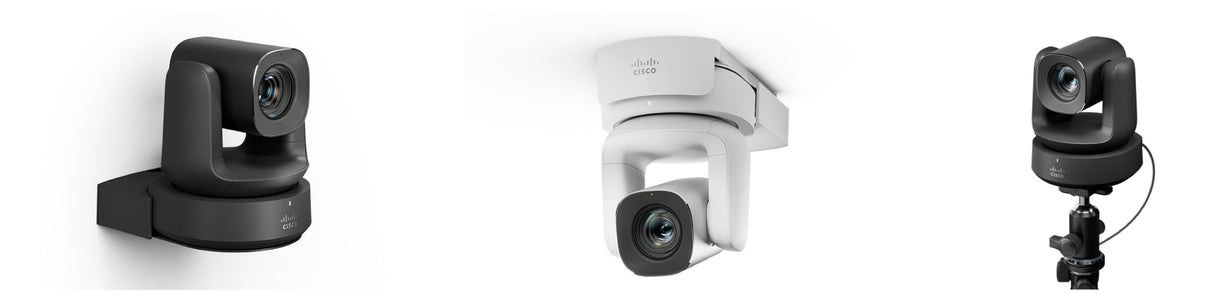

The two configurations have different numbers, and an estimator needs both. On a wall, the bracket weighs 1.19 kg and camera plus bracket occupy 165 x 200 x 250 mm. On a ceiling, the bracket weighs 2.06 kg and the assembly occupies 165 x 216 x 262 mm, so the camera hangs roughly 216 mm below the ceiling plane. That ceiling drop is the figure to check against sprinkler heads, lighting and any suspended element in the same bay. Add the 2.3 kg camera to the bracket weight for the hanging load, and confirm the anchor point is structure rather than tile. As with the wall-only bracket, choose the mount before the cable is pulled, because it sets where the Cat5e terminates. Buyers speccing a whole room rather than a single camera usually start from the Cisco Room Kit EQ Vision PTZ instead, and the rest of the range sits in the Cisco room device catalog.

Key Features

• Ceiling or Wall Mounting — One bracket covers both surfaces, unlike the wall-only part.
• Takes Ethernet or HDMI — Accommodates an HDMI-based deployment as well as the single PoE+ Ethernet run.
• Concealed Cable Routing — Cabling is routed inside the bracket rather than left exposed.
• Safety Hardware Included — Supplied with the hardware for an overhead installation.
• Arctic White Finish — Matches the Arctic White Room Vision PTZ camera and white ceilings.
• Documented Assembly Dimensions — Camera plus bracket is 165 x 200 x 250 mm on a wall and 165 x 216 x 262 mm on a ceiling.
