Christie DWU860-iS 8,500-Lumen WUXGA 1DLP Laser Projector - 171-030104-02
Christie DWU860-iS 8,500-Lumen WUXGA 1DLP Laser Projector - 171-030104-02 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Christie DWU860-iS 8,500-Lumen WUXGA 1DLP Laser Projector - 171-030...
What is the Christie DWU860-iS?

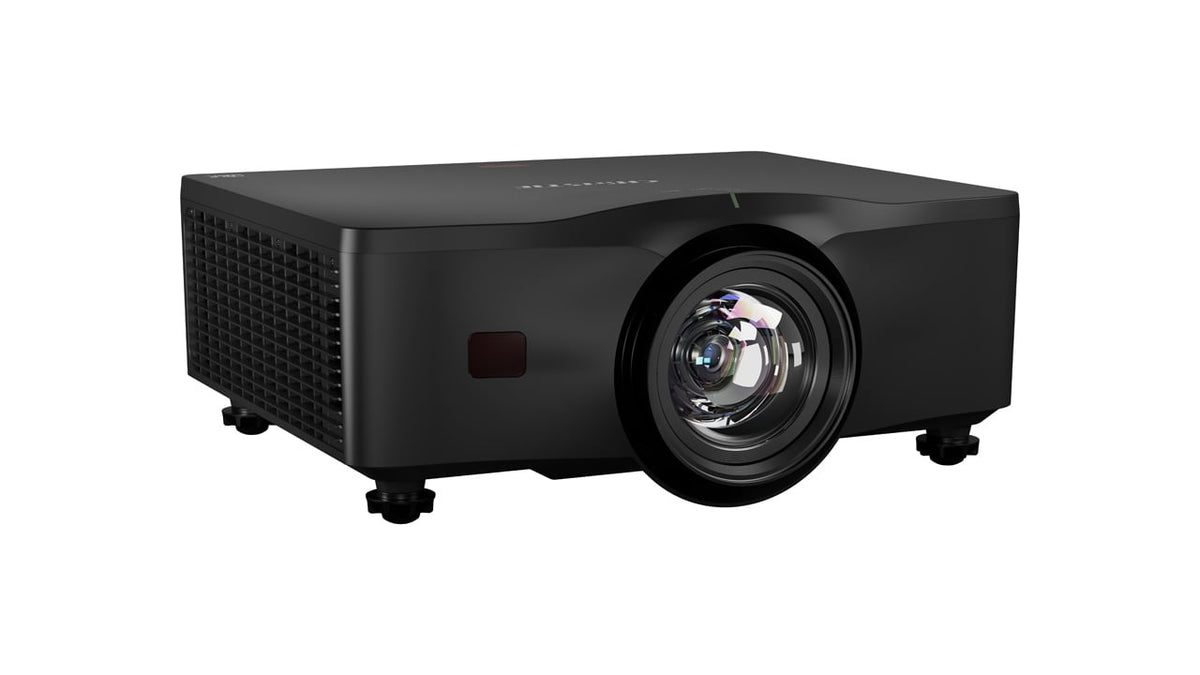

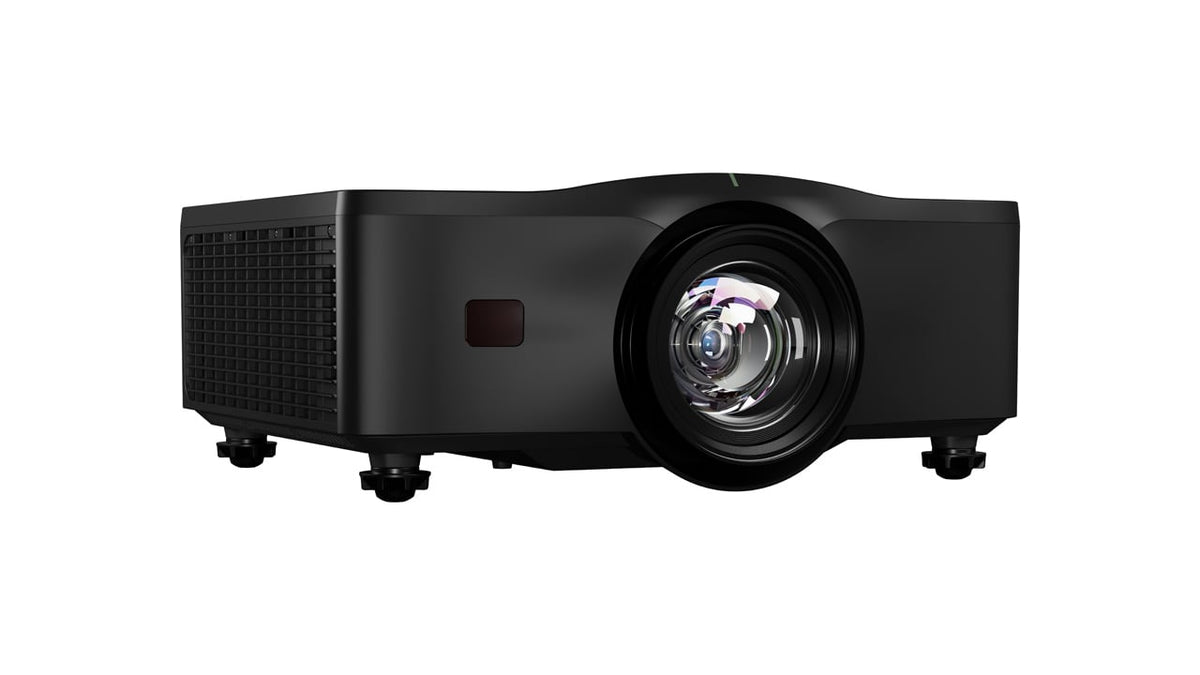

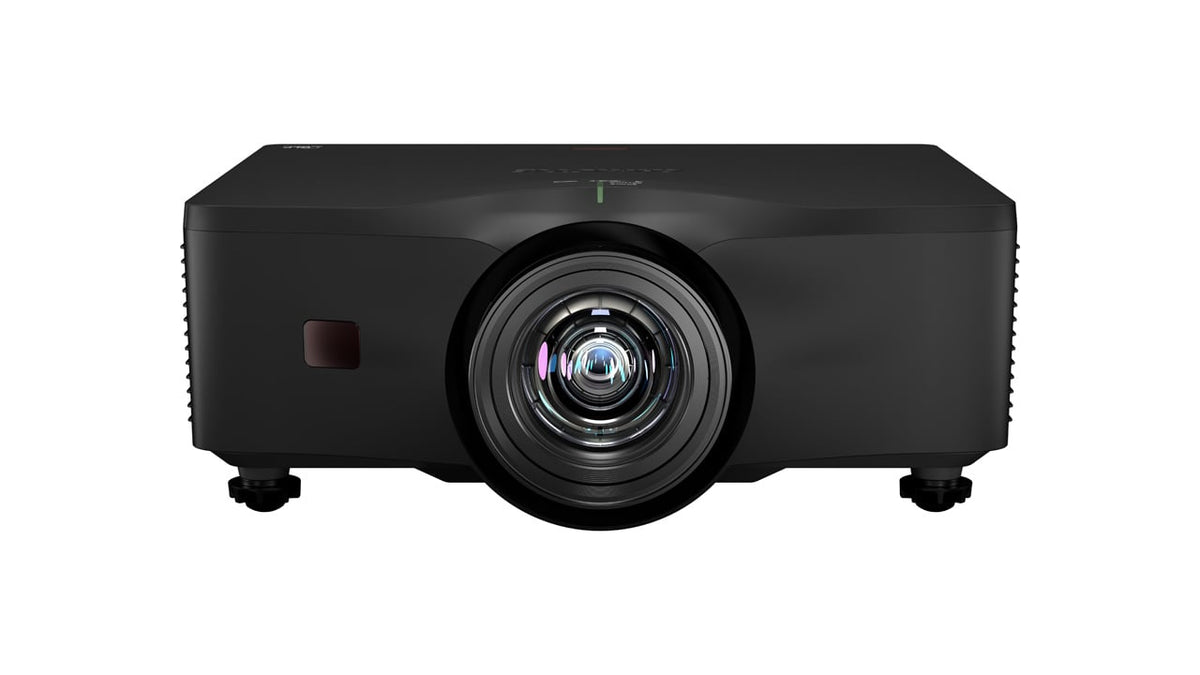

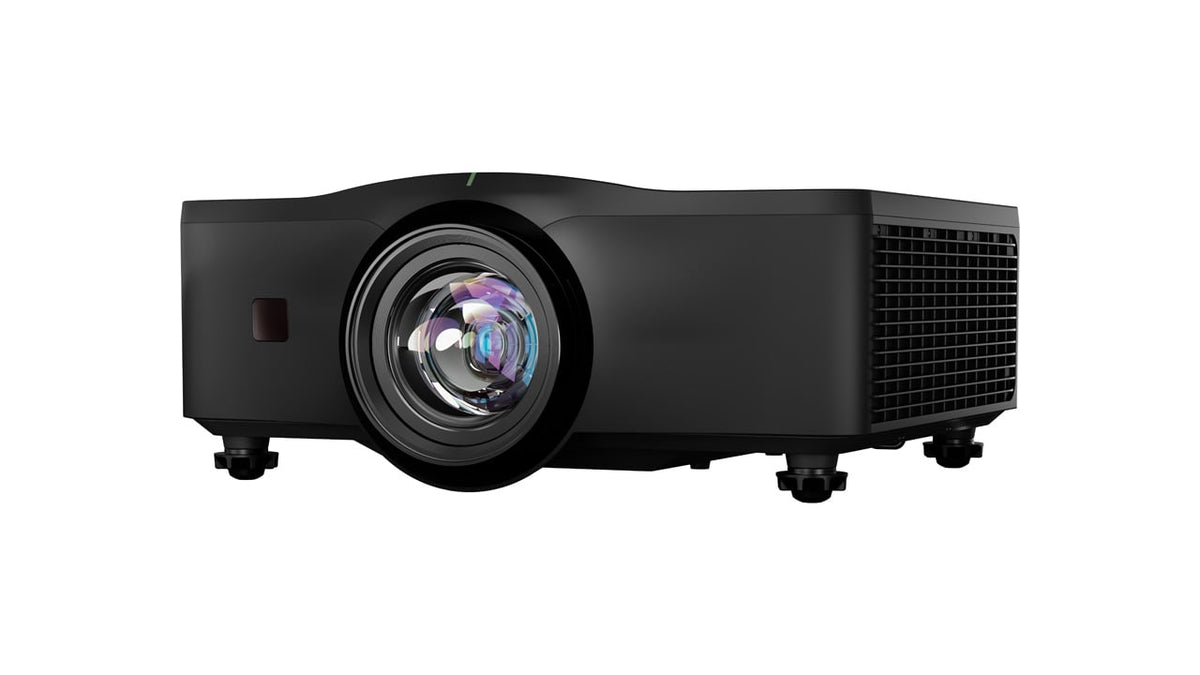

The Christie DWU860-iS is an 8,500-lumen WUXGA 1DLP laser projector from the Christie Digital Inspire Series, with a built-in motorized zoom lens. It's a professional-grade fixed-lens projector for boardrooms, classrooms, museums, and other small-to-mid-size spaces, with 24/7 operation, an IP5X dust-resistant optical engine, quiet running, and a step up in brightness over the DWU760-iS.
What is included?
Christie DWU860-iS projector with fixed motorized lens, part number 171-030104-02
IR remote control (batteries included)
Power cable
Lens cover
How does the Christie DWU860-iS work?
A single DMD and a blue laser phosphor light source replace lamps, so the projector runs up to 20,000 hours to half brightness with almost no maintenance. The airtight IP5X optical engine keeps dust off the optics, and Eco Mode cuts brightness to 50% for longer life and quieter operation. Christie RealBlack turns the laser fully off on black scenes for 3,000,000:1 contrast.
The built-in 1.25–2.0:1 (1.6x zoom) lens is adjusted from the remote with powered zoom, focus, and offset, with ±110% vertical and ±50% horizontal shift. HDBaseT carries video, audio, network, and control over one cable, and AMX and Crestron connectivity make it easy to drop into a controlled room. Christie Twist warping and blending is built in for up to six projectors, and free Christie Mystique Lite can blend up to three automatically. Browse our commercial projectors to compare models.
What are the key features of the Christie DWU860-iS?
8,500 ISO lumens (7,200 ANSI) of laser brightness.
WUXGA resolution — WUXGA 1920 x 1200 (16:10).
Motorized fixed lens — 1.25–2.0:1 (1.6x zoom), motorized zoom, focus, and offset.
IP5X dust-resistant optical engine for near-zero maintenance.
24/7 operation and omnidirectional mounting.
Christie Twist built in; Mystique Lite compatible.
Two 10W speakers with audio in and out.
Five-year warranty on -02 and later part numbers.
Where is the Christie DWU860-iS typically used?
Boardrooms and conference rooms
Classrooms and lecture halls
Museums and visitor centers
Houses of worship
Government meeting rooms and training spaces
Technical Specifications
| Brightness | 8,500 ISO lumens / 7,200 ANSI lumens |
| Resolution | WUXGA 1920 x 1200 (16:10) |
| Display | 1-chip 0.67" DMD |
| Contrast | 1,300:1 full on/off; 3,000,000:1 with RealBlack |
| Light source | Blue laser phosphor, 20,000 hours to 50% brightness |
| Lens | 1.25–2.0:1 (1.6x zoom), motorized zoom, focus, and offset |
| Lens offset | ±110% vertical, ±50% horizontal |

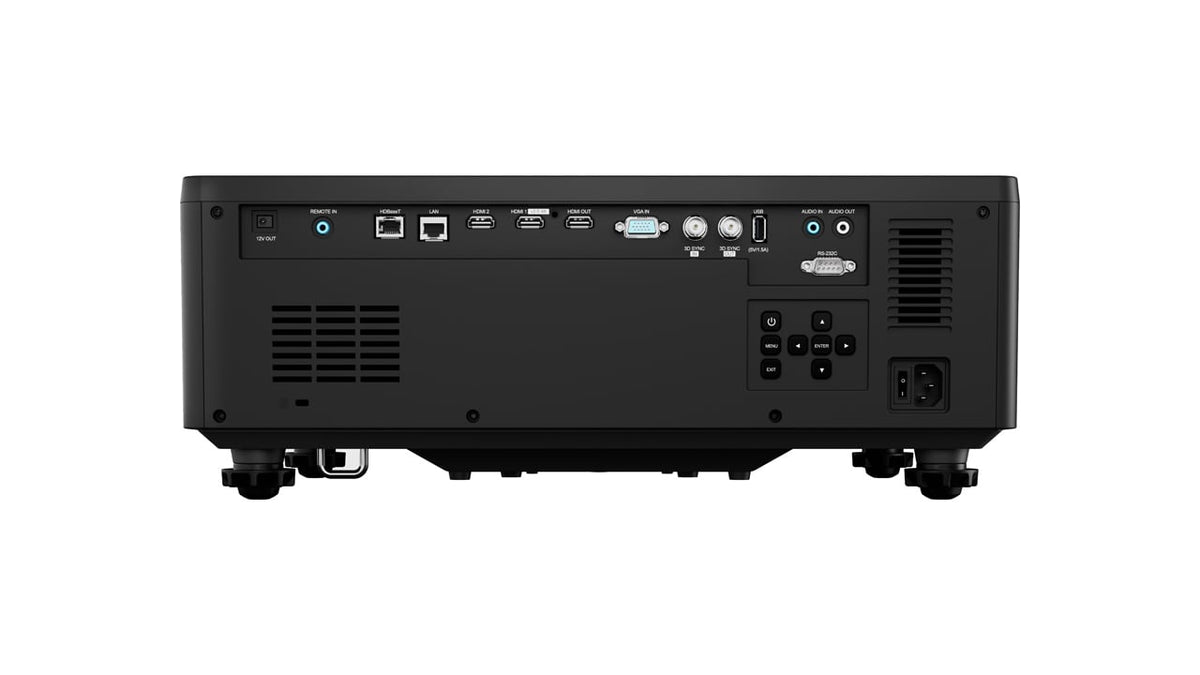

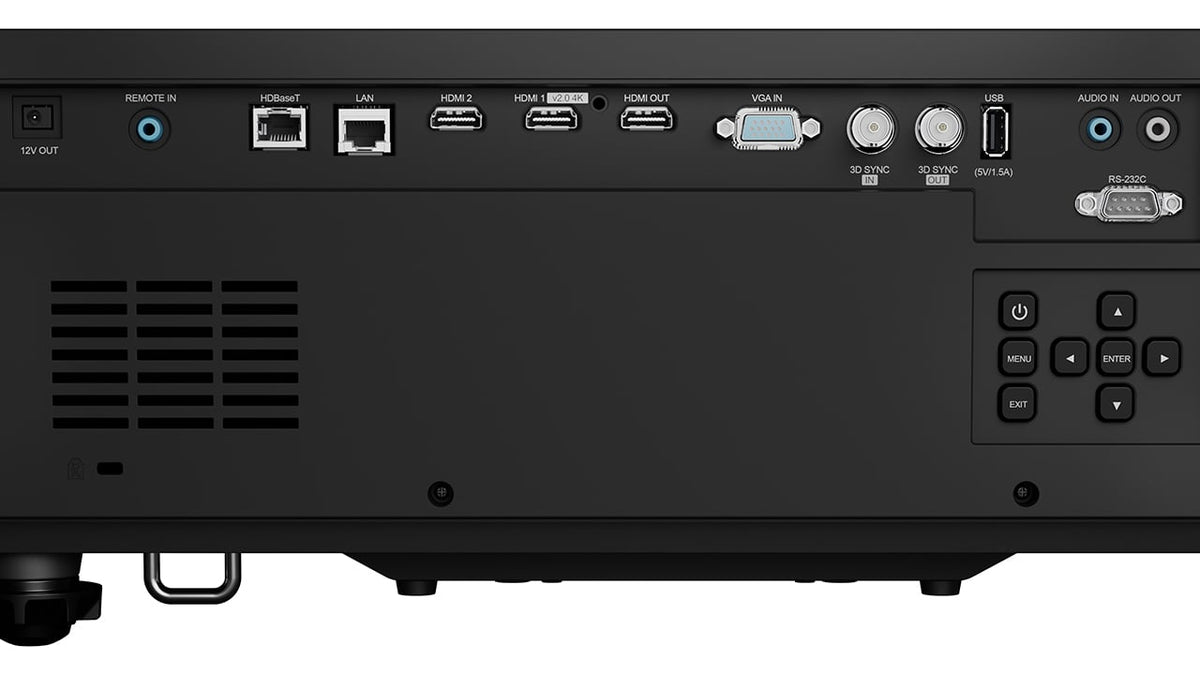

| Inputs | HDMI 1.4a, HDMI 2.0, HDBaseT, 3D Sync In, VGA, audio in (3.5 mm), USB-A, IR |
| Outputs | 3D Sync Out, HDMI, audio out |
| 3D | Full HD 3D with 3D sync in/out |
| Speakers | 2 x 10W |
| Power consumption | 520W normal / 415W ECO1 / 260W ECO2 (110 VAC) |
| Audible noise | 27–34 dBA depending on mode |
| Dimensions | 18.9 x 16 x 5.7 in. (480 x 406 x 157 mm) |
| Weight | 29.8 lbs (13.5 kg) |
| Part numbers | Standard 171-030104-02 |
| Warranty | 5 years parts and labor (part numbers ending -02 and above) |
Frequently Asked Questions
Does the DWU860-iS need a separate lens?
No. It comes with a built-in motorized 1.25–2.0:1 zoom lens, so there's no separate lens to buy.
Is a TAA-compliant version available?
Christie doesn't offer a TAA-compliant version of this model. For TAA projects, consider the DWU760-iS or DWU960-iS TAA versions.
How long does the laser last?
Christie rates it for 20,000 hours to 50% brightness, and Eco Mode extends that further.
Can it blend with other projectors?
Yes. Christie Twist is built in for up to six projectors, and Christie Mystique Lite is a free download that automates blending for up to three.
How does it compare to other Inspire models?
The Inspire family shares the same chassis. See the 4K860-iS, DWU760-iS, DWU960-iS, DWU960ST-iS.
Can Creation Networks install it?
Yes. Creation Networks designs, installs, and supports projection systems nationwide. Contact us at 888-230-3661 or sales@creationnetworks.net.
