Christie 4K860-iS 8,500-Lumen 4K UHD 1DLP Laser Projector - 171-074102-02 / 171-073101-02 (TAA)
Christie 4K860-iS 8,500-Lumen 4K UHD 1DLP Laser Projector - 171-074102-02 / 171-073101-02 (TAA) - Standard is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Christie 4K860-iS 8,500-Lumen 4K UHD 1DLP Laser Projector - 171-074...
What is the Christie 4K860-iS?
The Christie 4K860-iS is an 8,500-lumen 4K UHD 1DLP laser projector from the Christie Digital Inspire Series, with a built-in motorized zoom lens. It's a professional-grade fixed-lens projector for boardrooms, classrooms, museums, and other small-to-mid-size spaces, with 24/7 operation, an IP5X dust-resistant optical engine, quiet running, and DisplayPort input and passive 3D support.
What is included?
Christie 4K860-iS projector with fixed motorized lens, Standard (171-074102-02) or TAA-compliant (171-073101-02)
IR remote control (batteries included)
Power cable
Lens cover
How does the Christie 4K860-iS work?
A single DMD and a blue laser phosphor light source replace lamps, so the projector runs up to 20,000 hours to half brightness with almost no maintenance. The airtight IP5X optical engine keeps dust off the optics, and Eco Mode cuts brightness to 50% for longer life and quieter operation. Christie RealBlack turns the laser fully off on black scenes for 3,000,000:1 contrast.
The built-in 1.25–2.0:1 (1.6x zoom) lens is adjusted from the remote with powered zoom, focus, and offset, with ±110% vertical and ±50% horizontal shift. HDBaseT carries video, audio, network, and control over one cable, and AMX and Crestron connectivity make it easy to drop into a controlled room. Christie Twist warping and blending is built in for up to six projectors, and free Christie Mystique Lite can blend up to three automatically. Browse our commercial projectors to compare models.
What are the key features of the Christie 4K860-iS?
8,500 ISO lumens (7,200 ANSI) of laser brightness.
4K UHD resolution — 4K UHD 3840 x 2160 (16:9).
Motorized fixed lens — 1.25–2.0:1 (1.6x zoom), motorized zoom, focus, and lens shift.
IP5X dust-resistant optical engine for near-zero maintenance.
24/7 operation and omnidirectional mounting.
Christie Twist built in; Mystique Lite compatible.
Two 10W speakers with audio in and out.
Five-year warranty on -02 and later part numbers.
Where is the Christie 4K860-iS typically used?
Boardrooms and conference rooms
Classrooms and lecture halls
Museums and visitor centers
Houses of worship
Government meeting rooms and training spaces
Technical Specifications
| Brightness | 8,500 ISO lumens / 7,200 ANSI lumens |
| Resolution | 4K UHD 3840 x 2160 (16:9) |
| Display | 1-chip 0.65" DMD |
| Contrast | 1,300:1 full on/off; 3,000,000:1 with RealBlack |
| Light source | Blue laser phosphor, 20,000 hours to 50% brightness |
| Lens | 1.25–2.0:1 (1.6x zoom), motorized zoom, focus, and lens shift |
| Lens offset | ±110% vertical, ±50% horizontal |

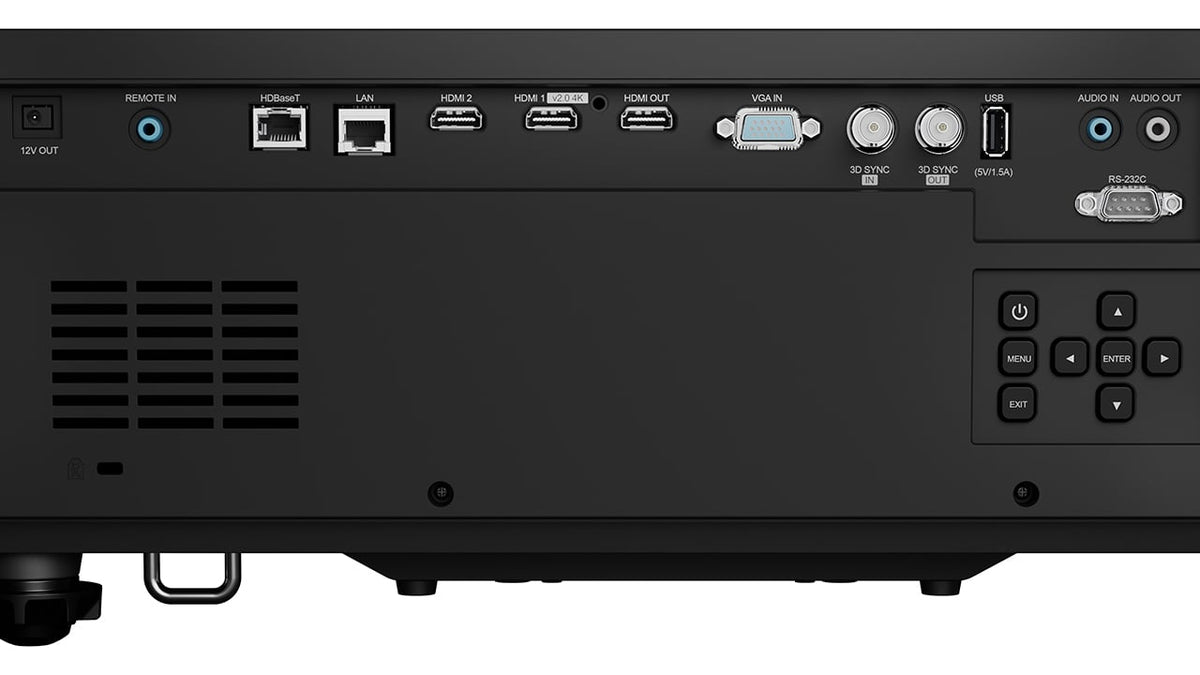

| Inputs | 2x HDMI 2.0, DisplayPort 1.2, HDBaseT, RJ45, 3D Sync In, USB-A (5V), USB-B (service), RS-232, wired remote (3.5 mm), IR |
| Outputs | 3D Sync Out, HDMI, 12V trigger, audio out |
| 3D | Active and passive polarized 3D |
| Speakers | 2 x 10W |
| Power consumption | 660W |
| Audible noise | 34–36 dBA depending on mode |
| Dimensions | 18.9 x 16 x 5.7 in. (480 x 406 x 157 mm) |
| Weight | 33.1 lbs (15 kg) |
| Part numbers | Standard 171-074102-02; TAA-compliant 171-073101-02 |
| Warranty | 5 years parts and labor (part numbers ending -02 and above) |
Frequently Asked Questions
Does the 4K860-iS need a separate lens?
No. It comes with a built-in motorized 1.25–2.0:1 zoom lens, so there's no separate lens to buy.
Is there a TAA-compliant version?
Yes. Select the TAA-Compliant version to order Christie part number 171-073101-02 for government and federal projects.
How long does the laser last?
Christie rates it for 20,000 hours to 50% brightness, and Eco Mode extends that further.
Can it blend with other projectors?
Yes. Christie Twist is built in for up to six projectors, and Christie Mystique Lite is a free download that automates blending for up to three.
How does it compare to other Inspire models?
The Inspire family shares the same chassis. See the DWU760-iS, DWU860-iS, DWU960-iS, DWU960ST-iS.
Can Creation Networks install it?
