Christie Jazz Series DWU2400-JS 23,750-Lumen WUXGA 1DLP Laser Projector (No Lens) - 171-075103-01 / 171-079107-01 (TAA)

What is the Christie DWU2400-JS?

The Christie DWU2400-JS is a 23,750-lumen WUXGA 1DLP laser projector from the Christie Digital Jazz Series. It uses a 1 x 0.8" HEP DMD and a high-efficiency blue laser phosphor light source rated for 20,000 hours to 50% brightness (full power), in a 64.76 lbs (29.4 kg) chassis that is easy to rig and fit into tight spaces. It's built for auditoriums, large venues, museums, and projection mapping. The projector ships without a lens, so the lens is chosen to fit the room.

What is included?

• Christie DWU2400-JS projector in the version you select: Standard (171-075103-01) or TAA-compliant (171-079107-01); lens sold separately

• IR remote with wired remote jack (wire not included)

• AC line cord

• Product safety guide

How does the Christie DWU2400-JS work?

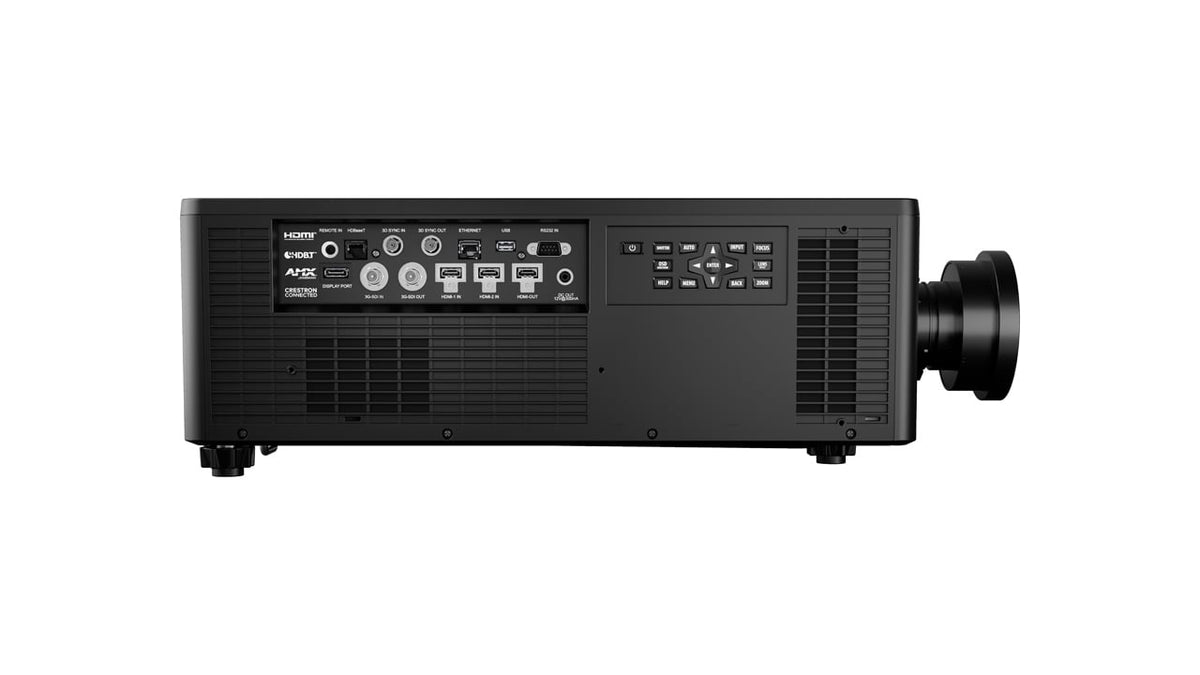

The DWU2400-JS pairs a single 0.8-inch DMD with a laser phosphor light source, so there are no lamps to replace and it can run around the clock. Christie RealBlack raises contrast to 4,000,000:1, and dynamic contrast reaches 25,000:1 against a 1,500:1 native ratio. Inputs include 2x HDMI 2.0b (HDCP 1.4/2.2), 3G-SDI, DisplayPort 1.2a, HDBaseT, USB 2.0, and the HDBaseT port carries video and control over one cable from a wall plate or switcher.

Interchangeable lenses mount with motorized zoom, focus, and lens shift, with lens memory to save and recall positions. Christie Twist warping and blending is built in for edge-blended or stacked displays, and Christie Mystique automated camera alignment is available as an option for multi-projector systems. Pair it with a Christie Jazz Series lens sized to your throw distance.

What are the key features of the Christie DWU2400-JS?

• 23,750 ISO lumens (20,000 ANSI) of laser brightness.

• WUXGA resolution — WUXGA 1920 x 1200 (16:10); accepts 4K inputs.

• 4,000,000:1 contrast with Christie RealBlack enabled.

• Laser life — 20,000 hours to 50% brightness (full power); 50,000 hours (ECO1).

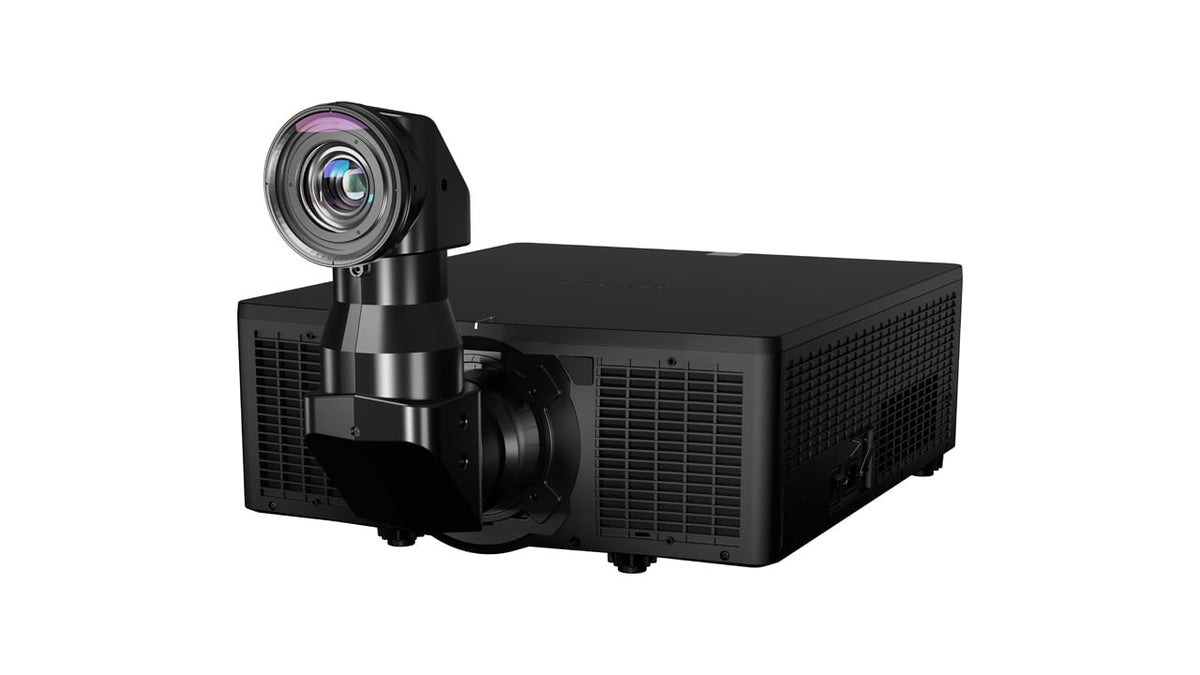

• Interchangeable motorized lenses, including ultra short throw options.

• Christie Twist warping and blending built in.

• Active shuttered 3D.

• Five-year warranty on the projector, and five years or 20,000 hours on the light source.

Where is the Christie DWU2400-JS typically used?

• Auditoriums and lecture halls

• Houses of worship

• Museums and visitor centers

• Large conference and training rooms

• Government chambers

• Projection mapping and attractions

Technical Specifications

Frequently Asked Questions

Does the DWU2400-JS include a lens?

No. The DWU2400-JS ships without a lens. Choose the lens by dividing the throw distance by the image width, and our team will confirm the match for your room.

Is there a TAA-compliant version?

Yes. Select the TAA-Compliant version to order Christie part number 171-079107-01 for government and federal projects.

How long does the laser light source last?

Christie rates it for 20,000 hours to 50% brightness at full power and 50,000 hours in ECO1 mode.

Can multiple projectors be blended together?

Yes. Christie Twist warping and blending is built in, and optional Christie Mystique automates camera-based alignment for multi-projector displays.

What control systems does it support?

It supports Crestron RoomView V2, PJLink V2, and AMX Device Discovery, with RS232, Ethernet, and HDBaseT control.

Can Creation Networks design and install it?

Yes. Creation Networks designs, installs, and supports projection systems nationwide, including lens selection, rigging, blending, and commissioning. Contact us at 888-230-3661 or sales@creationnetworks.net, or browse our commercial projectors.
