Chief VCT107B INCL CUSTOM HC107B BLK - VCT107B

Product Overview

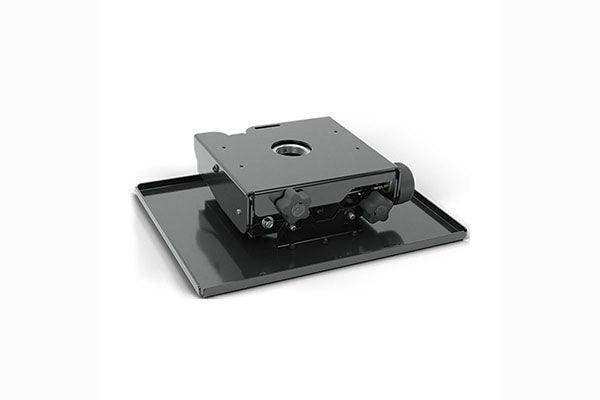

The Chief VCT107B is an XL custom tool-free projector mount built for large laser projectors in permanent commercial installations. It ships with the custom HC107B interface bracket for a direct fit and a sleek, low-profile result. Tool-free MicroZone+ adjustment delivers accurate, repeatable image registration during commissioning. The mount is well suited to auditoriums, houses of worship, and large conference rooms running high-output laser projectors.

Product Description

The Chief VCT107B projector mount was designed to install quickly while maintaining a sleek aesthetic for visible ceiling installations. Lighter and slimmer than its predecessor the VCM, the VCT is 30% slimmer and 25% lighter, making it easier to handle during a single overhead install. It works with laser projectors between 50 and 150 lbs (22.7 – 68 kg), covering most large-venue laser projector models. Tool-free MicroZone+ pitch adjustment uses a 100:1 gear ratio for precise image alignment, and the knob can be hand adjusted or driven with a 1/2" (13 mm) socket. PrecisionSet technology locks in pitch adjustments so the image stays registered over time, while tool-free MicroZone roll and yaw adjustments complete three-axis alignment. Lockout nuts enable additional image-lock security in high-traffic or high-vibration environments. The VCT107B ships with the matching HC107B custom interface, and custom mounts in this series are available in black with matching knobs and hardware for a consistent professional appearance.

Key Features

• Low profile design — The VCT is 30% slimmer than the VCM mount for a discreet ceiling installation.
• Lightweight construction — The VCT is 25% lighter than the VCM mount, simplifying overhead handling.
• Laser projector capacity — Supports laser projectors between 50 and 150 lbs (22.7 – 68 kg).
• Custom HC107B interface included — Ships with the matched HC107B custom interface for a direct, secure fit.
• Tool-free MicroZone+ pitch — A 100:1 gear ratio fine-tune pitch adjustment provides precise image alignment.
• Flexible adjustment — Hand adjust using the tool-free knob or drive it with a 1/2" (13 mm) socket.
• PrecisionSet technology — Locks in pitch adjustments to hold image registration after commissioning.
• Tool-free roll and yaw — Gear-driven MicroZone roll and yaw adjustments complete three-axis alignment.
• Image-lock security — Lockout nuts enable additional image-lock security.

Typical Applications

• Auditorium laser projection systems
• House of worship sanctuaries
• Broadcast studio and large conference room projectors
• Training room and multi-purpose room installations
• Government and commercial meeting spaces

Technical Specifications

Frequently Asked Questions

What projectors does the VCT107B support?
It is designed for laser projectors weighing between 50 and 150 lbs (22.7 – 68 kg) and ships with the matched HC107B custom interface for a direct fit.

How precise is the image alignment?
The tool-free MicroZone+ pitch adjustment uses a 100:1 gear ratio for fine image alignment, with tool-free roll and yaw adjustments for complete three-axis registration.

Do I need tools to adjust the mount?
No. Adjustments can be made by hand with the tool-free knob, or driven with a 1/2" (13 mm) socket if preferred.

Will the image stay aligned over time?
Yes. PrecisionSet technology locks in pitch adjustments and lockout nuts add image-lock security for permanent installations.

Is the VCT107B covered by a warranty?
Yes. It is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
