Chief VCT103S INCL CUSTOM HC103S BLK - VCT103S

Product Overview

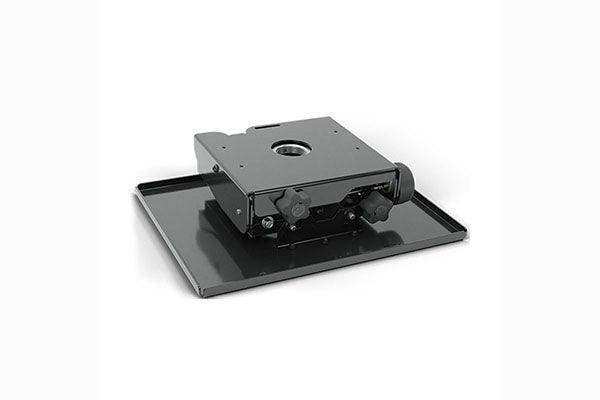

The Chief VCT103S is an XL custom tool-free projector mount for large laser projectors in permanent commercial installations. It ships with the custom HC103S interface for a direct fit and a slim, low-profile look. Tool-free MicroZone+ pitch, roll, and yaw adjustment provide accurate, repeatable image registration. The mount is built for auditoriums, houses of worship, and large conference rooms running high-output laser projectors.

Product Description

The Chief VCT103S projector mount delivers a complete XL custom mounting solution with the matched HC103S interface included. Its low-profile design works well with laser projectors between 50 and 150 lbs (22.7 – 68 kg), and the mount is 30% slimmer and 25% lighter than the VCM mount it replaces. Tool-free MicroZone+ pitch adjustment uses a 100:1 gear ratio for precise image alignment, and the adjustment can be made by hand with the tool-free knob or driven with a 1/2" (13 mm) socket. PrecisionSet technology locks in pitch adjustments to hold registration over time. The mount provides a full range of fine alignment: Micro Roll of +/-5°, Micro Pitch of +/-20°, Micro Yaw of +/-10°, and Macro Yaw of 360° for complete positioning around the drop point. Lockout nuts enable additional image-lock security in demanding installations. The VCT103S carries a 150 lb (68 kg) weight capacity and is UL Listed and TUV Certified for verified strength and compliance in commercial AV projects.

Key Features

• Custom HC103S interface included — Ships with the matched HC103S custom interface for a direct, secure fit.
• Low profile and lightweight — 30% slimmer and 25% lighter than the VCM mount for easier overhead installation.
• Laser projector capacity — Works well with laser projectors between 50 and 150 lbs (22.7 – 68 kg).
• Tool-free MicroZone+ pitch — A 100:1 gear ratio fine-tune pitch adjustment provides precise image alignment.
• Full alignment range — Micro Roll +/-5°, Micro Pitch +/-20°, Micro Yaw +/-10°, and Macro Yaw 360°.
• Flexible adjustment — Hand adjust using the tool-free knob or drive it with a 1/2" (13 mm) socket.
• PrecisionSet technology — Locks in pitch adjustments and lockout nuts add image-lock security.
• Certified strength — UL Listed and TUV Certified with a 150 lb (68 kg) weight capacity.

Typical Applications

• Auditorium laser projection systems
• House of worship sanctuaries
• Broadcast studio and large conference room projectors
• Training room and multi-purpose room installations
• Government and commercial meeting spaces

Technical Specifications

Frequently Asked Questions

What projectors does the VCT103S support?
It is designed for laser projectors and carries a 150 lb (68 kg) weight capacity, working well with projectors between 50 and 150 lbs. It ships with the matched HC103S custom interface.

How much adjustment does it offer?
The mount provides Micro Roll +/-5°, Micro Pitch +/-20°, Micro Yaw +/-10°, and Macro Yaw 360° for complete image registration.

Do I need tools to adjust it?
No. Adjustments are tool-free by hand using the knob, or can be driven with a 1/2" (13 mm) socket.

Is the VCT103S certified?
Yes. It is UL Listed and TUV Certified for verified strength and commercial compliance.

Is the VCT103S covered by a warranty?
Yes. It is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
