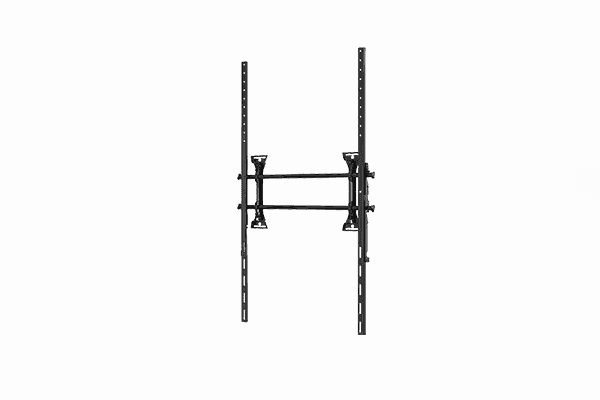

Chief Ultrawide Micro-Adjust Portrait Static Wall Mount, Extra-Large Kit - KITXWXSM1UP

Product Overview

The Chief KITXWXSM1UP ultrawide micro-adjust portrait static wall mount kit secures 21:9 ultrawide displays in portrait orientation for digital signage, conference room content walls, and lobby messaging. It supports ultrawide mounting patterns up to 1954 mm x 600 mm in a low-profile, fixed installation. Centerless Shift centering and ControlZone leveling give installers post-installation adjustment for a precise final position. ClickConnect provides an audible confirmation that the display has safely engaged the mount.

Product Description

The KITXWXSM1UP leverages Chief Fusion features to support displays with a 21:9 aspect ratio and ultrawide mounting patterns up to 1954 mm x 600 mm in a secure, easy-to-install portrait solution. An integrated teardrop design speeds wall plate installation by allowing the bolts to be pre-installed on the wall, and ControlZone leveling enables post-installation fine-tuning of height and leveling. Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering on the wall, while set screws keep the mount rigid, stable, and secure throughout the life of the installation. ClickConnect offers an audible click when the screen safely engages the mount, and a built-in cable stand provides easy access beneath the screen. A full line of accessories can be installed with the mount and adjusted together as one unit, and exclusive nesting spacers stack to achieve any required depth. Quick-Store Cords use magnets to store and access pull cords, and updated end caps improve cable management. Integrated security helps protect the display in public-facing installations. This is a static (fixed) wall mount kit. For a landscape version of the same ultrawide platform, see the Chief KITXWXSM1U ultrawide static wall mount kit, or browse more options in the Chief collection.

Key Features

• Ultrawide portrait support — Holds 21:9 displays with mounting patterns up to 1954 mm x 600 mm in portrait orientation.
• Integrated teardrop design — Allows bolts to be pre-installed on the wall to speed wall plate installation.
• ControlZone leveling — Enables post-installation fine-tuning of height and leveling.
• Centerless Shift — Provides up to 17.4" (441 mm) of lateral shift after installation for precise centering.
• ClickConnect engagement — Delivers an audible click when the screen safely engages the mount.
• Built-in cable stand — Provides easy access to cabling beneath the screen.
• Nesting spacers — Exclusive spacers stack to achieve any required mounting depth.
• Integrated security — Built-in security helps protect displays in public spaces.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Government space
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Q: What displays does the KITXWXSM1UP support?
It is built for 21:9 ultrawide displays in portrait orientation with mounting patterns up to 1954 mm x 600 mm. Confirm your display's pattern and weight with Chief's MountFinder or contact Creation Networks.

Q: Is this a tilting mount?
No. It is a static (fixed) wall mount, with ControlZone leveling and Centerless Shift for post-installation height, leveling, and centering adjustments.

Q: How much centering adjustment is available?
Centerless Shift provides up to 17.4" (441 mm) of lateral shift after installation for precise on-wall centering.

Q: How does the display attach?
ClickConnect provides an audible click confirming the screen has safely engaged the mount, and set screws keep the mount rigid and secure.

Q: Can accessories be added?
Yes. A full line of accessories installs with the mount and adjusts together as one unit, and nesting spacers stack to reach any required depth.

Q: Is the kit covered by a warranty?
Yes. This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
