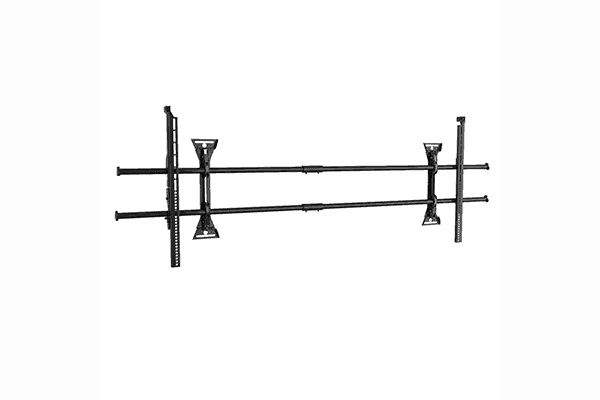

Chief Ultrawide Micro-Adjustable Static Wall Mount, Extra Large Kit -KITXWXSM1U

Product Overview

The Chief KITXWXSM1U ultrawide micro-adjustable static wall mount kit secures large 21:9 ultrawide displays in a fixed landscape installation for digital signage, conference rooms, and content walls. It supports ultrawide mounting patterns up to 1954 mm x 600 mm in a secure, easy-to-install solution. Centerless Shift provides up to 22.6" of lateral centering, and ControlZone leveling fine-tunes height and level after installation. ClickConnect confirms the display has safely engaged the mount.

Product Description

The KITXWXSM1U leverages Chief Fusion features to support displays with a 21:9 aspect ratio and ultrawide mounting patterns up to 1954 mm x 600 mm in a secure, easy-to-install landscape solution. An integrated teardrop design speeds wall plate installation by allowing the bolts to be pre-installed on the wall, and ControlZone leveling enables post-installation fine-tuning of height and leveling. Centerless Shift provides up to 22.6" (575 mm) of post-installation lateral shift for limitless centering, while set screws keep the mount rigid, stable, and secure throughout the life of the installation. ClickConnect offers an audible click when the screen safely engages the mount, and a built-in cable stand provides easy access beneath the screen. Multiple installation options accommodate various stud distances, and exclusive nesting spacers stack to achieve any required depth. A full line of accessories can be installed with the mount and adjusted together as one unit, Quick-Store Cords use magnets to store and access pull cords, and updated end caps improve cable management. Integrated security helps protect the display, and the kit ships with a custom hardware kit that can be hung from the mount rails if installing in stages. For a portrait version of the same ultrawide platform, see the Chief KITXWXSM1UP portrait wall mount kit, or browse the Chief collection.

Key Features

• Ultrawide landscape support — Holds 21:9 displays with mounting patterns up to 1954 mm x 600 mm.
• Integrated teardrop design — Allows bolts to be pre-installed on the wall to speed wall plate installation.
• ControlZone leveling — Enables post-installation fine-tuning of height and leveling.
• Centerless Shift — Provides up to 22.6" (575 mm) of lateral shift after installation for precise centering.
• ClickConnect engagement — Delivers an audible click when the screen safely engages the mount.
• Flexible stud options — Multiple installation options accommodate various stud distances.
• Nesting spacers — Exclusive spacers stack to achieve any required mounting depth.
• Staged install support — Ships with a custom hardware kit that can hang from the mount rails when installing in stages.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Government space
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Q: What displays does the KITXWXSM1U support?
It is built for 21:9 ultrawide displays in landscape orientation with mounting patterns up to 1954 mm x 600 mm. Confirm your display's pattern and weight with Creation Networks before ordering.

Q: Is this a tilting mount?
No. It is a static (fixed) wall mount, with ControlZone leveling and Centerless Shift for post-installation height, leveling, and centering adjustments.

Q: How much centering adjustment is available?
Centerless Shift provides up to 22.6" (575 mm) of lateral shift after installation for precise on-wall centering.

Q: Does it accommodate different stud spacing?
Yes. Multiple installation options accommodate various stud distances, and it ships with a custom hardware kit for staged installs.

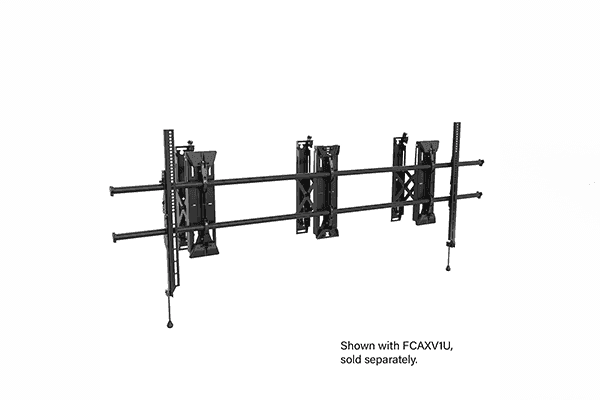

Q: Can accessories be added?
Yes. A full line of accessories installs with the mount and adjusts together, and nesting spacers stack to reach any required depth.

Q: Is the kit covered by a warranty?
Yes. This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
