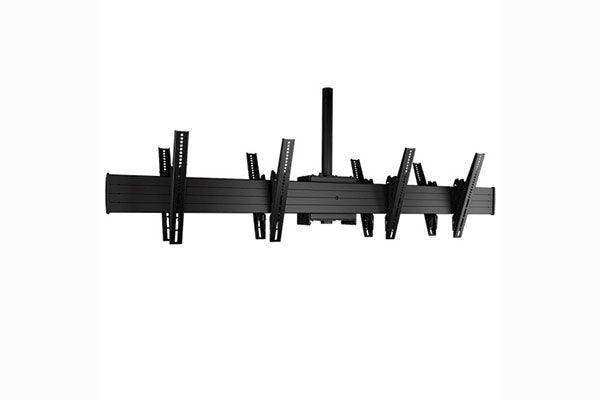

Chief Side X Side Back To Back Ceiling Mount - LCB2X1U

Product Overview

The Chief LCB2X1U Fusion back-to-back ceiling mount creates a double-sided 2x1 menu board in locations where wall mounting is not an option, such as quick-service restaurants, retail, and transit digital signage. Two displays mount on opposite faces of a single ceiling drop so the menu board reads from both directions. Micro-adjustable roll, 360-degree swivel, and Centris tilt provide precise alignment after installation. The mount fits 40" to 55" displays and is TAA compliant for government and institutional projects.

Product Description

The LCB2X1U is part of the Chief Fusion ceiling-mounted menu board line and is designed for prominent digital signage placements where walls are not available. Its 2x1 back-to-back configuration positions displays on both sides of a single drop, and units can be combined to build longer menu board runs. A single drop speeds installation while a single horizontal extrusion keeps screens aligned. Micro-adjustable roll provides perfect leveling within plus or minus 3 degrees, 360-degree swivel sets optimal viewing angles, and Centris tilting interfaces adjust from +5 to -20 degrees. Tool-free screen engagement eases service, and optional padlock security protects displays in public areas. The mount fits 40" to 55" diagonal screens, with FCAX extension brackets available for displays up to 65". A ceiling plate and extension column are required and must be ordered separately; the mount is compatible with both traditional 1.5" NPT and CPA pinned ceiling plate and column systems. The product is TAA compliant. Browse compatible ceiling plates, columns, and additional Fusion mounts in the Chief collection, including the portrait Chief LCB2X1UP back-to-back portrait menu board mount.

Key Features

• Back-to-back 2x1 array — Mounts displays on both sides of a single ceiling drop for double-sided menu boards.
• Combinable runs — Units combine to easily create longer menu board configurations.
• Single drop installation — A single drop and single horizontal extrusion speed installation and keep screens aligned.
• Micro-adjustable leveling — Roll adjustment provides perfect leveling within +/- 3 degrees.
• 360-degree swivel — Full swivel sets optimal viewing angles for each side.
• Centris tilt — Tilting interfaces adjust from +5 to -20 degrees for glare control and sightlines.
• Screen compatibility — Fits 40" - 55" displays; FCAX extension brackets support up to 65".
• TAA compliant — Meets TAA requirements for government and institutional procurement.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• Government space
• Auditorium

Technical Specifications

Frequently Asked Questions

Q: What displays is the LCB2X1U compatible with?
It fits 40" to 55" diagonal displays, with FCAX extension brackets available for screens up to 65". Confirm your model with Chief's MountFinder or contact Creation Networks.

Q: Does it include a ceiling plate and column?
No. A ceiling plate and extension column are required and must be ordered separately. The mount works with both 1.5" NPT and CPA pinned ceiling systems.

Q: Can I build a longer menu board?
Yes. Multiple LCB2X1U units combine to create longer back-to-back menu board runs.

Q: How is it aligned after installation?
The mount offers +/- 3 degree roll leveling, 360-degree swivel, and +5 to -20 degree Centris tilt for precise alignment.

Q: Is it suitable for government projects?
Yes. The LCB2X1U is TAA compliant for government and institutional procurement.

Q: Is the mount covered by a warranty?
Yes. This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
