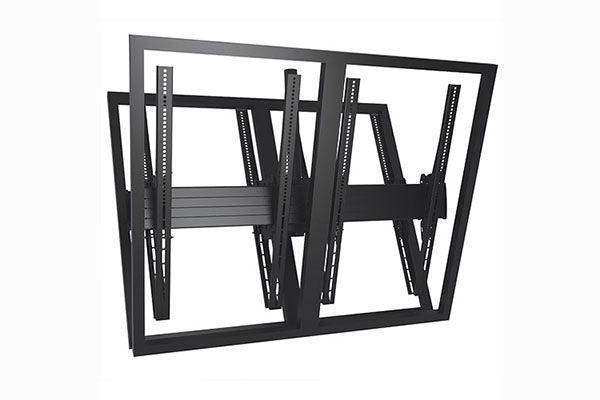

Chief Cm Side X Side B2B Portrait - LCB2X1UP

Product Overview

The Chief LCB2X1UP Fusion back-to-back ceiling mount builds a double-sided 2x1 portrait menu board where wall space is unavailable, making it well suited to quick-service restaurants, retail, and other digital signage locations. Two portrait displays mount on each side of a single ceiling drop, creating menu boards visible from both directions. Micro-adjustable roll, 360-degree swivel, and Centris tilt deliver precise alignment after installation. The mount fits 40" to 55" displays and is TAA compliant for government and institutional projects.

Product Description

The LCB2X1UP is part of the Chief Fusion ceiling-mounted menu board line, engineered for commercial spaces where displays must hang from the ceiling rather than a wall. The 2x1 back-to-back configuration places portrait displays on both faces of a single drop, so a menu board reads from both approach directions in a quick-service or retail environment. A single horizontal extrusion keeps screens aligned, and a single drop speeds installation. Micro-adjustable roll provides perfect leveling within plus or minus 3 degrees, 360-degree swivel sets the optimal viewing angle, and Centris tilting interfaces allow easy adjustment from +5 to -20 degrees. Tool-free screen engagement simplifies service, and optional padlock security protects the displays in public areas. The mount fits 40" to 55" diagonal screens, with FCAX extension brackets available to support displays up to 65". A ceiling plate and extension column are required and must be ordered separately; the mount is compatible with both traditional 1.5" NPT and CPA pinned ceiling plate and column systems. The product is TAA compliant. Explore matching ceiling plates, columns, and additional Fusion menu board mounts in the Chief collection, including the single-sided Chief LCM3X1UP 3-wide portrait ceiling menu board.

Key Features

• Back-to-back 2x1 portrait array — Mounts portrait displays on both sides of a single ceiling drop for double-sided menu boards.
• Single drop installation — A single drop and single horizontal extrusion speed installation and keep screens aligned.
• Micro-adjustable leveling — Roll adjustment provides perfect leveling within +/- 3 degrees.
• 360-degree swivel — Full swivel sets optimal viewing angles for each side.
• Centris tilt — Tilting interfaces adjust from +5 to -20 degrees for glare control and sightlines.
• Tool-free engagement and security — Tool-free screen engagement with optional padlock security for public spaces.
• Screen compatibility — Fits 40" - 55" displays; FCAX extension brackets support up to 65".
• TAA compliant — Meets TAA requirements for government and institutional procurement.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• Government space
• Auditorium

Technical Specifications

Frequently Asked Questions

Q: What displays is the LCB2X1UP compatible with?
It fits 40" to 55" diagonal displays, with FCAX extension brackets available for screens up to 65". Confirm your exact model with Chief's MountFinder or contact Creation Networks.

Q: Does it include a ceiling plate and column?
No. A ceiling plate and extension column are required and must be ordered separately. The mount works with both 1.5" NPT and CPA pinned ceiling plate and column systems.

Q: How is it installed and aligned?
The mount uses a single drop with a single horizontal extrusion, then offers +/- 3 degree roll leveling, 360-degree swivel, and +5 to -20 degree Centris tilt for precise alignment after hanging.

Q: Is it suitable for government projects?
Yes. The LCB2X1UP is TAA compliant, meeting procurement requirements for government and institutional installations.

Q: Can the displays be secured?
Yes. Tool-free screen engagement is standard, and optional padlock security is available to protect displays in public spaces.

Q: Is the mount covered by a warranty?
Yes. This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
