Chief PROJECT GUARD WHITE - PG1AW

Product Overview

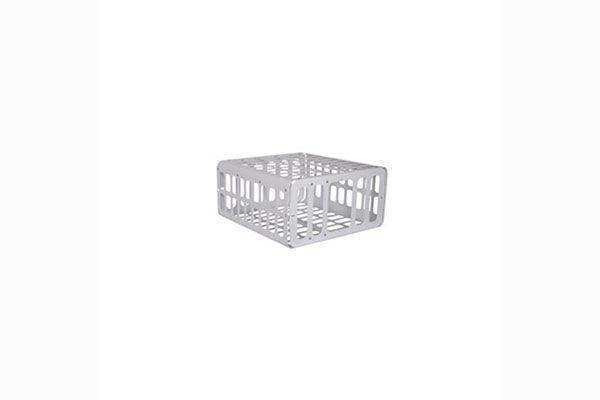

The Chief PG1AW Projector Guard is a steel security enclosure finished in white, designed to fully enclose a ceiling-mounted projector and its mount inside a locked cage. It prevents theft and deters deliberate physical damage in commercial, educational, and public-access environments while blending visually with white ceiling infrastructure. Compatible with Chief’s RPA and RPM projector mount series (PG1–PG3), the PG1AW also attaches to 1-inch and 1.5-inch NPT diameter poles for RSM and RSA pole-mount applications. The white finish makes it the preferred choice for installations where a black cage would be visually conspicuous against a light-colored ceiling.

Product Description

The Chief PG1AW is the white-finish variant of the Chief PG1A Projector Guard. It is functionally identical to the PG1A in all respects, with the same steel cage construction, the same RPA and RPM mount compatibility, and the same security features—differentiated only by its white finish for visual integration with light-colored ceilings in commercial and institutional environments.

The cage’s adjustable front opening accommodates different lens positions without compromising structural integrity. The hinged door provides authorized access for lamp replacement, lens adjustment, or cable work without removing the cage from the ceiling. Like the PG1A, the PG1AW accommodates roll, pitch, and yaw adjustments while installed, so the projector can be realigned without dismounting the enclosure.

The PG1AW locks with security screws and supports optional padlocks for additional physical security. Chief’s PG4 model is compatible with the VCM and VCT series for different mount applications. The black-finish equivalent is the PG1A. Additional Chief security and mounting products are available at the Chief collection on Creation Networks.

Key Features

• White Finish — Finished in white to visually integrate with light-colored ceilings, reducing the aesthetic impact of the security enclosure in corporate, educational, and healthcare environments.
• Full Steel Enclosure — Completely surrounds the projector and mount, providing a physical barrier against theft and deliberate damage.
• Hinged Access Door — Allows authorized access for lamp changes, lens adjustment, and cable work without removing the security enclosure from the ceiling.
• Adjustable Front Lens Opening — Aperture adjusts to accommodate different projector lens positions, maintaining optical clearance.
• Roll, Pitch, and Yaw Adjustment Compatible — Permits all three axes of projector mount adjustment while the cage remains installed.
• Security Screw Locking — Locks with security screws requiring a specialized driver bit, deterring opportunistic tampering.
• Optional Padlock Compatibility — Accepts standard padlocks for a secondary layer of physical security in higher-risk environments.
• Compatible with RPA and RPM Series Mounts (PG1–PG3) — Designed for Chief’s RPA and RPM projector mount families; note PG4 is compatible with VCM and VCT series.
• 1” and 1.5” NPT Pole Attachment — Attaches directly to standard NPT-threaded poles for RSM and RSA projector installations.

Typical Applications

• Conference rooms with white or light-colored ceilings where a black cage would be visually prominent
• Educational classrooms and lecture halls requiring projector theft deterrence with minimal visual disruption
• Healthcare facilities and clinical spaces where ceiling aesthetics and cleanliness standards apply
• Boardrooms and executive spaces where ceiling hardware appearance is a specification consideration
• Training rooms with high-value projectors in supervised but unlocked environments
• Multi-purpose rooms and auditoriums with white ceiling infrastructure
• Commercial meeting spaces with facility standards requiring white-finish hardware

Technical Specifications

Frequently Asked Questions

Q: What is the difference between the PG1A and PG1AW?
A: The PG1A and PG1AW are identical in function, construction, and compatibility. The only difference is finish color: the PG1A is black and the PG1AW is white. Choose based on your ceiling color and facility aesthetic requirements.

Q: Will the PG1AW fit my existing projector and mount?
A: The PG1AW (PG1–PG3) is compatible with Chief RPA and RPM series mounts, and attaches to 1-inch and 1.5-inch NPT poles. Contact Creation Networks to confirm compatibility for your specific mount configuration.

Q: Can I still adjust the projector alignment after the cage is installed?
A: Yes. The PG1AW accommodates roll, pitch, and yaw adjustments while the cage remains in place. You do not need to dismount the enclosure to realign the projector.

Q: What is the PG4, and how does it differ from PG1–PG3?
A: The PG4 is a different Chief projector guard model compatible with the VCM and VCT projector mount series. The PG1AW (PG1–PG3) is specifically designed for RPA and RPM series mounts.

Q: Can the PG1AW be opened without special tools?
A: The cage locks with security screws requiring a specialized driver bit. Optional padlocks can be added for additional security in higher-risk environments.

Q: What warranty applies to the PG1AW?
A: The PG1AW is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks directly for current warranty terms and support options.
