Chief Menu Board 3 Wide 1 High - LCM3X1U
Product Overview

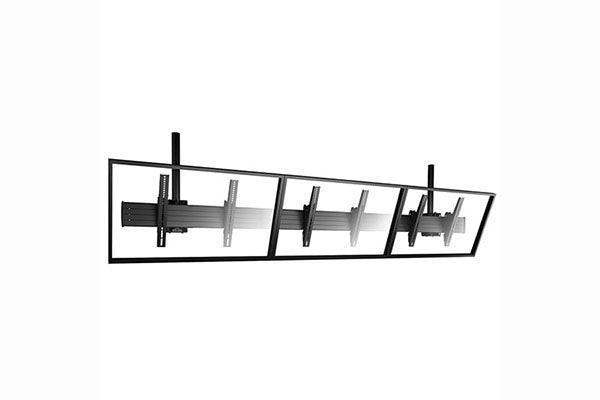

The Chief LCM3X1U Fusion ceiling mount builds a 3-wide menu board in locations where wall mounting isn't available, such as quick-service restaurants and retail digital signage. Three displays hang from the ceiling in a single aligned row, and units combine to extend the menu board run. Centris tilt and a single horizontal extrusion provide precise alignment after installation. The mount fits 40" to 55" displays, expandable to 65" with FCAX extension brackets.
Product Description
The LCM3X1U is part of the Chief Fusion ceiling-mounted menu board line and makes it possible to construct menu boards in prominent locations where walls aren't available. Its 3-wide, 1-high configuration suspends three displays from the ceiling, and multiple units combine to create longer menu boards for larger digital signage deployments. A single horizontal extrusion keeps screens aligned, and Centris tilting interfaces allow easy adjustment from +5 to -20 degrees to manage sightlines and glare. Tool-free screen engagement speeds installation and ongoing service, while optional padlock security protects displays in public areas. The mount fits 40" to 55" diagonal screens, with FCAX extension brackets available to support displays up to 65". A ceiling plate and extension column are required and must be ordered separately; the mount is compatible with both traditional 1.5" NPT and CPA pinned ceiling plate and column systems. Rear coverage for displays, components, and mount is available through the Chief Fusion universal back covers. Confirm screen compatibility with Chief's MountFinder. Browse compatible ceiling plates, columns, and additional menu board mounts in the Chief collection, including the portrait Chief LCM3X1UP 3-wide portrait ceiling menu board.
Key Features
- 3-wide ceiling array — Suspends three displays where wall mounting isn't possible.
- Combinable runs — Units combine to easily create longer menu boards.
- Single horizontal extrusion — Keeps screens aligned across the row.
- Centris tilt — Tilting interfaces adjust from +5 to -20 degrees for sightlines and glare control.
- Tool-free screen engagement — Speeds installation and service.
- Screen compatibility — Fits 40" - 55" displays; FCAX extension brackets support up to 65".
- Optional padlock security — Protects displays in public installations.
- Column compatibility — Works with 1.5" NPT and CPA pinned ceiling plate and column systems.
Typical Applications
- Commercial meeting space
- Multi-purpose room
- Government space
- Auditorium
Technical Specifications
| Brand | Chief (Legrand AV) |
| Model / SKU | LCM3X1U |
| Series | Fusion |
| Mount Type | Ceiling-mounted menu board |
| Array Configuration | 3 x 1 |
| Screen Size Range | 40" - 55" (up to 65" with FCAX brackets) |
| Tilt | +5° to -20° (Centris) |
| Screen Engagement | Tool-free |
| Required Accessories | Ceiling plate and extension column (ordered separately) |
| Column Compatibility | 1.5" NPT and CPA pinned systems |
| Security | Optional padlock |
Frequently Asked Questions
Q: What displays is the LCM3X1U compatible with?
It fits 40" to 55" diagonal displays, with FCAX extension brackets available for screens up to 65". Confirm your model with Chief's MountFinder or contact Creation Networks.
Q: Does it include a ceiling plate and column?
No. A ceiling plate and extension column are required and must be ordered separately. The mount works with both 1.5" NPT and CPA pinned ceiling systems.
Q: Can I extend the menu board?
Yes. Multiple LCM3X1U units combine to create longer ceiling-mounted menu board runs.
Q: How are displays aligned and tilted?
A single horizontal extrusion keeps screens aligned, and Centris tilt from +5 to -20 degrees sets sightlines and controls glare.
Q: Can the displays be secured?
Yes. Tool-free screen engagement is standard, and optional padlock security protects displays in public spaces.
Q: Is the mount covered by a warranty?
Yes. This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
