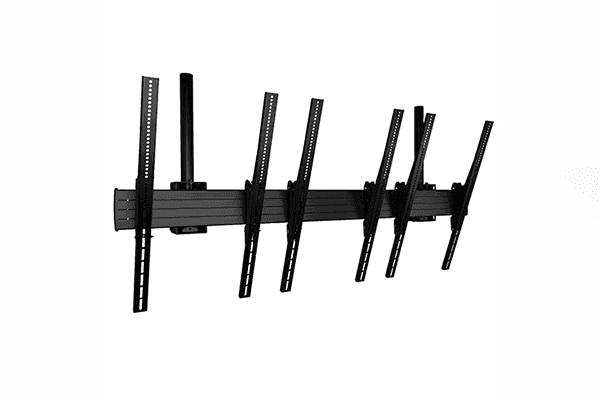

Chief FUSION™ Large Ceiling Mounted 3 x 1 Portrait Menu Board - LCM3X1UP

Product Overview

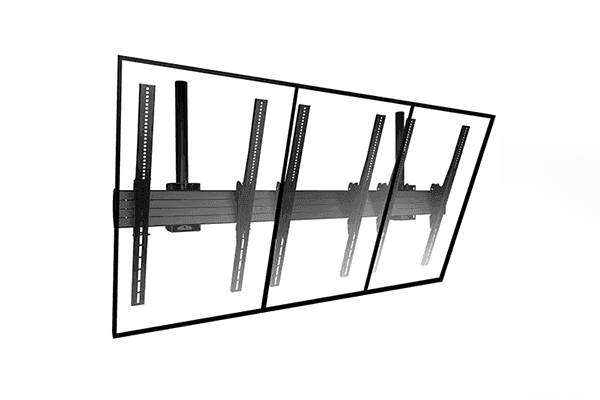

The Chief LCM3X1UP Fusion ceiling mount builds a 3x1 portrait menu board in prominent locations where wall space is unavailable, making it well suited to quick-service restaurants and retail digital signage. Three portrait displays hang from the ceiling in a single aligned row, and units can be combined to extend the menu board. Centris tilt and a single horizontal extrusion deliver precise alignment after installation. The mount fits 40" to 55" displays, expandable to 65" with FCAX extension brackets.

Product Description

The LCM3X1UP is part of the Chief Fusion ceiling-mounted menu board line and makes it possible to construct menu boards in prominent locations where walls aren't available. The 3x1 portrait configuration suspends three displays from the ceiling, and multiple units combine to create longer menu boards for larger digital signage installations. A single horizontal extrusion keeps screens aligned, and Centris tilting interfaces allow easy adjustment from +5 to -20 degrees to control sightlines and glare. Tool-free screen engagement simplifies installation and service, while optional padlock security protects displays in public areas. The mount fits 40" to 55" diagonal screens, with FCAX extension brackets available to support displays up to 65". A ceiling plate and extension column are required and must be ordered separately; the mount is compatible with both traditional 1.5" NPT and CPA pinned ceiling plate and column systems. Confirm screen compatibility with Chief's MountFinder. For a wall-mounted equivalent, see the Chief LWM3X1UP 3-wide portrait menu board mount, or browse the Chief collection for ceiling plates and columns.

Key Features

• 3x1 portrait ceiling array — Suspends three portrait displays where wall mounting isn't possible.
• Combinable runs — Units combine to easily create longer menu boards.
• Single horizontal extrusion — Keeps screens aligned across the row.
• Centris tilt — Tilting interfaces adjust from +5 to -20 degrees for sightlines and glare control.
• Tool-free screen engagement — Speeds installation and service.
• Screen compatibility — Fits 40" - 55" displays; FCAX extension brackets support up to 65".
• Optional padlock security — Protects displays in public installations.
• Column compatibility — Works with 1.5" NPT and CPA pinned ceiling plate and column systems.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• Government space
• Auditorium

Technical Specifications

Frequently Asked Questions

Q: What displays is the LCM3X1UP compatible with?
It fits 40" to 55" diagonal displays, with FCAX extension brackets available for screens up to 65". Confirm your model with Chief's MountFinder or contact Creation Networks.

Q: Does it include a ceiling plate and column?
No. A ceiling plate and extension column are required and must be ordered separately. The mount works with both 1.5" NPT and CPA pinned ceiling systems.

Q: Can I extend the menu board?
Yes. Multiple LCM3X1UP units combine to create longer ceiling-mounted menu board runs.

Q: How are displays aligned and tilted?
A single horizontal extrusion keeps screens aligned, and Centris tilt from +5 to -20 degrees sets sightlines and controls glare.

Q: Can the displays be secured?
Yes. Tool-free screen engagement is standard, and optional padlock security protects displays in public spaces.

Q: Is the mount covered by a warranty?
Yes. This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
