Chief Connexsys Video Wall System Port W/Rails - LVS1UP

Product Overview

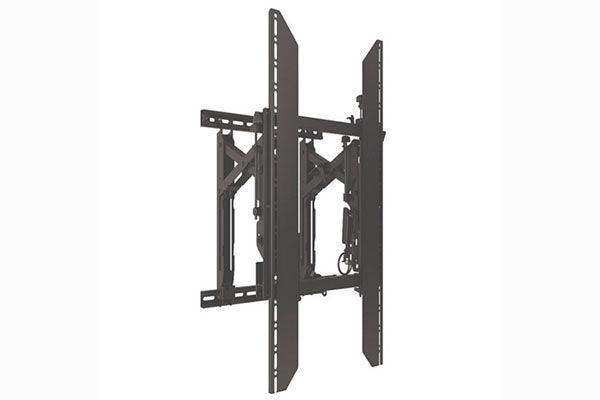

The Chief ConnexSys LVS1UP is a portrait video wall mounting system that ships with rails for each mount. It solves the common video wall challenges of speed, alignment, serviceability, and rigidity by using strut channel to connect multiple mounts and level each row once. It is built for large-format and recessed video wall installations in commercial AV environments.

Product Description

ConnexSys hangs units on a single strut channel so an entire row levels at once, eliminating horizontal spacers and reducing installation time, especially for XL and recessed configurations. Tool-free ClickConnect latching secures displays, and the PowerZone area provides six points of adjustment in one easy-to-access location at the top of the mount. Alignment is precise: height adjusts +/-1 in at each interface, depth can be set between 4 in and 7.4 in from the wall to create ideal home positions for recessed installs, and three levels of lateral adjustment plus independent side adjustment compensate for walls out of alignment by up to 2 in horizontally. The RapidDraw display release cord gently pops any screen out for service and extends 13.4 in, with a 10 ft cord that pulls from any 90-degree angle and a kickstand that provides 20 degrees of bottom tilt access. A rigid frame keeps displays where they are set even after extending for service, and a universal interface, padlock security, and factory-set adjustments make installation repeatable across every mount.

Key Features

• Single-channel row leveling — Hangs units on one strut channel so each row levels at once without horizontal spacers.
• PowerZone adjustments — Six points of adjustment in one accessible location at the top of the mount.
• Precise alignment — Height adjusts +/-1 in per interface; depth sets between 4 in and 7.4 in from the wall.
• Lateral compensation — Three levels of lateral adjustment compensate for walls out of alignment by up to 2 in horizontally.
• RapidDraw display release — A cord-release system pops any screen out for service and extends 13.4 in.
• Tool-free ClickConnect latching — Secures displays without tools for faster installation.
• Rigid frame — Keeps displays aligned even after extending for service, resisting accidental bumps.
• Universal interface and security — Universal display interface with padlock security and factory-set adjustments.

Typical Applications

• Conference room
• Broadcast studio
• Commercial meeting space
• Auditorium
• Boardroom

Technical Specifications

Frequently Asked Questions

What does the LVS1UP include?
It is the portrait ConnexSys video wall mount and ships with rails for each mount.

How does ConnexSys speed up installation?
Units hang on a single strut channel so each row levels at once, with no horizontal spacers required.

How precise is the alignment?
Height adjusts +/-1 in per interface and depth sets between 4 in and 7.4 in, with lateral adjustment compensating up to 2 in of horizontal wall misalignment.

How are displays serviced?
The RapidDraw cord release pops any screen out and extends 13.4 in, with a 10 ft pull cord and a 20-degree kickstand for access.

Is it suitable for recessed video walls?
Yes. The adjustable depth and rigid frame make it well suited to recessed and XL configurations.

What warranty applies?
It is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
