Chief Led Samsung Ifj-Iw 3 High - TIL1X3IFJ

Product Overview

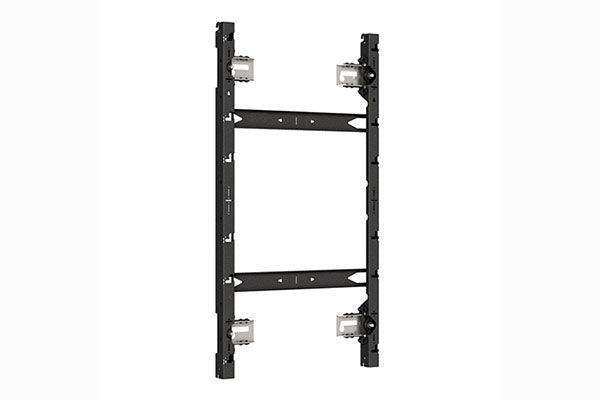

The Chief TiLED TIL1X3IFJ is an LED video wall mounting system engineered to stack three Samsung IFJ Series dvLED displays vertically into one continuous video wall. It is purpose-built for digital signage, lobbies, and control rooms where a seamless 1x3 portrait column of direct view LED is required. The modular design attaches to the top, bottom, and sides of additional mounts so integrators can scale the wall to almost any configuration.

Product Description

The TiLED system uses offset mounting slots that protect the LED display edges from damaging friction during installation, a common point of failure with fine-pitch dvLED cabinets. Once the displays are set, independent X, Y, and Z-axis adjustments let the installer dial in lateral position, cabinet-to-cabinet alignment, and plumb against an imperfect wall. The result is a flat, tightly aligned LED surface suited to broadcast studios, conference rooms, and high-traffic commercial spaces. With the display installed, the depth range stays between 3.85 in and 4.60 in (98–117 mm) for a low-profile finish that sits close to the wall. This mount is a standard, off-the-shelf solution that ships without custom lead times or project registration, making it straightforward to specify and order for time-sensitive installs. It is compatible with the Samsung IF012J and IF012J-E LED cabinets.

Key Features

• X-axis adjustment — Lateral shift adjustments enable precise left-to-right LED cabinet positioning across the wall.
• Y-axis adjustment — Vertical shift adjustments deliver accurate cabinet-to-cabinet alignment for a uniform image.
• Z-axis adjustment — Plumb adjustments compensate for wall imperfections to achieve a perfectly flat mounting surface.
• Modular design — Attaches to the top, bottom, and sides of other TiLED mounts to support large, creative video wall layouts.
• Offset mounting slots — Protect the sides of the LED cabinets from friction damage during installation.
• Low-profile depth — Maintains a 3.85 in to 4.60 in depth with the display for a clean, wall-hugging result.
• Stock availability — Ships as a standard solution with no custom lead times or project registration required.

Typical Applications

• Digital signage
• Conference room
• Broadcast studio
• Commercial meeting space
• Auditorium

Technical Specifications

Frequently Asked Questions

Which displays does the TIL1X3IFJ support?
It is engineered for the Samsung IFJ Series dvLED cabinets, specifically the IF012J and IF012J-E.

How many displays can it mount?
This kit supports three displays stacked vertically in a 1x3 portrait column.

Does it allow fine alignment after installation?
Yes. Independent X, Y, and Z-axis adjustments let you set lateral position, cabinet alignment, and plumb for a flat wall.

How is cabinet damage prevented during install?
Offset mounting slots protect the LED display edges from friction as cabinets are seated.

Is project registration required to order?
No. It is a standard off-the-shelf solution that ships without custom lead times or registration.

What warranty applies?
It is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
