Chief FUSION™ Micro-Adjustable Large Ceiling Mounted 3 x 3 Video Wall Solutions - LCM3X3U

Product Overview

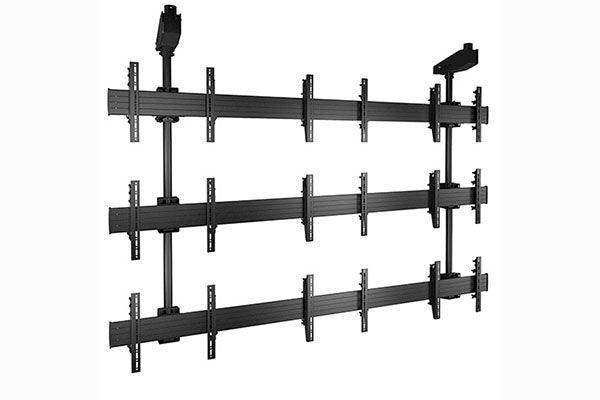

The Chief LCM3X3U is a Fusion micro-adjustable ceiling-mounted 3x3 video wall mount, engineered for digital signage and video wall installations where wall space is not available. This ceiling video wall mount supports a 3-wide by 3-high array of displays up to 55" and 85 lbs each, with tool-free height and plumb adjustment for fast, precise alignment. ControlZone leveling and infinite lateral positioning let integrators close gaps for tight rows and columns. It is ideal for open-plan lobbies, retail, and transit environments where a suspended video wall maximizes visibility.

Product Description

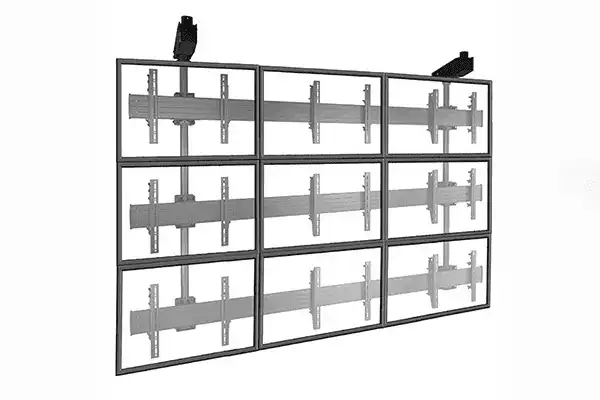

The Chief Fusion LCM3X3U ceiling-mounted video wall solution makes it possible to construct a nine-display video wall in prominent locations where walls are unavailable, which makes it a strong fit for digital signage. Built on the Fusion micro-adjustable platform, it offers precise screen alignment through independent height and plumb knobs that require no tools. ControlZone leveling provides micro-height and leveling adjustment at every column intersection, while infinite vertical and lateral positioning lets installers achieve tight display rows and columns for a seam-free image. Heavy-duty construction supports displays up to 55" and 85 lbs (38.5 kg) per screen. The system is configurable — arrays can be added side by side to create larger video wall arrangements up to three screens tall. A ceiling plate and extension column are required and must be ordered separately; the mount is compatible with traditional 1.5" NPT and the newer CPA pinned ceiling plate and column systems. Rear aesthetic covering is available through the Chief Fusion Universal Back Covers. Confirm display compatibility with MountFinder before specifying. For a portrait ceiling configuration, compare the Chief LCM3X2U ceiling video wall mount, or browse the full Chief mounting collection for wall and freestanding options.

Key Features

• Precise Screen Alignment — Independent height and plumb knobs let installers align displays with no tools required.
• ControlZone Leveling — Micro-height and leveling adjustment at every column intersection point keeps the array true.
• Infinite Screen Positioning — Infinite vertical and lateral adjustment delivers tight display rows and columns.
• Heavy-Duty Construction — Supports displays up to 55" and 85 lbs (38.5 kg) per screen.
• Configurable Arrays — Add configurations side by side to build video wall arrangements up to three screens tall.
• Flexible Ceiling Compatibility — Works with traditional 1.5" NPT and new CPA pinned ceiling plate and column systems (ordered separately).

Typical Applications

• Digital signage in open-plan lobbies and retail
• Transit hubs and airports
• Commercial meeting and all-hands spaces
• Broadcast studios and production sets
• Government and command-center spaces
• Houses of worship

Technical Specifications

Frequently Asked Questions

What display size and weight does the LCM3X3U support?
It supports displays up to 55" and 85 lbs (38.5 kg) per screen across a 3x3 array.

Is a ceiling plate included?
No. A ceiling plate and extension column are required and must be ordered separately. The mount is compatible with traditional 1.5" NPT and new CPA pinned systems.

How are displays aligned on a ceiling mount?
Tool-free height and plumb knobs, ControlZone leveling at column intersections, and infinite vertical and lateral positioning let installers close gaps for a seam-free image.

Can the array be expanded?
Yes. Configurations can be added side by side to create larger video walls up to three screens tall. Confirm display compatibility with MountFinder.

How is the rear of the video wall finished?
Rear aesthetic covering is available through the Chief Fusion Universal Back Covers.

What ceiling structure is required?
The supporting structure must be rated for the full array weight. Plan the ceiling plate and column system to match the total display and mount load.

What warranty applies and how do I get support?
The system is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and AV system integration support.
