Chief FUSION™ Micro-Adjustable Large Ceiling Mounted 3 x 2 Video Wall Solutions - LCM3X2U

Product Overview

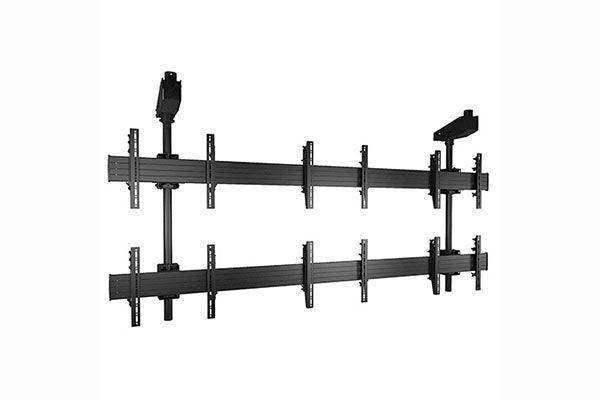

The Chief LCM3X2U is a FUSION micro-adjustable ceiling mounted video wall mount that builds a 3x2 array in locations where wall space is unavailable. It is designed for commercial digital signage and video wall installations in lobbies, atriums, and open retail floors. This ceiling mounted 3x2 video wall solution supports displays up to 55 inches and 125 lbs per screen, with micro-adjustment for tight, even seams.

Product Description

Chief's FUSION ceiling mounted solutions make it possible to construct video walls in prominent locations where walls are not available, which is common in digital signage installations. The LCM3X2U holds a 3x2 arrangement and uses independent knobs for height and plumb adjustment that require no tools during alignment. ControlZone leveling provides micro-height and leveling adjustment at every column intersection point, while infinite vertical and lateral positioning lets integrators close up display rows and columns for tight seams. The assembly supports displays up to 55 inches and 125 lbs per screen, and configurations can be added side by side to create video wall arrangements up to three screens tall. A ceiling plate and extension column are required and must be ordered separately; the mount is compatible with traditional 1.5-inch NPT and the newer CPA pinned ceiling plate and column systems. Aesthetic rear coverage is available through Chief Fusion Universal Back Covers. The result is a commercial-grade ceiling mounted video wall that keeps a clean sightline in open architectural spaces. For wall-mounted and cart-based video wall options, see the full Chief collection at Creation Networks.

Key Features

• Precise Screen Alignment — Independent knobs for height and plumb adjustments let installers align displays without tools.
• ControlZone Leveling — Micro-height and leveling adjustment is available at all column intersection points for even seams.
• Infinite Screen Positioning — Continuous vertical and lateral adjustment closes up display rows and columns for tight gaps.
• Heavy-Duty Construction — Supports displays up to 55 inches and 125 lbs (56.7 kg) per screen.
• Configurable Array — Configurations add side by side to create video wall arrangements up to three screens tall.
• Ceiling System Compatibility — Works with traditional 1.5-inch NPT and new CPA pinned ceiling plates and column systems, ordered separately.

Typical Applications

• Commercial meeting space — Suspends a 3x2 video wall in lobbies and open corporate areas without wall structure.
• Government space — Displays public information and wayfinding in atriums and concourses.
• House of worship — Positions a video wall overhead for clear congregation sightlines.
• Auditorium — Mounts a digital signage array where floor and wall space are limited.
• Multi-purpose room — Provides an overhead display surface that keeps walls and floors clear.

Technical Specifications

Frequently Asked Questions

What size displays does the LCM3X2U support?
It is rated for displays up to 55 inches and 125 lbs per screen. Confirm your display dimensions and weight against the mount before ordering.

Do I need additional parts to install it?
Yes. A ceiling plate and extension column are required and must be ordered separately. The mount is compatible with 1.5-inch NPT and CPA pinned ceiling plate and column systems.

How are the displays aligned?
Independent height and plumb knobs and ControlZone leveling at column intersections allow tool-free micro-adjustment for tight, even seams.

Can I expand the video wall later?
Configurations can be added side by side to create larger arrangements up to three screens tall, subject to ceiling structure and column support.

How does this integrate with the rest of the AV system?
The LCM3X2U provides the mechanical mount only. Displays, signal distribution, and content sources are specified separately as part of the overall digital signage design.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and coverage details.
