BirdDog VideoWall Software with 9 x PLAY 4K NDI Players Kit - BDVW-9PACK
BirdDog VideoWall Software with 9 x PLAY 4K NDI Players Kit - BDVW-9PACK is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
BirdDog VideoWall Software with 9 x PLAY 4K NDI Players Kit - BDVW-...
Product Overview

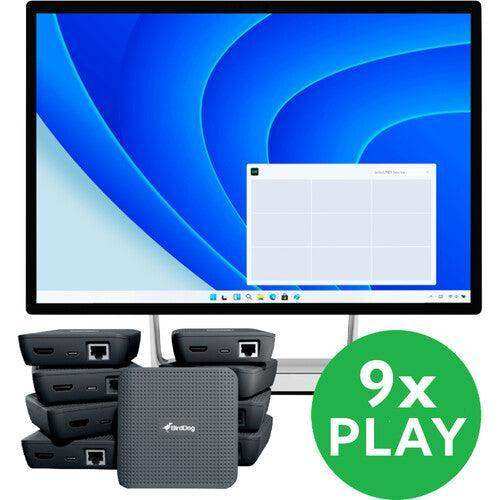

The BirdDog VideoWall Software with 9 x PLAY 4K NDI Players Kit bundles nine BirdDog PLAY NDI decoder units with a VideoWall Software license, providing a complete solution for a 3×3 nine-screen NDI video wall. Each PLAY unit connects to a display via HDMI, draws power from the display's USB port, and receives NDI®, NDI|HX2, or NDI|HX3 video from the network. The VideoWall software — a Windows 11 system tray application — assigns each PLAY to its screen position and distributes a single NDI source across the full 3×3 array. This kit is suited for corporate lobbies, large-scale digital signage, houses of worship with multi-screen IMAG setups, and event spaces requiring high-impact NDI video wall installations.
Product Description
The 9-Pack scales up the VideoWall concept to a full 3×3 display array using nine BirdDog PLAY units. Each PLAY attaches magnetically behind a screen or sits in front via a non-slip rubber grip ring, powered by the display's USB-C port. All nine units connect to the same Gigabit Ethernet switch. VideoWall software running on a Windows 11 machine handles assignment of each unit to its screen position and content distribution — no per-unit web configuration is required after initial setup. Source changes propagate across all nine screens simultaneously in two clicks.
VideoWall supports 1080p and 4K UHD progressive at up to 60fps per screen and is compatible with Full NDI, NDI|HX2, and NDI|HX3 including NDI® 5 features such as Reliable UDP. Combine with BirdDog Central 2.0 for playlist management and multi-site content distribution. For a 2×2 four-screen installation, see the BirdDog VideoWall 4-Pack.
Key Features
- 3×3 Video Wall Kit — 9 BirdDog PLAY units + VideoWall Software license; complete 9-screen NDI video wall solution.
- NDI® 5 Compatible — Full NDI, NDI|HX2, NDI|HX3 with Reliable UDP for stable multi-screen operation.
- 4K or 1080p per Screen — Supports progressive 1080p and 4K UHD inputs at up to 60fps.
- USB-C Powered — Each PLAY powers from the display's USB port; no external power runs.
- Windows 11 System Tray App — Lightweight software; minimal overhead on the host machine.
- Two-Click Source Selection — Change content on all 9 screens simultaneously without reconfiguring individual units.
- Central 2.0 Compatible — Add BirdDog Central 2.0 for playlist management and multi-site VideoWall control.
Typical Applications
- Digital signage
- House of worship IMAG
- Commercial meeting space
- Conference room
- All-hands room
- Multi-purpose room
Technical Specifications
| Specification | Value |
|---|---|
| Kit Contents | 9 × BirdDog PLAY NDI decoder + 1 × VideoWall Software license |
| Video Wall Config | 3×3 (9-screen) |
| NDI Protocols | Full NDI (max 1080p60); NDI|HX2/HX3 (max 4K60) |
| Supported Resolutions | 1080p and 4K UHD progressive, up to 60fps |
| PLAY Power | USB-C (from display USB or adapter) |
| PLAY Output | HDMI 2.0 |
| VideoWall Software OS | Windows 11 |
| Network | 1GbE per PLAY; Layer-3 DHCP-enabled switch required |
| PLAY Dimensions | 85 × 85 × 19mm; 97g each |
Frequently Asked Questions
How much network bandwidth does the 9-Pack require?
Each PLAY unit receives a separate NDI stream (or a tile of a single stream). If all nine screens display the same source via VideoWall software, one 4K NDI|HX3 source at approximately 40–80Mbps is split across all nine units. Each PLAY requires its own Gigabit Ethernet port. A Layer-3 managed switch with DHCP is recommended for installations of this scale.
Can the 9-Pack use a mix of 4K and 1080p screens?
Yes. Each PLAY unit outputs up to 4K via HDMI 2.0 when connected to a 4K display receiving NDI|HX2/HX3. Connecting a PLAY to a 1080p display automatically outputs 1080p.
Is a 9-screen video wall cheaper than buying components separately?
Yes. The VideoWall 9-Pack bundles the VideoWall Software license with nine PLAY units at a discount versus purchasing each PLAY individually plus a standalone software license.
Does the VideoWall software need to run continuously?
Yes for active display. The VideoWall software maintains the NDI routing to each PLAY unit. It runs as a system tray app and can be minimized; closing it stops the video wall streams.
