BirdDog P4K 4K Full NDI PTZ Camera with 1" Sony Sensor (White) - BDP4KWHITE
BirdDog P4K 4K Full NDI PTZ Camera with 1" Sony Sensor (White) - BDP4KWHITE is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
BirdDog P4K 4K Full NDI PTZ Camera with 1" Sony Sensor (White)...
Product Overview

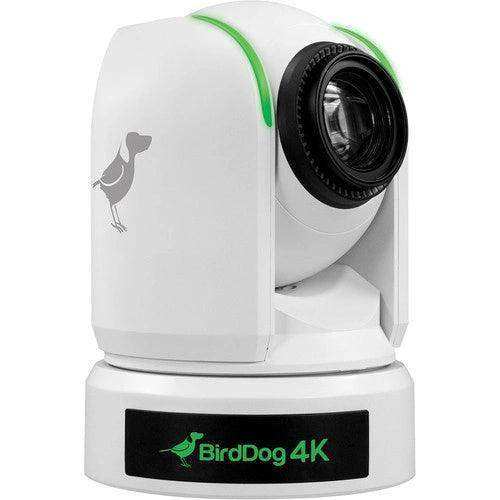

The BirdDog P4K (White) is a commercial-grade 4K Full NDI® PTZ camera built around a 1" Sony Exmor R CMOS backlit sensor — the largest sensor format available in the NDI PTZ category. Designed for broadcast studios, houses of worship, auditoriums, and AV system integration, the P4K delivers 4K UHD video over Full Bandwidth NDI® on a single Gigabit Ethernet cable with simultaneous 6G-SDI and HDMI outputs. It integrates directly with NDI production environments including TriCaster, vMix, OBS, and BirdDog Central, making it a practical choice for integrators and AV designers deploying IP video in commercial spaces. The white finish makes it particularly suitable for ceiling-mount installations in venues where aesthetics matter.
Product Description
At the core of the P4K is a 14.2-megapixel 1" Sony Exmor R CMOS backlit sensor — a sensor format previously associated with cinema and broadcast cameras. This gives the P4K substantially more light-gathering capability than 1/2.5" or 1/2.8" sensors common in other NDI PTZ cameras, making it well-suited for large sanctuaries, performance venues, and auditoriums where lighting varies and image quality is critical. The 12x optical zoom with Super Resolution Zoom (18x in 4K, 24x in HD) provides flexibility from wide-room coverage to tight close-ups without sacrificing resolution.

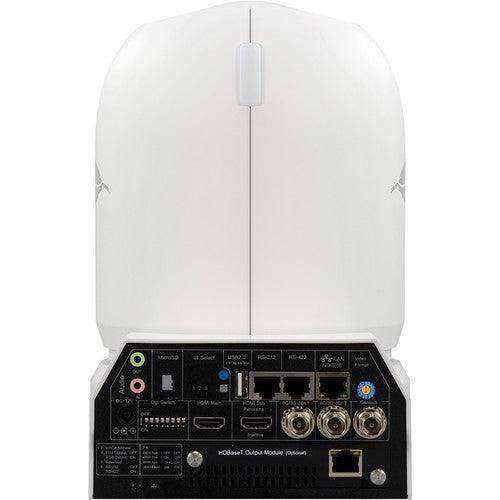

The P4K transmits Full Bandwidth NDI® over standard Gigabit Ethernet — visually lossless 4K video on a single network cable. The camera outputs simultaneously via one 4K HDMI Type-A port and two 6G-SDI ports (or Dual Link 3G-SDI), making it compatible with both IP-based AV systems and traditional SDI production environments. Control is handled via NDI auto-configuration, VISCA IP, or RS-232/RS-422 serial — the full range of protocols required for integration with hardware switchers, control systems, and third-party PTZ controllers. Power is via PoE+ (IEEE 802.3at) or 12V DC. The camera includes bi-color tally lights front and back for production use, 128 speed-adjustable presets, and full BirdUI browser-based configuration with RESTful API support for Crestron, AMX, and Q-SYS integration. Pair with the BirdDog KBD PTZ Controller for professional multi-camera control.
Key Features
- 1" Sony Exmor R CMOS Backlit Sensor — 14.2MP large-format sensor delivers superior low-light performance versus 1/2.5" class sensors.
- 4K UHD Full NDI® Output — Visually lossless 4K transmission over Gigabit Ethernet; no long-GOP compression artifacts.
- 12x Optical / Super Resolution Zoom — 18x SRZ in 4K, 24x in HD for extended reach without image degradation.
- Simultaneous 6G-SDI and HDMI — Two 6G-SDI ports plus 4K HDMI for hybrid IP/SDI production environments.
- PoE+ Single-Cable Installation — IEEE 802.3at PoE+ or 12V DC; power and data on one cable.
- NDI Auto-Configuration — Appears on the network automatically; full VISCA IP and RS-422 serial support.
- 128 Speed-Adjustable Presets — Preset recall at up to 150°/s with 0–5 speed levels.
- Bi-Color Tally Front and Back — Program/preview tally visible to talent and crew simultaneously.
- BirdUI Browser Control + RESTful API — Full remote configuration and Crestron/Q-SYS integration.
- 5-Year Global Warranty — Commercial-grade coverage for permanent installations.
Typical Applications
- Broadcast studio
- House of worship
- Auditorium
- All-hands room
- Multi-purpose room
- Government space
- Conference room
Technical Specifications
| Specification | Value |
|---|---|
| Image Sensor | 1" Sony Exmor R CMOS Backlit, 14.2MP |
| Max Resolution | 4K UHD (3840×2160) |
| 4K Video Formats | 4Kp 29.97, 25, 24, 23.98 |
| HD Video Formats | 1080p 60/59.94/50/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 |
| Optical Zoom | 12x |
| Digital Zoom (SRZ) | 18x in 4K; 24x in HD |
| Horizontal FOV | 64.6°(W) – 6.1°(T) |
| Aperture | F2.8 constant (16 steps) |
| Min Illumination | 0.5 lux (High Sensitivity mode, 1/30s) |
| Pan Range | ±175° (up to 150°/s) |
| Tilt Range | +90° to -30° |
| Preset Positions | 128 speed-adjustable |
| Video Outputs | 4K HDMI Type-A (×1); 6G-SDI (×2) or Dual Link 3G-SDI; 1GbE Network (Full NDI) |
| NDI Protocol | Full Bandwidth NDI® only |
| SDI Color Space | YCbCr 4:2:2 10-bit |
| HDMI Color Space | YCbCr 4:2:2 12-bit; RGB 8-bit |
| Audio | 3.5mm Stereo In/Out; embedded in HDMI, SDI, and NDI stream (24-bit) |
| Control Protocols | NDI Control (auto-config), VISCA IP, VISCA RS-232, RS-422 |
| Network Interface | 1× RJ45 1000Mb Gigabit Ethernet |
| Power | 12V DC or PoE+ IEEE 802.3at |
| Power Consumption | Min 24.4W – Max 28W |
| Tally | Bi-color, front and back |
| Operating Temperature | -10°C to +40°C |
| Dimensions | 165 × 196 × 247mm |
| Weight | 3.4kg |
| Warranty | 5 years global |
Frequently Asked Questions
Does the P4K support NDI|HX?
No. The P4K outputs Full Bandwidth NDI® only. Full NDI delivers visually lossless 4K at approximately 140–200Mbps and requires Gigabit Ethernet infrastructure. For NDI|HX3 in 4K60, see the BirdDog X5 Ultra.
What production software is compatible?
The P4K works with any NDI-enabled platform: NewTek TriCaster, Vizrt, vMix, OBS Studio (NDI plugin), Wirecast, and BirdDog Central. VISCA IP and RS-422 serial control are also available.
What PTZ keyboard is compatible?
The BirdDog KBD supports NDI, VISCA, and RS-422 and is compatible with the P4K. Note: the KBD's live multiview requires NDI|HX streams; P4K Full NDI sources display identification text on the KBD screen.
What is the maximum 4K frame rate?
The P4K outputs 4K UHD at up to 4Kp30 (29.97/25/24/23.98fps). For 4K60, see the BirdDog X5 Ultra.
What PoE standard is required?
The P4K requires PoE+ (IEEE 802.3at) at up to 28W maximum. Standard PoE (802.3af) is insufficient. Verify your switch provides at least 30W per port.
What mounting options are available?
The BirdDog P-series wall mount supports ceiling, wall, and pole configurations and is compatible with the P4K.
What is the warranty?
BirdDog P-series cameras carry a 5-year global warranty. Contact BirdDog support at birddog.tv/support for service claims.
