BirdDog P4K 4K Full NDI PTZ 3-Camera Kit (Black) - BDP4KBUNDLE-BBB
Product Overview

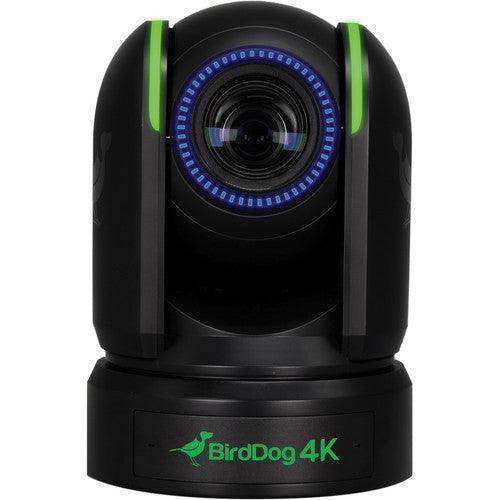

The BirdDog P4K 4K Full NDI PTZ 3-Camera Kit (Black) includes three black BirdDog P4K cameras — the highest-specification NDI PTZ camera kit available from BirdDog, built around three 1" Sony Exmor R CMOS sensors. Designed for flagship broadcast studios, large houses of worship, auditoriums, and demanding AV system integrations, this kit delivers three channels of visually lossless 4K Full NDI® video with simultaneous 6G-SDI and HDMI outputs, all powered by PoE+. Purchasing as a three-camera kit provides a cost advantage over individual P4K units and ensures a matched, color-consistent production system.
Product Description
Each BirdDog P4K in this kit uses a 14.2-megapixel 1" Sony Exmor R CMOS backlit sensor — the largest sensor format available in any NDI PTZ camera. The 1" sensor delivers significantly better low-light performance, dynamic range, and depth-of-field control compared to 1/2.5" sensors in other 4K NDI cameras, making this kit the appropriate choice for large-venue productions where image quality is the primary specification driver. The 12x optical zoom extends via Super Resolution Zoom to 18x in 4K and 24x in HD.
All three cameras transmit Full Bandwidth NDI® over standard Gigabit Ethernet. Each camera outputs simultaneously via one 4K HDMI Type-A port and two 6G-SDI ports (or Dual Link 3G-SDI), supporting both IP-based and traditional SDI production environments. Control is via NDI auto-configuration, VISCA IP, or RS-232/RS-422 serial. Each camera draws max 28W via PoE+ (IEEE 802.3at). Features include bi-color tally front and back, 128 speed-adjustable presets, F2.8 constant aperture, and browser-based BirdUI configuration with RESTful API support. Add the BirdDog KBD PTZ Controller for professional multi-camera control. Mixed-color and white configurations are also available — view all P4K bundle variants.
Key Features
- 3 × BirdDog P4K Cameras (All Black) — Three matched 1" sensor 4K Full NDI cameras in a single order.
- 1" Sony Exmor R CMOS Backlit Sensor Per Camera — 14.2MP; the largest NDI PTZ sensor class for maximum low-light and image quality performance.
- 12x Optical + Super Resolution Zoom — 18x SRZ in 4K, 24x in HD per camera.
- Full NDI® Over Gigabit Ethernet — Visually lossless 4K transmission; no dedicated SDI infrastructure required for video transport.
- Simultaneous 6G-SDI (×2) and 4K HDMI Per Camera — Complete IP/SDI hybrid compatibility throughout the kit.
- F2.8 Constant Aperture — 16-step iris control; consistent exposure across zoom range.
- PoE+ Powered — IEEE 802.3at, max 28W per camera; single-cable deployment at every position.
- Bi-Color Tally Front and Back — Program/preview tally on each camera, visible to talent and crew.
- 128 Speed-Adjustable Presets Per Camera — Recall at up to 150°/s with 0–5 speed levels.
- 5-Year Global Warranty — All three cameras covered by BirdDog's commercial warranty.
Typical Applications
- Broadcast studio
- House of worship
- Auditorium
- All-hands room
- Multi-purpose room
- Government space
- Conference room
Technical Specifications (Per Camera)
| Specification | Value |
|---|---|
| Image Sensor | 1" Sony Exmor R CMOS Backlit, 14.2MP |
| Max Resolution | 4K UHD (3840×2160) |
| 4K Video Formats | 4Kp 29.97, 25, 24, 23.98 |
| HD Video Formats | 1080p 60/59.94/50/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 |
| Optical Zoom | 12x |
| Super Resolution Zoom | 18x in 4K; 24x in HD |
| Aperture | F2.8 constant (16 steps) |
| Min Illumination | 0.5 lux (High Sensitivity, 1/30s) |
| Horizontal FOV | 64.6°(W) – 6.1°(T) |
| Pan Range | ±175° (up to 150°/s) |
| Tilt Range | +90° to -30° |
| Preset Positions | 128 speed-adjustable |
| NDI Protocol | Full Bandwidth NDI® only |

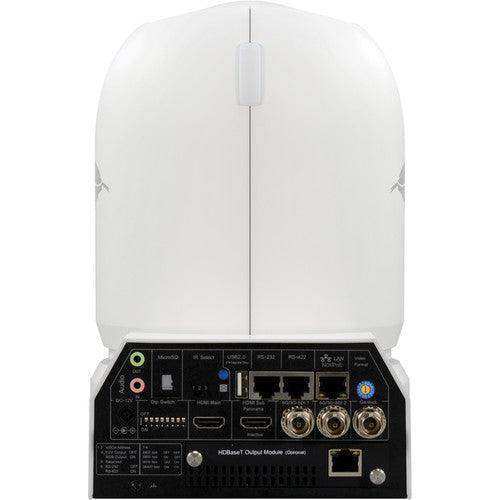

| Video Outputs | 4K HDMI Type-A (×1); 6G-SDI (×2) or Dual Link 3G-SDI; 1GbE Network |
| SDI Color Space | YCbCr 4:2:2 10-bit |
| HDMI Color Space | YCbCr 4:2:2 12-bit; RGB 8-bit |
| Audio | 3.5mm Stereo In/Out; embedded in HDMI, SDI, NDI (24-bit) |
| Control | NDI (auto-config), VISCA IP, RS-232/RS-422 |
| Power | 12V DC or PoE+ IEEE 802.3at; min 24.4W – max 28W |
| Tally | Bi-color front and back |
| Dimensions | 165 × 196 × 247mm; 3.4kg |
| Operating Temperature | -10°C to +40°C |
| Warranty | 5 years global |
Frequently Asked Questions
Why choose the P4K kit over a P400 kit?
The P4K uses a 1" 14.2MP Sony Exmor R sensor versus the P400's 1/2.5" 8.5MP sensor. The larger sensor delivers significantly better low-light performance, depth-of-field separation, and dynamic range. It is the appropriate choice when image quality is the primary requirement — particularly in large sanctuaries, flagship broadcast studios, or government facilities with critical production standards.
Does the P4K support NDI|HX?
No. All three P4K cameras in this kit transmit Full Bandwidth NDI® only, requiring approximately 140–200Mbps per camera stream on Gigabit Ethernet. For NDI|HX3 at 4K60, see the BirdDog X5 Ultra.
Is a PTZ keyboard included?

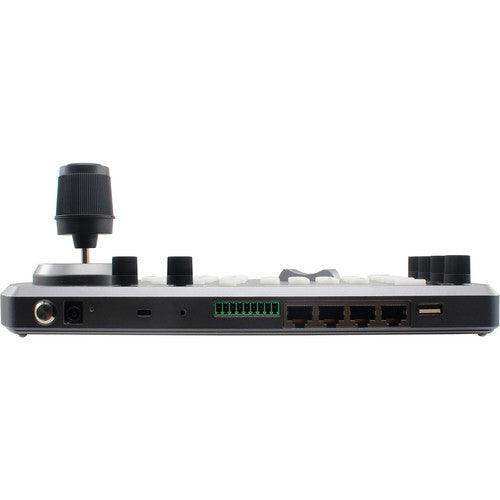

No. This kit includes three P4K cameras only. The BirdDog KBD PTZ Controller is available separately for centralized multi-camera control.
What switch infrastructure do three P4K cameras require?
Three P4K cameras at 4K generate approximately 420–600Mbps aggregate NDI traffic. A managed Gigabit switch with IGMP snooping, at minimum 1Gbps uplink capacity, and PoE+ budget of at least 90W is recommended for a three-camera deployment.
Are mixed-color and white P4K kits available?
Yes. P4K 3-camera kits are available in all-black, all-white, 2 black + 1 white, and 1 black + 2 white configurations. View all P4K bundle variants.
What is the warranty on this kit?
All three BirdDog P4K cameras carry a 5-year global warranty from BirdDog.
