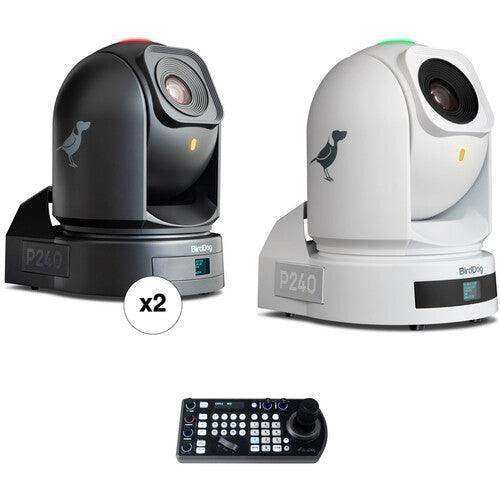

BirdDog P240 40X Full NDI PTZ Camera Bundle (2 x Black, 1 x White) - BDP240BUNDLE-WBB

BirdDog SKU: BDP240BUNDLE-WBB
No reviews

Price:
Sale price$8,997.00

Description

Add three powerful PTZ cameras to your education environment, event space, or house of worship with this BirdDog P240 40X Full NDI PTZ Camera Bundle put together. The bundle includes two black P240 40X Full NDI PTZ cameras and one white P240 40X Full NDI PTZ camera.

Highlights of the P240 include a 40x zoom, HDMI/3G-SDI output, full NDI 5.5 support, XLR audio input/output with phantom power, and an integrated ND filter.

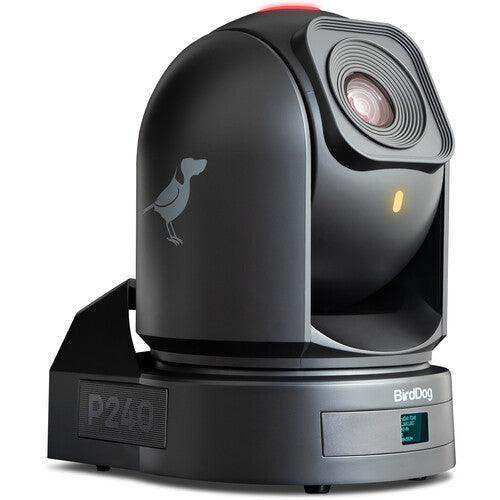

BirdDog P240 40X Full NDI PTZ Camera with HDMI/3G-SDI (Black)

The black P240 40X Full NDI PTZ Camera with HDMI/3G-SDI from BirdDog is a Full NDI PTZ camera that offers increased light sensitivity via its Sony Exmor 1/2.5" CMOS 8.5MP sensor while capturing sharp and vivid images in resolutions up to 1080p60. Output options include NDI, HDMI, and 3G-SDI as well as balanced XLR audio via an optional breakout cable. The camera features an integrated ND filter.

The IP output delivers Full NDI and other flavors of NDI, with optional BirdDog Cloud 3.0 integration unlocking access from globally connected, remote production locations. The IP address is visible via the integrated OLED display, which also displays the device name, stream name, resolution, and frame rate being used. The P240 supports Full NDI 5.5 for optimal compatibility across all NDI ecosystems.

NDI Video Scopes The P240 can generate scopes to send out as NDI, NDI Proxy, or both. This allows for monitoring scopes on the NDI Proxy while sending a clean main NDI feed simultaneously. Choose from histogram, waveform, vectorscope, or RGB parade and the position on the NDI stream. 360° Mohawk Tally The innovative Mohawk tally gives a full 360° view, so you'll never be caught out wondering which camera you need to be talking to. NDI Genlock Select an NDI source to be the timing master to provide more predictable timing in multi-camera environments. FreeD for Free FreeD is a protocol for sending PTZ positioning data to AR/VR systems including Unreal Engine, Brainstorm, Vizrt's Viz Virtual Studio, and it's all built right into the BirdUI. Free Software Tools Central Lite



  • Team up Central Lite with any NDI source, including all BirdDog hardware capable of creating NDI sources, and you can now drive your NDI streams to any BirdDog Studio NDI or Mini to decode NDI back to SDI or HDMI.

Cam Control

  • Cam Control allows easy access to all settings of all the BirdDog cameras on your network. Get the look you want on the full-screen output monitor and then copy across multiple cameras to color match in seconds.

Comms Lite

  • Comms Lite is your free audio intercom solution with support for four BirdDog devices, plus a director
Globally Connected, No Computers Needed By adding an optional BirdDog Cloud subscription, you can now access the PTZ cameras and all features from anywhere in the world. No computers needed on the camera side. Wide Format Support Along with Full NDI, the P240 supports NDI|HX2, NDI|HX3, SRT, and h.264 for low-bandwidth requirements

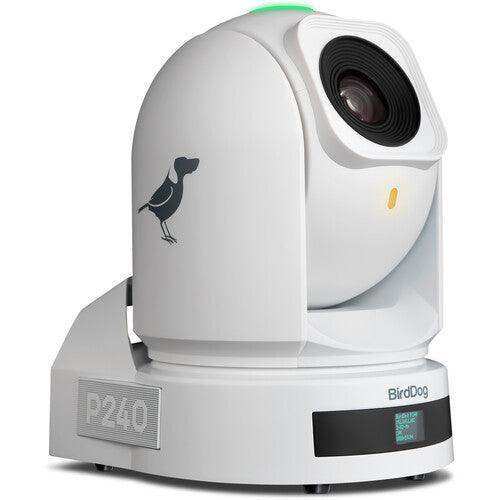

BirdDog P240 40X Full NDI PTZ Camera with HDMI/3G-SDI (White)

The white P240 40X Full NDI PTZ Camera with HDMI/3G-SDI from BirdDog is a Full NDI PTZ camera that offers increased light sensitivity via its Sony Exmor 1/2.5" CMOS 8.5MP sensor while capturing sharp and vivid images in resolutions up to 1080p60. Output options include NDI, HDMI, and 3G-SDI as well as balanced XLR audio via an optional breakout cable. The camera features an integrated ND filter.

The IP output delivers Full NDI and other flavors of NDI, with optional BirdDog Cloud 3.0 integration unlocking access from globally connected, remote production locations. The IP address is visible via the integrated OLED display, which also displays the device name, stream name, resolution, and frame rate being used. The P240 supports Full NDI 5.5 for optimal compatibility across all NDI ecosystems.

NDI Video Scopes The P240 can generate scopes to send out as NDI, NDI Proxy, or both. This allows for monitoring scopes on the NDI Proxy while sending a clean main NDI feed simultaneously. Choose from histogram, waveform, vectorscope, or RGB parade and the position on the NDI stream. 360° Mohawk Tally The innovative Mohawk tally gives a full 360° view, so you'll never be caught out wondering which camera you need to be talking to. NDI Genlock Select an NDI source to be the timing master to provide more predictable timing in multi-camera environments. FreeD for Free FreeD is a protocol for sending PTZ positioning data to AR/VR systems including Unreal Engine, Brainstorm, Vizrt's Viz Virtual Studio, and it's all built right into the BirdUI. Free Software Tools Central Lite



  • Team up Central Lite with any NDI source, including all BirdDog hardware capable of creating NDI sources, and you can now drive your NDI streams to any BirdDog Studio NDI or Mini to decode NDI back to SDI or HDMI.

Cam Control

  • Cam Control allows easy access to all settings of all the BirdDog cameras on your network. Get the look you want on the full-screen output monitor and then copy across multiple cameras to color match in seconds.

Comms Lite

  • Comms Lite is your free audio intercom solution with support for four BirdDog devices, plus a director
Globally Connected, No Computers Needed By adding an optional BirdDog Cloud subscription, you can now access the PTZ cameras and all features from anywhere in the world. No computers needed on the camera side. Wide Format Support Along with Full NDI, the P240 supports NDI|HX2, NDI|HX3, SRT, and h.264 for low-bandwidth requirements

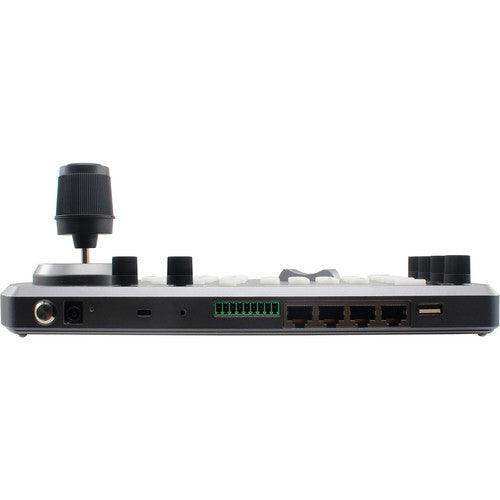

BirdDog PTZ Keyboard

Control up to 255 PTZ cameras on a single network with the ergonomically designed BirdDog PTZ Keyboard. The keyboard is compatible with NDI, NDI|HX, Visca over IP, RS-422, and RS-232 protocols, and can also be powered over those same connections as an alternative to DC-in power.

The keyboard features multi-colored and programmable buttons and knobs, and it has a joystick and rocker for zoom control. Control your PTZ camera's exposure, white balance, backlight, gain, shutter, focus, iris, shutter speed, and zoom with the touch of a button or the turn of a knob. You can also set up to 256 memory presets with different parameters and camera moves. The PTZ Keyboard is also compatible with NDI and BirdDog Comms Audio Intercom systems run from a Windows computer.

Universal Control The PTZ Keyboard features NDI and NDI|HX, Visca over IP, RS-422, and RS-232 support for control over PTZ cameras Features Buttons and controls include exposure, focus, PT speed, zoom, shutter speed, iris, white balance, compensation, multi-colored buttons for visual cues, 256 memory presets for parameters and camera moves, and more Network Control over 255 PTZ cameras on a single network Ergonomics The keyboard's button layout allows you to quickly access all the cameras on the network and set up quick access buttons for all your favorite settings such as exposure, focus, zoom, and movement speeds Power Flexible options allow you to power the PTZ Keyboard from Power over Ethernet (PoE), DC in, or over the serial port Comms The PTZ Keyboard offers Audio Intercom support over NDI and is compatible with BirdDog Comms. Comms is a complete Audio Intercom solution which can run on any Windows 10 compatible computer, laptop, or surface for a touchscreen experience
  • 2 x Black Cameras, 1 x White Camera
  • 1/2.5" Exmor R CMOS Sensor, 8.5MP
  • 40x Optical Zoom, Full NDI 5.5 Support
  • NDI/HDMI/3G-SDI Outputs, XLR Input
Image Sensor 1/2.5"-Type CMOS
Sensor Resolution Effective: 8.5 Megapixel
Shutter Type Electronic Rolling Shutter
Shutter Speed 1 to 10,000 Seconds
Optical Zoom Ratio 40x
External Recording Modes SDI/BNC / HDMI / RJ45
1920 x 1080 at 23.98/25/29.97/50/59.94 fps
1920 x 1080
1280 x 720 at 50/59.94 fps

IP Streaming H.264, NDI|HX, RTMP, RTSP, SRT
1920 x 1080 at 23.98p, 25p, 29.97p, 50p, 59.94p
Supported Control Protocols IP
NDI
Pelco-D
RS-232
RS-422
VISCA

PoE Support PoE+ 802.3at
