BirdDog P240 40X Full NDI PTZ 3-Camera Bundle (Black) - BDP240BUNDLE-BBB
BirdDog P240 40X Full NDI PTZ 3-Camera Bundle (Black) - BDP240BUNDLE-BBB is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
BirdDog P240 40X Full NDI PTZ 3-Camera Bundle (Black) - BDP240BUNDL...
Product Overview
The BirdDog P240 40X Full NDI PTZ 3-Camera Bundle (Black) includes three black BirdDog P240 cameras — a cost-effective way to deploy a complete three-camera NDI production environment for education, house of worship, event spaces, and corporate AV. The P240 features an 8.5MP 1/2.5" Sony Exmor R CMOS sensor, up to 40x optical zoom (native scan mode), Full NDI® and NDI|HX2/HX3 with SRT/RTMP/RTSP, balanced XLR audio input with 48V phantom power, an OLED display, and bi-color full tally. Buying as a 3-camera bundle provides a pricing advantage over purchasing cameras individually.
Product Description
The BirdDog P240 is BirdDog's highest-zoom 1080p Full NDI PTZ camera, with 40x optical zoom in native scan mode and Super Resolution Zoom up to 40x in HD — ideal for large-venue production requiring tight coverage from a fixed camera position. The 8.5MP 1/2.5" Sony Exmor R CMOS sensor delivers 1080p at up to 60fps with a minimum illumination of 0.4 lux in high-sensitivity mode, suitable for low-light sanctuaries and event spaces. The balanced XLR audio input with 48V phantom power supports condenser microphones directly at the camera, simplifying audio routing in multi-camera setups without separate preamp hardware.
Each P240 in this bundle supports Full Bandwidth NDI® as well as NDI|HX2/HX3, SRT, RTMP, and RTSP, giving AV integrators full protocol flexibility on a single Gigabit Ethernet connection. The 5-line RGB OLED display provides at-a-glance camera status without connecting to the BirdUI interface. Bi-color full tally (overhead and rear, with included 1–3 number silicon plugs) provides talent-facing and crew-facing program/preview indication. Control via NDI auto-configuration, VISCA IP, and dual RS-232/RS-422/RS-485 RJ45 serial ports. Each camera is PoE+ (802.3at) powered. Compatible with the BirdDog KBD PTZ Controller for centralized multi-camera control. Also available in mixed color configurations: see all P240 bundle variants.
Key Features
- 3 × BirdDog P240 Cameras (All Black) — Complete three-camera NDI production kit in a single order.
- 8.5MP Sony Exmor R CMOS Sensor — 1/2.5" format; 0.4 lux minimum illumination in high-sensitivity mode.
- 40x Optical Zoom — Native scan mode; Super Resolution Zoom up to 40x in HD for full-room and tight-shot coverage.
- Full NDI + NDI|HX2/HX3 + SRT/RTMP/RTSP — Full protocol flexibility on a single Gigabit Ethernet connection.
- Balanced XLR Audio In with 48V Phantom Power — Professional audio at the camera position; supports condenser microphones without separate preamps.
- 5-Line RGB OLED Display — Camera status at a glance; no web interface required for basic monitoring.
- Bi-Color Full Tally — Overhead and rear tally with numbered silicon plugs for talent-facing and crew-facing program/preview indication.
- Dual RS-232/RS-422/RS-485 Control Ports — Two RJ45 serial ports for daisy-chain and legacy controller integration.
- PoE+ Powered — IEEE 802.3at, max 22.5W per camera; single-cable installation.
Typical Applications
- House of worship
- Auditorium
- Broadcast studio
- Training room
- All-hands room
- Multi-purpose room
- Conference room
Technical Specifications (Per Camera)
| Specification | Value |
|---|---|
| Image Sensor | 1/2.5" Sony Exmor R CMOS Backlit, 8.5MP |
| Max Resolution | 1080p |
| HD Video Formats | 1080p 60/59.94/50/30/29.97/25; 1080i 60/59.94/50; 720p 60/59.94/50 |
| Optical Zoom | Up to 40x (native scan mode) |
| Digital Zoom (SRZ) | Up to 40x in HD |
| Horizontal FOV | 70.2°(W) – 4.1°(T) |
| Aperture | F2.0(W) – F3.8(T) |
| Min Illumination | 0.4 lux (High Sensitivity, 1/30s) |
| Pan Range | ±175° (up to 150°/s) |
| Tilt Range | +90° to -30° |
| Preset Positions | 128 speed-adjustable (up to 150°/s) |
| Video Outputs | HDMI; 3G-SDI; 1GbE Network |
| Network Video Protocols | Full Bandwidth NDI®, NDI|HX2/HX3, SRT, RTMP, RTSP |
| Audio Input | Balanced XLR (via breakout cable, 48V phantom); unbalanced 3.5mm TRS |
| Audio Output | Balanced XLR (via breakout cable); unbalanced 3.5mm TRS |
| Display | 5-line RGB OLED graphical |
| Tally | Bi-color full overhead and rear (with 1–3 number silicon plugs) |
| Control Protocols | NDI Control, VISCA IP, VISCA/Pelco-D RS-232/RS-422/RS-485 |
| Serial Control | 2× RJ45: RS-232/RS-422/RS-485 |
| Power | 12V DC or PoE+ IEEE 802.3at; max 22.5W |
| Dimensions | 163 × 199 × 231mm |
| Weight | 2.395kg |
Frequently Asked Questions
What does this bundle include?
This bundle includes three BirdDog P240 cameras in black (SKU BDP240BUNDLE-BBB). No PTZ keyboard or switcher is included. For a keyboard controller, add the BirdDog KBD separately.
Is the P240 available in mixed color bundles?
Yes. BirdDog P240 3-camera bundles are available in all-black, all-white, 2 black + 1 white, and 2 white + 1 black configurations. View all P240 bundle variants.
Does the P240 support NDI|HX?
Yes. The P240 supports Full Bandwidth NDI®, NDI|HX2, NDI|HX3, SRT, RTMP, and RTSP — one of the key advantages over the P400 and P4K which support Full NDI only.
What PTZ keyboard works with the P240?

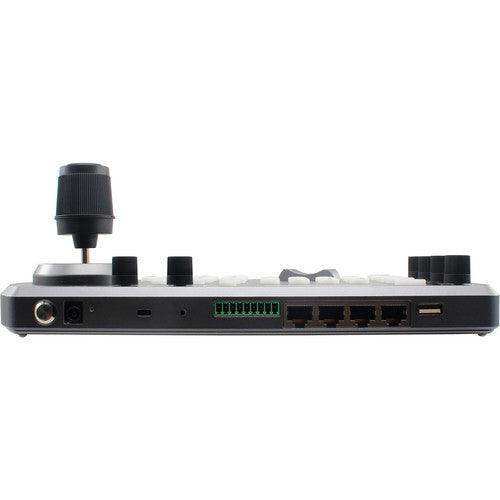

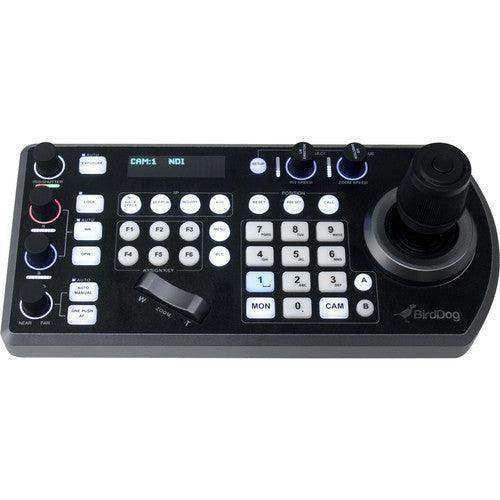

The BirdDog KBD supports NDI, VISCA, and RS-422 and is fully compatible with the P240. The KBD's 5" display can show live NDI|HX video previews from P240 cameras.
