Birddog Eyes P200 1080P 30X FULL NDI PTZ Camera w/ Sony Sensor & HDMI / 3G-SDI (White) - BDP200W
Birddog Eyes P200 1080P 30X FULL NDI PTZ Camera w/ Sony Sensor & HDMI / 3G-SDI (White) - BDP200W is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Birddog Eyes P200 1080P 30X FULL NDI PTZ Camera w/ Sony Sensor &...
Product Overview

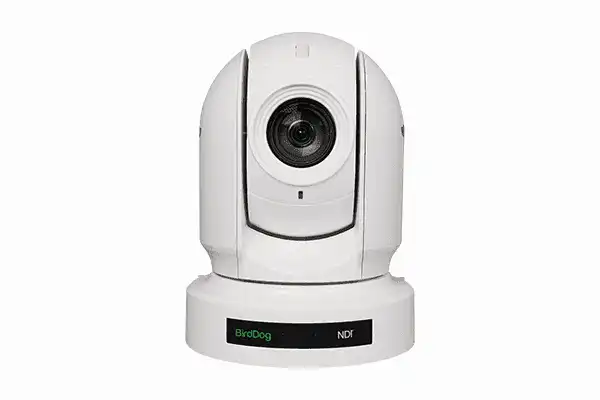

The BirdDog Eyes P200 (White) is a Full NDI® 1080p PTZ camera built around a 1/2.8" Sony Exmor R CMOS backlit sensor and a 30x optical zoom lens. Designed for conference rooms, training facilities, houses of worship, and multi-purpose rooms, the P200 transmits Full Bandwidth NDI®, NDI|HX2/HX3, SRT, RTMP, and RTSP over Gigabit Ethernet — giving integrators flexibility to match the streaming protocol to the network environment. With simultaneous HDMI and 3G-SDI outputs, PoE+ power, and dual RS-232/RS-422/RS-485 serial control, the P200 integrates cleanly into both IP-based and traditional AV infrastructures.
Product Description
The P200 uses a 2.13MP 1/2.8" Sony Exmor R CMOS backlit sensor with a 30x optical zoom lens (4.3–129mm focal range) — one of the longest zoom ranges available in a 1080p NDI PTZ camera at this price point. With a minimum illumination of 0.01 lux in high-sensitivity mode, the P200 performs in low-light environments including dimly lit conference rooms and candlelit sanctuary settings. The F1.6 wide aperture further supports low-light image quality without increasing gain noise.
Unlike some NDI cameras limited to Full NDI only, the P200 supports Full Bandwidth NDI as well as NDI|HX2, NDI|HX3, SRT, RTMP, and RTSP — making it adaptable to installations where network bandwidth is constrained or where direct streaming to CDNs is required. Control options include NDI auto-configuration, VISCA IP, and dual RJ45 serial ports (RS-232/RS-422/RS-485) for integration with hardware switchers and control systems. Power via PoE+ (802.3at) or 12V DC. The white finish suits ceiling installations in conference rooms and multi-purpose spaces. Also available in black. Compatible with the BirdDog P-series wall mount.
Key Features
- 1/2.8" Sony Exmor R CMOS Backlit Sensor — 2.13MP with 0.01 lux minimum illumination in high-sensitivity mode for demanding lighting conditions.
- 30x Optical Zoom — 4.3–129mm focal range; among the longest zoom ranges in the 1080p NDI PTZ category.
- Multi-Protocol NDI — Full Bandwidth NDI®, NDI|HX2, NDI|HX3, SRT, RTMP, RTSP on a single Gigabit Ethernet connection.
- Simultaneous HDMI and 3G-SDI Outputs — Hybrid IP/SDI compatibility for mixed AV environments.
- Dual RS-232/RS-422/RS-485 Serial Ports — Two RJ45 serial ports for daisy-chain camera control and legacy controller integration.
- PoE+ Powered — IEEE 802.3at single-cable installation; also accepts 12V DC.
- 128 Speed-Adjustable Presets — Up to 150°/s preset recall speed.
- Bi-Color Tally — Program/preview tally for production environments.
- BirdUI + RESTful API — Browser-based configuration with Crestron, AMX, and Q-SYS support.
Typical Applications
- Conference room
- Training room
- House of worship
- All-hands room
- Multi-purpose room
- Boardroom
Technical Specifications
| Specification | Value |
|---|---|
| Image Sensor | 1/2.8" Sony Exmor R CMOS Backlit, 2.13MP |
| Max Resolution | 1080p |
| HD Video Formats | 1080p 60/59.94/50/30/29.97/25; 1080i 60/59.94/50; 720p 60/59.94/50 |
| Optical Zoom | 30x |
| Lens Range | 4.3–129mm |
| Horizontal FOV | 63.7°(W) – 2.3°(T) |
| Aperture | F1.6(W) – F4.7(T) |
| Min Illumination | 0.01 lux (F1.6, High Sensitivity, 1/30s); 0.1 lux normal |
| Pan Range | ±175° (up to 150°/s) |
| Tilt Range | +90° to -30° |
| Preset Positions | 128 speed-adjustable |
| Video Outputs | HDMI; 3G-SDI; 1GbE Network |
| Network Video Protocols | Full Bandwidth NDI®, NDI|HX2/HX3, SRT, RTMP, RTSP |
| SDI Color Space | YCbCr 4:2:2 10-bit |
| HDMI Color Space | YCbCr 4:2:2 12-bit |
| Audio | 3.5mm Stereo In/Out; embedded in HDMI, SDI, and NDI (24-bit) |
| Control Protocols | NDI Control (auto-config), VISCA IP, VISCA/Pelco-D RS-232/RS-422/RS-485 |
| Serial Control | 2× RJ45: RS-232/RS-422/RS-485 |
| Network Interface | 1× RJ45 1000Mb Gigabit Ethernet |
| Power | 12V DC or PoE+ IEEE 802.3at |
| Power Consumption | Min 15.2W – Max 19.7W |
| Tally | Bi-color |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 160 × 178 × 220mm |
| Weight | 2.0kg |
Frequently Asked Questions
Does the P200 support NDI|HX as well as Full NDI?
Yes. The P200 supports Full Bandwidth NDI®, NDI|HX2, NDI|HX3, SRT, RTMP, and RTSP. This gives integrators the option to use compressed NDI|HX in bandwidth-constrained environments while retaining Full NDI capability for production scenarios requiring maximum quality.
Is the P200 available in black?
Yes. The BirdDog Eyes P200B (Black) is available at a slightly lower price point.
What PTZ controller is compatible with the P200?
The BirdDog KBD PTZ Controller supports NDI, VISCA, and RS-422 and is compatible with the P200. The KBD's 5" multiview screen can display live NDI|HX video previews from P200 camera feeds.
What PoE standard does the P200 require?
PoE+ (IEEE 802.3at) at up to 19.7W maximum. Standard PoE (802.3af) is insufficient.
What wall mount fits the P200?
The BirdDog P-series wall mount (white) is compatible with the P200, P100, and P400.
