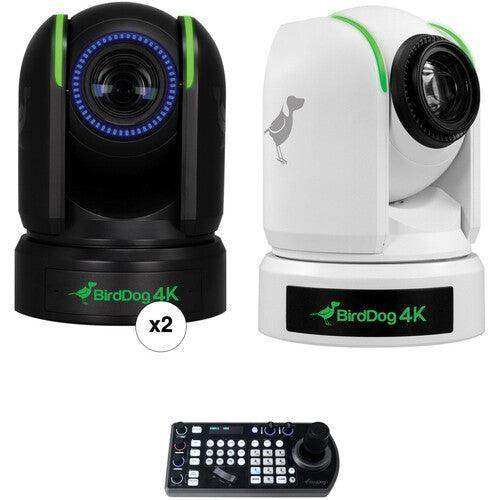

BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (2 x Black, 1 x White) - BDP4KBUNDLE-WBB
BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (2 x Black, 1 x White) - BDP4KBUNDLE-WBB is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (2 x B...
Product Overview
The BirdDog P4K 4K Full NDI PTZ 3-Camera Kit (2 Black, 1 White) includes two black and one white BirdDog P4K cameras — a mixed-color configuration for productions where two cameras occupy darker mounting positions and one is in a lighter environment. Each P4K is built around a 14.2MP 1" Sony Exmor R CMOS backlit sensor, delivering visually lossless 4K Full NDI® with simultaneous 6G-SDI and HDMI, powered by PoE+. This is the premium NDI PTZ kit option for integrators specifying maximum image quality across all three camera positions.
Product Description
Each BirdDog P4K in this kit uses a 14.2MP 1" Sony Exmor R CMOS backlit sensor — the largest sensor format available in any NDI PTZ camera. The 12x optical zoom extends via Super Resolution Zoom to 18x in 4K and 24x in HD. All three cameras transmit Full Bandwidth NDI® only over Gigabit Ethernet and output simultaneously via one 4K HDMI Type-A port and two 6G-SDI ports. Each camera is PoE+ powered (max 28W), includes RS-232/RS-422 serial control, bi-color tally front and back, F2.8 constant aperture, 128 presets, and BirdUI browser configuration with RESTful API support.
The 2-black/1-white mix suits large-venue deployments where two cameras are positioned at rear or side wall locations in darker environments and one camera is ceiling-mounted in a lighter area. All three cameras are spec-identical; only housing color differs. Compatible with the BirdDog KBD PTZ Controller. View all P4K bundle color configurations.
Key Features
- 3 Cameras: 2 Black + 1 White P4K — Mixed-color kit for environments with a blend of dark and light mounting positions.
- 1" Sony Exmor R CMOS Backlit, 14.2MP Per Camera — Highest-class NDI PTZ sensor; superior low-light and dynamic range versus 1/2.5" sensor cameras.
- 12x Optical + SRZ 18x/24x — Super Resolution Zoom: 18x in 4K, 24x in HD per camera.
- Full NDI® + 6G-SDI (×2) + 4K HDMI Per Camera — Full IP and SDI hybrid output throughout the kit.
- F2.8 Constant Aperture — 16-step iris; consistent exposure across zoom range.
- PoE+ Per Camera — IEEE 802.3at, max 28W; single-cable installation.
- 5-Year Global Warranty — All three cameras covered.
Typical Applications
- Broadcast studio
- House of worship
- Auditorium
- All-hands room
- Multi-purpose room
- Government space
Technical Specifications (Per Camera)
| Specification | Value |
|---|---|
| Image Sensor | 1" Sony Exmor R CMOS Backlit, 14.2MP |
| Max Resolution | 4K UHD (3840×2160) |
| Optical Zoom | 12x; SRZ 18x (4K) / 24x (HD) |
| Aperture | F2.8 constant (16 steps) |
| NDI Protocol | Full Bandwidth NDI® only |
| Video Outputs | 4K HDMI Type-A (×1); 6G-SDI (×2); 1GbE Network |
| SDI Color Space | YCbCr 4:2:2 10-bit |
| Power | 12V DC or PoE+ 802.3at; max 28W |
| Dimensions | 165 × 196 × 247mm; 3.4kg |
| Warranty | 5 years global |
Frequently Asked Questions
Are all three cameras identical in specifications?
Yes. All three P4K cameras are spec-identical; only housing color differs (two black, one white).
Is a PTZ keyboard included?
No. This kit includes three cameras only. The BirdDog KBD PTZ Controller is available separately.
What other P4K bundle configurations are available?
P4K 3-camera kits are available in all-black, all-white, 2 black + 1 white, and 1 black + 2 white. View all configurations.
What is the warranty?
All three BirdDog P4K cameras carry a 5-year global warranty.
