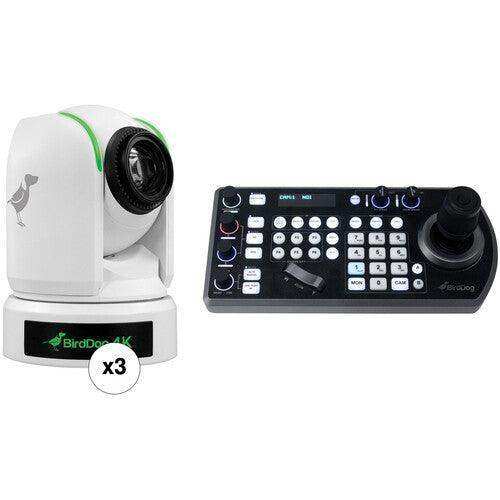

BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (1 x Black, 2 x White) - BDP4KBUNDLE-WWW
BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (1 x Black, 2 x White) - BDP4KBUNDLE-WWW is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (1 x B...
Product Overview
The BirdDog P4K 4K Full NDI PTZ 3-Camera Kit (All White) includes three white BirdDog P4K cameras — the all-white configuration of BirdDog's flagship 4K NDI PTZ kit for installations where visual consistency with light-colored ceilings and walls is required. Each P4K is built around a 14.2MP 1" Sony Exmor R CMOS backlit sensor delivering visually lossless 4K Full NDI® with simultaneous 6G-SDI and HDMI, powered by PoE+. This kit suits flagship worship facilities, broadcast studios, auditoriums, and government spaces where both image quality and installation aesthetics are primary specifications.
Product Description
Each BirdDog P4K uses a 14.2MP 1" Sony Exmor R CMOS backlit sensor — the largest sensor class available in any NDI PTZ camera — providing substantially better low-light performance, dynamic range, and depth-of-field control compared to 1/2.5" sensor alternatives. The 12x optical zoom (18x SRZ in 4K, 24x SRZ in HD) and F2.8 constant aperture deliver consistent image quality from wide-room coverage to tight close-ups at the full zoom range. All three cameras transmit Full Bandwidth NDI® over Gigabit Ethernet and output simultaneously via one 4K HDMI Type-A port and two 6G-SDI ports.
Each camera is PoE+ powered (max 28W), includes RS-232/RS-422 serial control, bi-color tally front and back, 128 speed-adjustable presets, BirdUI browser configuration, and RESTful API support for Crestron, AMX, and Q-SYS integration. The all-white housing integrates cleanly with white-ceiling installations in sanctuaries, boardrooms, and multi-purpose rooms. Compatible with the BirdDog KBD PTZ Controller for centralized multi-camera production control. For black or mixed-color configurations, view all P4K bundle variants.
Key Features
- 3 × BirdDog P4K Cameras (All White) — Matched all-white 4K NDI kit for light-environment installations.
- 1" Sony Exmor R CMOS Backlit, 14.2MP Per Camera — The highest-class sensor in any NDI PTZ camera; maximum low-light and image quality performance.
- 12x Optical + SRZ 18x/24x Per Camera — Extended reach in 4K and HD without image degradation.
- Full NDI® + 6G-SDI (×2) + 4K HDMI Per Camera — Complete IP/SDI hybrid output across all three cameras.
- F2.8 Constant Aperture — 16-step iris for consistent exposure control at all zoom positions.
- PoE+ Per Camera — IEEE 802.3at, max 28W; single-cable installation at each camera position.
- Bi-Color Tally Front and Back — Program/preview tally on each camera visible to talent and crew.
- 128 Speed-Adjustable Presets Per Camera — Recall at up to 150°/s.
- BirdUI + RESTful API — Full browser-based configuration and Crestron/Q-SYS integration per camera.
- 5-Year Global Warranty — All three cameras covered by BirdDog's commercial warranty.
Typical Applications
- House of worship
- Broadcast studio
- Auditorium
- All-hands room
- Multi-purpose room
- Government space
- Conference room
Technical Specifications (Per Camera)
| Specification | Value |
|---|---|
| Image Sensor | 1" Sony Exmor R CMOS Backlit, 14.2MP |
| Max Resolution | 4K UHD (3840×2160) |
| 4K Video Formats | 4Kp 29.97, 25, 24, 23.98 |
| Optical Zoom | 12x; SRZ 18x (4K) / 24x (HD) |
| Aperture | F2.8 constant (16 steps) |
| Min Illumination | 0.5 lux (High Sensitivity, 1/30s) |
| Pan Range | ±175° (up to 150°/s) |
| Tilt Range | +90° to -30° |
| NDI Protocol | Full Bandwidth NDI® only |

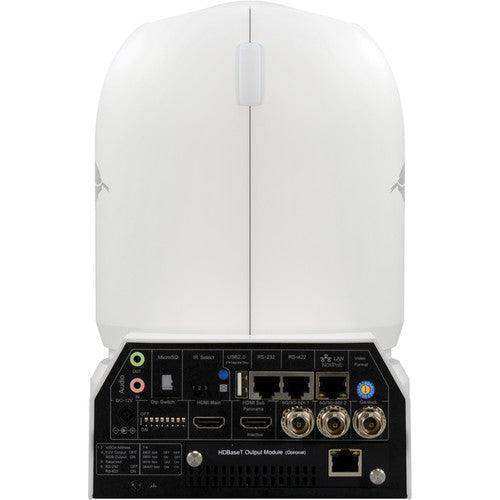

| Video Outputs | 4K HDMI Type-A (×1); 6G-SDI (×2) or Dual Link 3G-SDI; 1GbE Network |
| SDI Color Space | YCbCr 4:2:2 10-bit |
| HDMI Color Space | YCbCr 4:2:2 12-bit; RGB 8-bit |
| Audio | 3.5mm Stereo In/Out; embedded in HDMI, SDI, NDI (24-bit) |
| Control | NDI (auto-config), VISCA IP, RS-232/RS-422 |
| Power | 12V DC or PoE+ IEEE 802.3at; min 24.4W – max 28W |
| Tally | Bi-color front and back |
| Operating Temperature | -10°C to +40°C |
| Dimensions | 165 × 196 × 247mm; 3.4kg |
| Warranty | 5 years global |
Frequently Asked Questions
Why choose the P4K kit over the P400 kit?
The P4K's 1" 14.2MP Sony sensor provides materially better low-light performance, dynamic range, and depth-of-field versus the P400's 1/2.5" 8.5MP sensor. Choose the P4K kit for productions where image quality is the primary driver and the installation budget supports it.
Does the P4K support NDI|HX?
No. All three P4K cameras transmit Full Bandwidth NDI® only, requiring approximately 140–200Mbps per camera on Gigabit Ethernet.
Is a PTZ keyboard included?
No. This kit includes three cameras only. The BirdDog KBD PTZ Controller is available separately.
What switch do I need for three P4K cameras?
Three P4K cameras at 4K generate approximately 420–600Mbps aggregate NDI traffic. A managed Gigabit switch with IGMP snooping, PoE+ budget of at least 90W, and a 1Gbps minimum uplink capacity is recommended.
Are other color configurations available?
Yes. P4K 3-camera kits are available in all-black, all-white, 2 black + 1 white, and 1 black + 2 white. View all P4K bundle variants.
What is the warranty?
All three BirdDog P4K cameras carry a 5-year global warranty.
