BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (1 x Black, 2 x White) - BDP4KBUNDLE-WWB
BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (1 x Black, 2 x White) - BDP4KBUNDLE-WWB
BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (1 x Black, 2 x White) - BDP4KBUNDLE-WWB
Roll over image to zoom in Click on image to zoom
BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (1 x Black, 2 x White) - BDP4KBUNDLE-WWB
BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (1 x Black, 2 x White) - BDP4KBUNDLE-WWB
BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (1 x Black, 2 x White) - BDP4KBUNDLE-WWB
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

BirdDog 3 x P4K 4K Full NDI PTZ Cameras and PTZ Keyboard Kit (1 x Black, 2 x White) - BDP4KBUNDLE-WWB

BirdDog SKU: BDP4KBUNDLE-WWB
No reviews
Price:
$25,185.00

Description

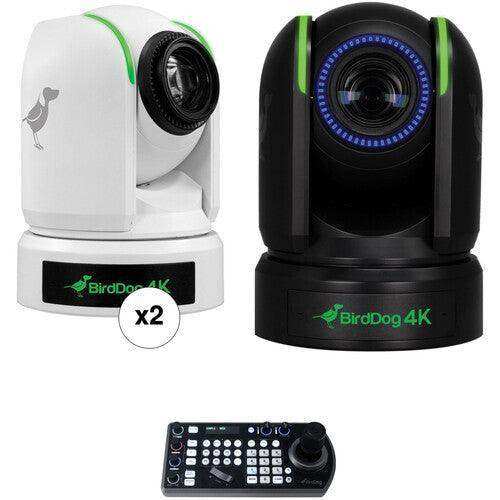

This BirdDog 3 x P4K 4K Full NDI PTZ Camera and PTZ Keyboard Kit equips you with three 4K NDI PTZ cameras, one black and two white, as well as a PTZ control keyboard. The kit can be easily integrated into your classroom, conference room, or house of worship. Buttons, knobs, and a joystick on the keyboard allow you to control the three cameras from one place.

 BirdDog P4K 4K Full NDI PTZ Camera with 1" Sony Sensor (White)

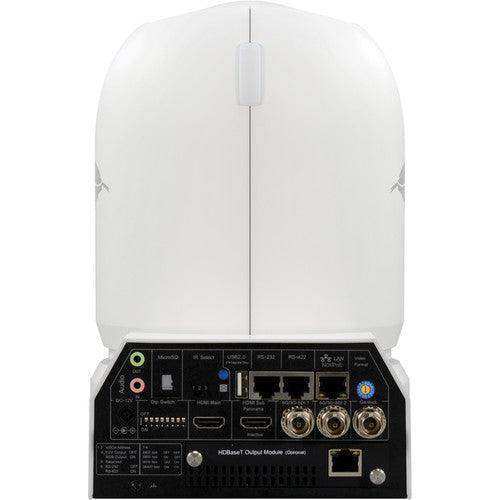

Reap the benefits of NDI without compromising on resolution with the P4K UHD 4K PTZ Camera with NDI, HDMI & 6G-SDI Output from BirdDog. Optimized to provide you with an efficient way of getting UHD 4K video into your productions, this white P4K connects to systems, devices, and applications that support NDI via only an Ethernet connection. Simply plug in your Ethernet cable on the back to connect to your network, and the camera instantly receives Power over Ethernet (PoE) and becomes available as an input source for any NDI-compatible hardware or software on the network.

Equipped with a 1" Sony Exmor R 14.2MP CMOS sensor and a 9.3-111.6mm lens, this camera captures video at resolutions up to 3840 x 2160 at 30 fps in a 64.6 to 6.1° field of view. In addition to 12x optical zoom, the P4K provides up to 18x digital zoom at 4K or up to 24x digital zoom at Full HD. The integrated pan/tilt system allows for ±350° continuous panning and 120° tilting at up to 100° and 50° per second respectively. Focusing can be performed manually or set to automatic. In addition to NDI, the camera offers HDMI and dual 6G-SDI interfaces.

 Features 1" Sony Exmor R backlit 14.2MP CMOS sensor Delivers UHD 4K resolution via Full NDI, HDMI 2.0, and two 6G-SDI outputs Supports 10-bit workflows—NDI feeds can be recorded using free tools such as NewTek NDI Monitor or IsoCorder Pro Genlock input for synchronizing multiple cameras Adjustable pan and tilt speeds for capturing drama, high action, and anything in between Front, rear, and side tally lights combine to create a 360° tally light so everyone on the production set can see which camera is live Selectable gamma settings Black gamma adjustment ePTZ enables you to pull out a Full HD frame out of the UHD 4K image Includes Comms Lite Audio Intercom software (optionally upgradable to Comms Pro) Suitable for use in broadcast applications (sports, remote studios, newsrooms, etc.) BirdDog P4K 4K Full NDI PTZ Camera with 1" Sony Sensor (Black)

Reap the benefits of NDI without compromising on resolution with the P4K UHD 4K PTZ Camera with NDI, HDMI & 6G-SDI Output from BirdDog. Optimized to provide you with an efficient way of getting UHD 4K video into your productions, this black P4K connects to systems, devices, and applications that support NDI via only an Ethernet connection. Simply plug in your Ethernet cable on the back to connect to your network, and the camera instantly receives Power over Ethernet (PoE) and becomes available as an input source for any NDI-compatible hardware or software on the network.

Equipped with a 1" Sony Exmor R 14.2MP CMOS sensor and a 9.3-111.6mm lens, this camera captures video at resolutions up to 3840 x 2160 at 30 fps in a 64.6 to 6.1° field of view. In addition to 12x optical zoom, the P4K provides up to 18x digital zoom at 4K or up to 24x digital zoom at Full HD. The integrated pan/tilt system allows for ±350° continuous panning and 120° tilting at up to 100° and 50° per second respectively. Focusing can be performed manually or set to automatic. In addition to NDI, the camera offers HDMI and dual 6G-SDI interfaces.

 Features 1" Sony Exmor R backlit 14.2MP CMOS sensor Delivers UHD 4K resolution via Full NDI, HDMI 2.0, and two 6G-SDI outputs Supports 10-bit workflows—NDI feeds can be recorded using free tools such as NewTek NDI Monitor or IsoCorder Pro Genlock input for synchronizing multiple cameras Adjustable pan and tilt speeds for capturing drama, high action, and anything in between Front, rear, and side tally lights combine to create a 360° tally light so everyone on the production set can see which camera is live Selectable gamma settings Black gamma adjustment ePTZ enables you to pull out a Full HD frame out of the UHD 4K image Includes Comms Lite Audio Intercom software (optionally upgradable to Comms Pro) Suitable for use in broadcast applications (sports, remote studios, newsrooms, etc.) BirdDog PTZ Keyboard

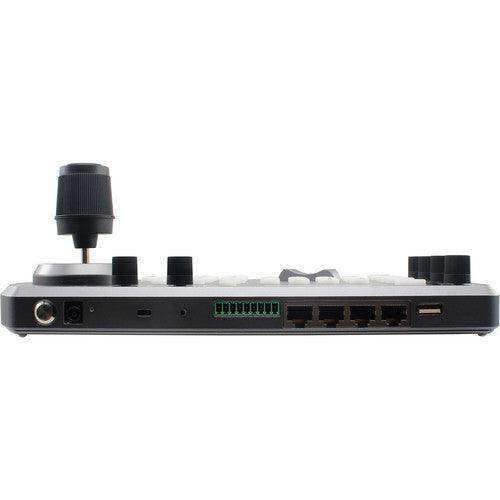

Control up to 255 PTZ cameras on a single network with the ergonomically designed BirdDog PTZ Keyboard. The keyboard is compatible with NDI, NDI|HX, Visca over IP, RS-422, and RS-232 protocols, and can also be powered over those same connections as an alternative to DC-in power.

The keyboard features multi-colored and programmable buttons and knobs, and it has a joystick and rocker for zoom control. Control your PTZ camera's exposure, white balance, backlight, gain, shutter, focus, iris, shutter speed, and zoom with the touch of a button or the turn of a knob. You can also set up to 256 memory presets with different parameters and camera moves. The PTZ Keyboard is also compatible with NDI and BirdDog Comms Audio Intercom systems run from a Windows computer.

 Universal Control The PTZ Keyboard features NDI and NDI|HX, Visca over IP, RS-422, and RS-232 support for control over PTZ cameras Features Buttons and controls include exposure, focus, PT speed, zoom, shutter speed, iris, white balance, compensation, multi-colored buttons for visual cues, 256 memory presets for parameters and camera moves, and more Network Control over 255 PTZ cameras on a single network Ergonomics The keyboard's button layout allows you to quickly access all the cameras on the network and set up quick access buttons for all your favorite settings such as exposure, focus, zoom, and movement speeds Power Flexible options allow you to power the PTZ Keyboard from Power over Ethernet (PoE), DC in, or over the serial port Comms The PTZ Keyboard offers Audio Intercom support over NDI and is compatible with BirdDog Comms. Comms is a complete Audio Intercom solution which can run on any Windows 10 compatible computer, laptop, or surface for a touchscreen experience
  • One Black, Two White PTZ Cameras
  • Up to 3840 x 2160 Resolution at 30 fps
  • PTZ Camera Control Keyboard
  • Multi-Colored Buttons, Knobs, Joystick
Image Sensor 1"-Type CMOS
Sensor Resolution Effective: 14.2 Megapixel
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1/8 Second
Optical Zoom Ratio 12x
Max Digital Zoom 24x ( in 1080p)
External Recording Modes SDI/BNC / HDMI / RJ45
3840 x 2160 at 23.98/24.00/25/29.97 fps
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output NTSC
IP Streaming NDI, TCP, UDP
3840 x 2160
1920 x 1080
Supported Control Protocols IP
IR
RS-232
RS-422
RS-485
VISCA
PoE Support PoE++ 802.3bt
