Biamp 930-10008-00010 Biamp MRB-L-X400-T-CIC6LP

Product Overview

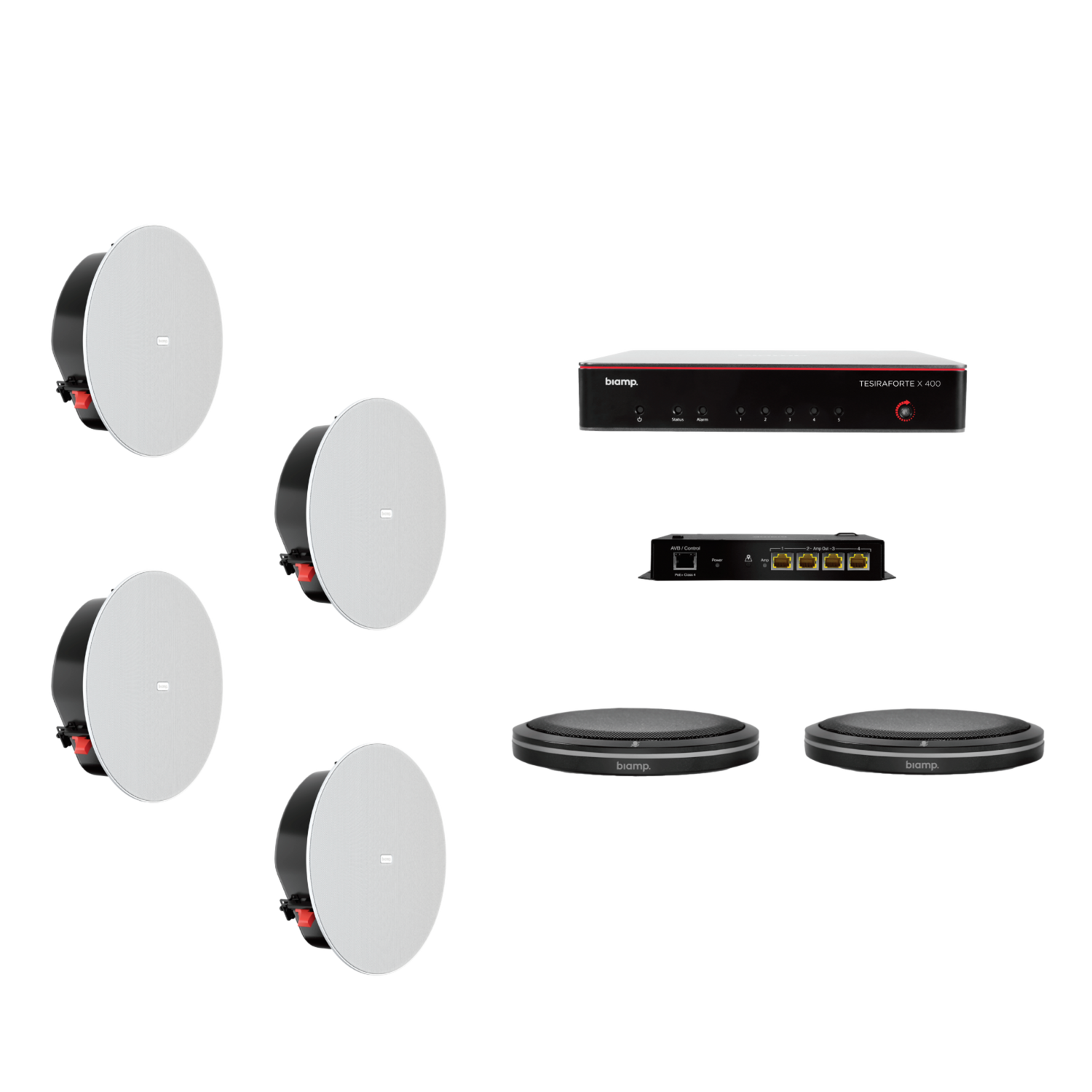

The Biamp MRB-L-X400-T-CIC6LP is a certified large conference room audio bundle combining the TesiraFORTÉ X 400 meeting room DSP, a Parlé table Beamtracking microphone, and Desono C-IC6LP low-profile ceiling loudspeakers. It includes the processing, amplification, loudspeakers, and cabling required to outfit a large meeting room of roughly 5m x 11m for up to 18 participants. As a UC-agnostic large meeting room bundle, it connects to a room codec over USB and supports Microsoft Teams Rooms, Zoom Rooms, Google Meet, and Cisco Webex. The low-profile ceiling loudspeakers suit spaces where a discreet overhead playback appearance is preferred.

Product Description

This configuration is aimed at AV integrators deploying large conference rooms and boardrooms that need reliable audio capture at the table and even coverage from the ceiling. The TesiraFORTÉ X 400 consolidates audio DSP and network connectivity into one device and powers peripherals over its PoE+ Gigabit Ethernet ports. A Parlé table microphone with Beamtracking technology follows active talkers, while custom Acoustic Echo Cancellation and AI noise reduction preserve intelligibility for remote participants. Desono C-IC6LP low-profile ceiling loudspeakers are tuned for voice reproduction and mount flush for a clean ceiling line. Biamp Launch automates device discovery and tuning with no custom programming and returns a performance report on completion. Mute buttons and LEDs synchronize with the UC software. Integrators who prefer surface-mount loudspeakers can compare the MRB-L-X400-T-DXS5 configuration, and the full Biamp collection lists compatible microphones, loudspeakers, and accessories. AVB, Dante, and AES67 support allows this bundle to integrate into larger networked Tesira systems.

Key Features

• TesiraFORTÉ X 400 DSP — One meeting room DSP handles audio processing, networking, and PoE+ power distribution across the bundle.
• Table Beamtracking microphone — A Parlé table microphone tracks active talkers and delivers clear pickup with UC-synced mute indication.
• Desono C-IC6LP loudspeakers — Low-profile ceiling loudspeakers mount flush and are tuned for voice reproduction in conference rooms.
• Biamp Launch automated tuning — Device discovery and room tuning complete without custom programming and produce a full performance report.
• Custom AEC and noise reduction — Acoustic Echo Cancellation and AI noise reduction improve the far-end experience on any UC platform.
• UC platform flexibility — A single USB connection to the room codec supports Microsoft Teams Rooms, Zoom Rooms, Google Meet, and Cisco Webex.
• Networked audio support — The DSP supports AVB, Dante, and AES67 for integration into larger networked AV systems.

Typical Applications

• Boardroom
• Large conference room
• All-hands room
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Specifications compiled from Biamp MRB-L-X400 series and TesiraFORTÉ X 400 datasheets. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Which UC platforms are supported?
The bundle connects to a room codec over USB and is compatible with Microsoft Teams Rooms, Zoom Rooms, Google Meet, Cisco Webex, and GoTo Meeting.

What room size does the MRB-L-X400-T target?
It is a large-room bundle for spaces of approximately 5m x 11m with up to 18 participants.

What are the C-IC6LP loudspeakers?
They are Desono low-profile ceiling loudspeakers that mount flush and are tuned for clear voice reproduction in conference rooms.

How is installation handled?
Biamp Launch performs automated device discovery and room tuning without custom programming and delivers a post-commissioning performance report.

Can this bundle be part of a larger AV system?
Yes. The TesiraFORTÉ X 400 supports AVB, Dante, and AES67 networked audio and SIP VoIP for integration into larger Tesira deployments.

Is custom programming required?
No. Standard deployment needs no custom programming, but the DSP can be customized in Tesira software when required.

What warranty applies?
The TesiraFORTÉ X 400 DSP carries Biamp's five-year warranty; confirm coverage for other bundle components with Biamp.
