Biamp 920-10692-20000 Apprimo TEC-X 1000 White

Product Overview

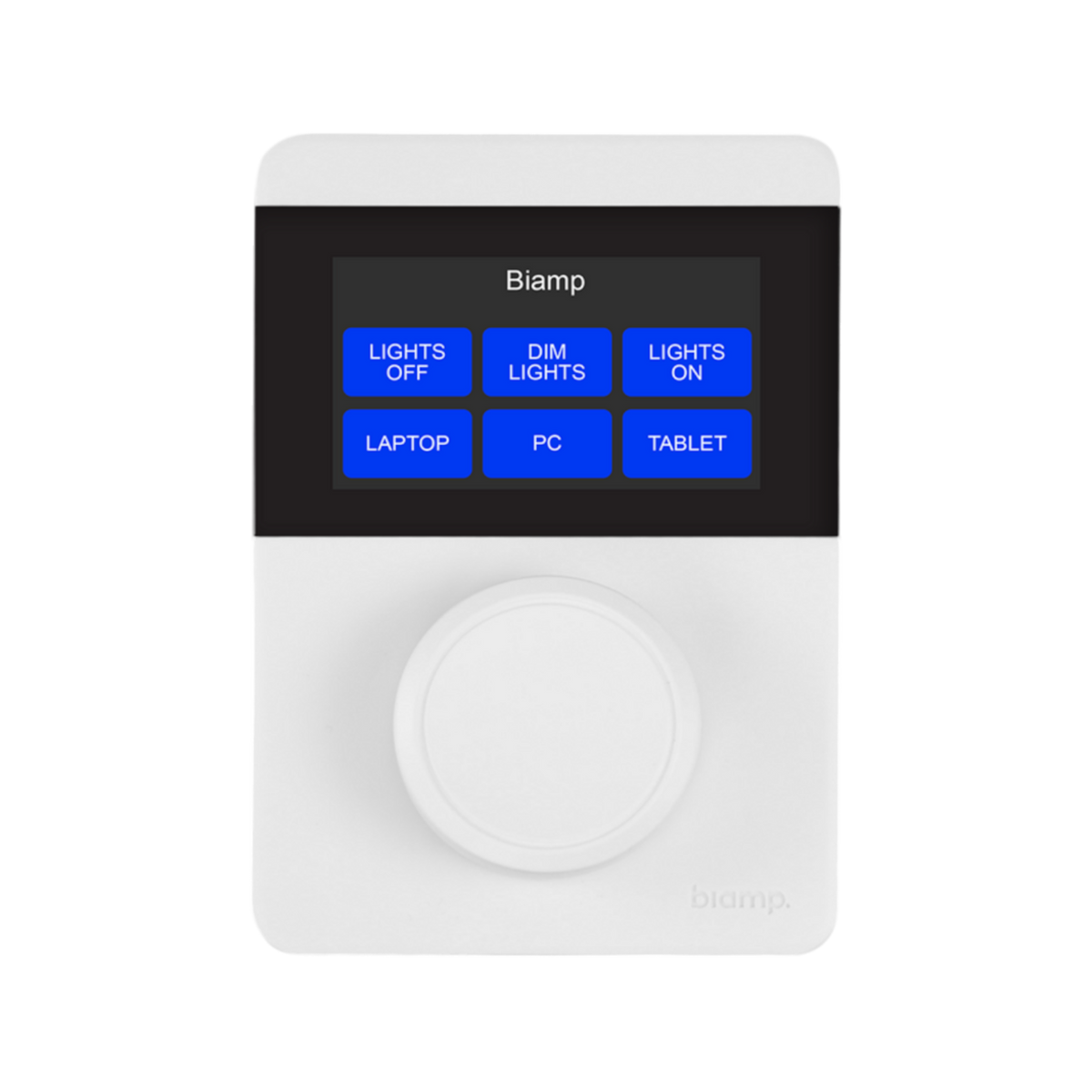

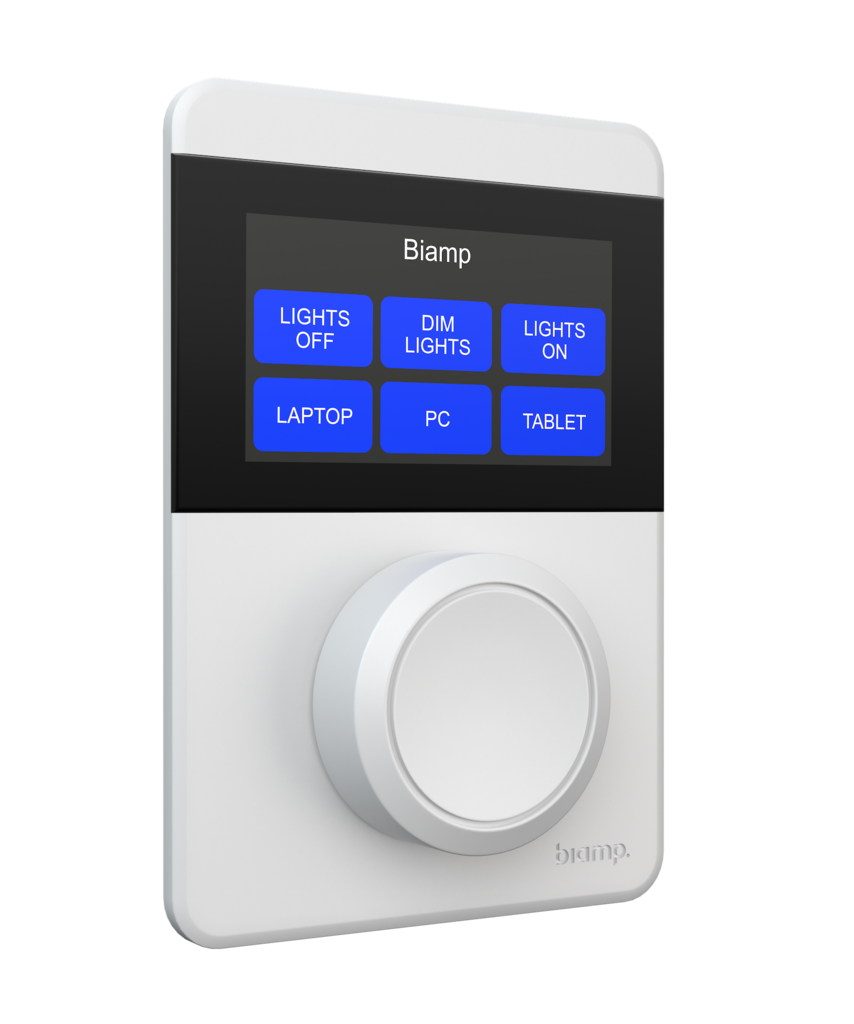

The Biamp Apprimo TEC-X 1000 is a networked AV control pad engineered for conference rooms and presentation spaces running on Biamp Tesira systems. It combines a high-contrast capacitive touch LCD with a dedicated rotary knob, giving presenters direct control of source selection, level, and mute from a single wall-mount interface. Because this PoE conference room control panel is powered and networked over one Cat 5e/Cat 6 cable and can be daisy-chained, it simplifies commercial AV room control while reducing cabling and installation time. The white PVC/ABS housing lets the control pad blend discreetly into finished meeting-space walls.

Product Description

The Apprimo TEC-X 1000 delivers intuitive, capacitive-touch operation at the price point of a traditional keypad controller, making it a practical AV control interface for standardized room builds. Its touch LCD supports up to six on-screen buttons whose control functions are programmed directly in Tesira design software, so integrators can map source switching, presets, and level control to match how each room is used. A dedicated rotary encoder handles incrementing and decrementing level adjustments, giving end users a familiar physical control for volume. An assignable RGB LED light bar provides at-a-glance feedback for mute status and overall system state.

Display brightness adjusts automatically to ambient light, keeping the interface readable in both bright boardrooms and dimmed presentation spaces. The control pad is powered by PoE (IEEE 802.3at Class 3, 15W), and up to four devices can be daisy-chained on a single run, which is useful in larger rooms that need multiple control points. Because the TEC-X 1000 supports all Tesira Text Protocol (TTP) commands, its behavior can be reprogrammed as room requirements change over time without swapping hardware. It is wall-mountable out of the box, and an optional TEC-X-TM table mount supports tabletop placement. Backed by a five-year Biamp warranty, the TEC-X 1000 is a cost-effective choice for conference room control and commercial AV deployment. Pair it with a Biamp Tesira processor and explore related Biamp control and DSP hardware in our Biamp collection, or choose the TEC-X 1000 in black for darker interiors.

Key Features

• Tesira-native control — Functions as a dedicated control interface for Biamp Tesira systems and supports the full TTP command set.
• Capacitive touch LCD — A high-contrast 2.9-inch touch display presents up to six programmable on-screen buttons for source, preset, and level control.
• Dedicated rotary knob — A physical rotary encoder gives presenters familiar, precise level control without navigating menus.
• Assignable RGB LED bar — An adjustable-brightness light bar signals mute and system state so users get immediate visual confirmation.
• Automatic brightness — The display adapts to ambient room light to stay legible in bright and dimmed environments alike.
• Single-cable PoE install — IEEE 802.3at Class 3 (15W) power and networking arrive over one Cat 5e/Cat 6 cable, reducing installation labor.
• Daisy-chainable — Up to four units can be linked to place multiple control points in a single room.
• Five-year warranty — Covered by Biamp's five-year warranty for long-term commercial reliability.

Typical Applications

• Conference room — Wall-mounted room control for source selection and volume on Tesira systems.
• Boardroom — Discreet, premium-looking control interface that matches finished executive interiors.
• Training room — Simple, standardized control that non-technical presenters can operate reliably.
• Multi-purpose room — Reprogrammable control that adapts as room configurations change.
• Commercial meeting space — Cost-effective, PoE-powered control point for repeatable room builds across a facility.

Technical Specifications

Specifications sourced from the Biamp Apprimo TEC-X 1000 data sheet.

Frequently Asked Questions

Which Biamp systems is the TEC-X 1000 compatible with?
The TEC-X 1000 is designed exclusively for Biamp Tesira systems and supports all Tesira Text Protocol (TTP) commands. On-screen button functions are configured within Tesira design software.

How is the control pad powered and cabled?
It is PoE-powered per IEEE 802.3at Class 3 (15W) and connects over a single RJ-45 Cat 5e/Cat 6 cable that carries both power and network, so no local power supply is required at the wall location.

Can I use more than one control pad in the same room?
Yes. Up to four TEC-X 1000 devices can be daisy-chained together, which is useful for larger rooms or spaces that need multiple control positions.

How does it mount?

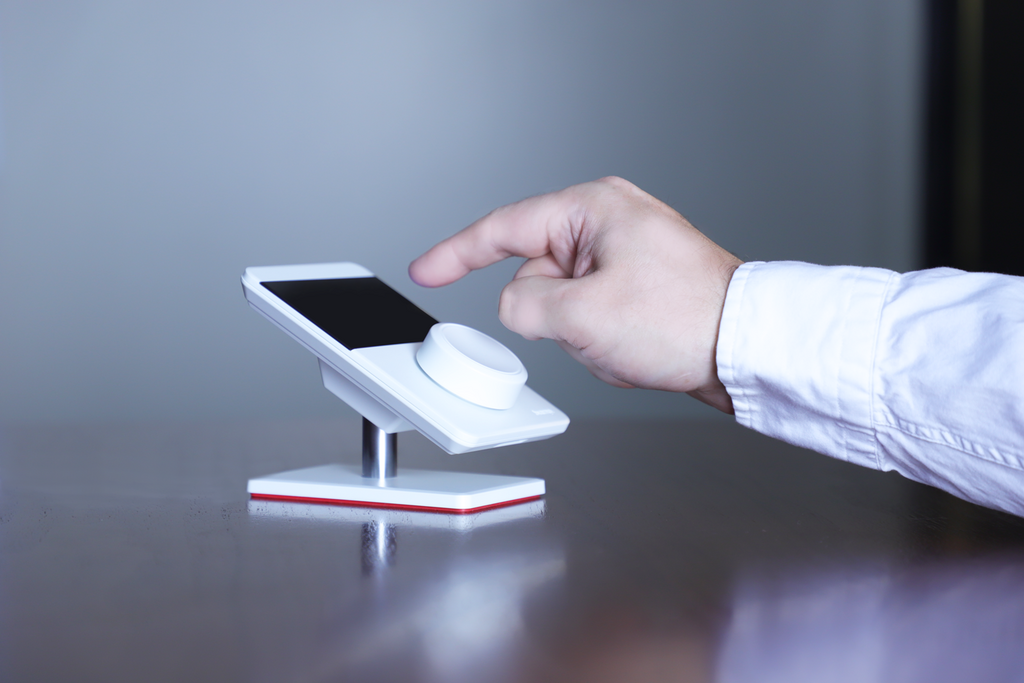

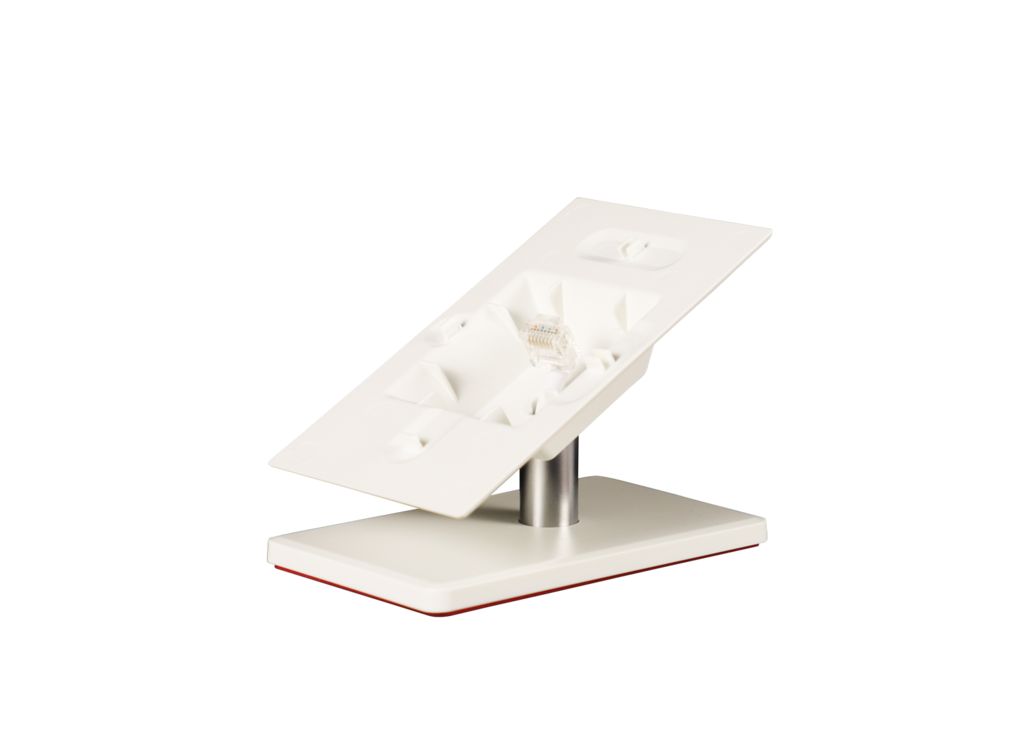

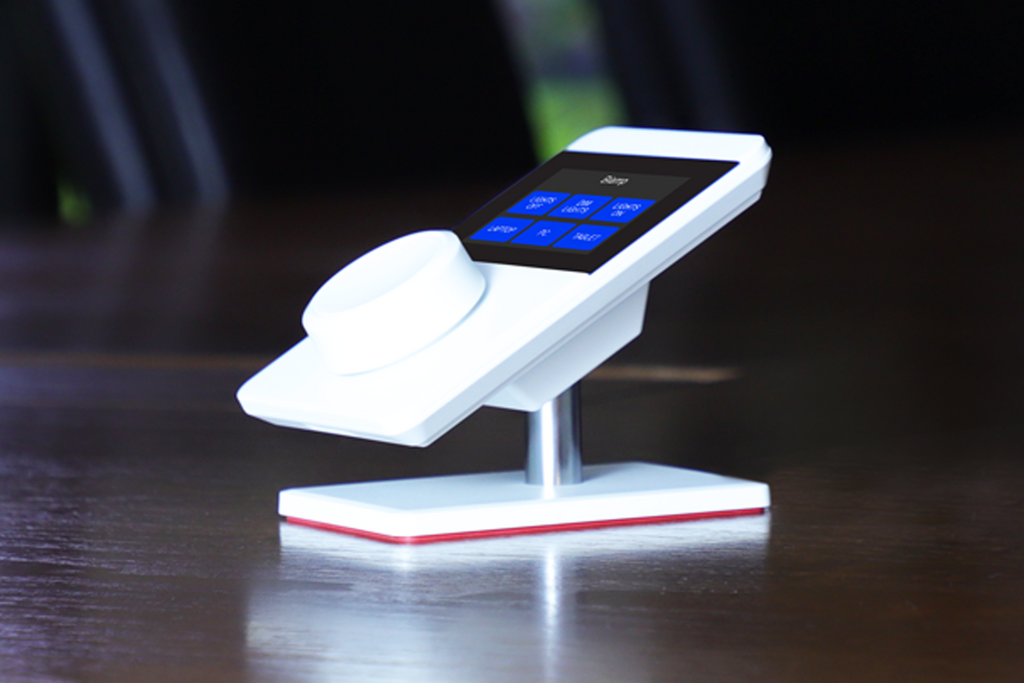

The unit is wall-mountable as standard. For tabletop placement, Biamp offers the optional TEC-X-TM table mount accessory.

Can the interface be reprogrammed after installation?
Yes. Because control functions are defined in Tesira software and the unit supports the full TTP command set, integrators can reconfigure buttons and behavior as room requirements change without replacing hardware.

What warranty and compliance does it carry?
The TEC-X 1000 is covered by Biamp's five-year warranty and is FCC Part 15B, CE, UL/C-UL listed, and RoHS compliant.
