Biamp APPRIMO TEC-X 1000 NETWORKED AV CONTROL PAD WITH ROTARY KNOB (Black)- 911.0693.900
Biamp APPRIMO TEC-X 1000 NETWORKED AV CONTROL PAD WITH ROTARY KNOB (Black)- 911.0693.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp APPRIMO TEC-X 1000 NETWORKED AV CONTROL PAD WITH ROTARY KNOB...
Product Overview

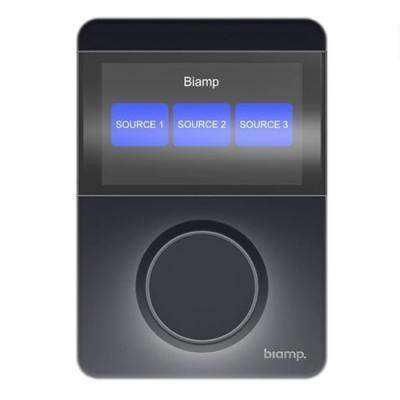

The Biamp Apprimo TEC-X 1000 is a networked AV control pad with a rotary knob (Black), part of the TEC-X family of control pads with a modern design aesthetic. It provides a simple, intuitive interface for presentation spaces and conference rooms using capacitive touch, delivered at the price of a keypad controller. Equipped with an LCD and rotary knob, it is PoE powered, wall-mountable, and daisy-chainable.
Product Description
The TEC-X 1000 is an Ethernet-based control solution for Tesira systems with a capacitive-touch LCD interface that supports up to six on-screen buttons and a dedicated rotary encoder for incrementing and decrementing level controls. On-screen button functions are programmed in Tesira design software, and the high-contrast, touch-enabled LCD provides easy-to-read text and status, with brightness that adjusts automatically to ambient light. An assignable LED light bar provides optional feedback for mute and system state. The pad is powered by PoE (IEEE 802.3at Class 3, 15W) for single-cable installation, supports all TTP commands, and allows up to four devices to be daisy-chained.
Key Features
- Capacitive-touch LCD — The TEC-X 1000 offers a capacitive-touch LCD interface supporting up to six on-screen buttons.
- Rotary encoder — A dedicated rotary encoder increments and decrements level controls.
- Tesira programming — On-screen button functions are easily programmed in Tesira design software.
- LED light bar — An assignable LED light bar provides optional feedback for mute and system state.
- PoE powered — Power via PoE (IEEE 802.3at Class 3, 15W) enables single CAT5e/CAT6 cable installation.
- Daisy-chain — Up to four devices can be daisy-chained together.
- Five-year warranty — The TEC-X 1000 is covered by Biamp Systems' 5-year warranty.
Typical Applications
The TEC-X 1000 suits conference rooms, boardrooms, training rooms, and multi-purpose rooms requiring simple level and preset control of a Tesira system.
Technical Specifications
| Function | Ethernet-based control solution for Tesira systems |
| User interface | Capacitive-touch LCD with rotary knob |
| On-screen buttons | Up to six |
| Rotary control | Dedicated encoder for level controls |
| Programming | Tesira design software |
| Indicators | Assignable LED light bar; auto-adjusting LCD brightness |
| Protocol | Supports all TTP commands |
| Daisy-chain | Up to four devices |
| Power | PoE (IEEE 802.3at Class 3, 15W) |
| Dimensions (H x W x D) | 5.1 in (130 mm) x 3.5 in (90 mm) x 0.5 in (13 mm) |
| Mounting | Wall-mountable |
| Compliance | CE marked, UL listed, RoHS compliant |
| Warranty | Biamp Systems 5-year warranty |
Frequently Asked Questions
What is the TEC-X 1000 used for?
It is an Ethernet-based control pad for Tesira systems, providing button and rotary level control for presentation spaces and conference rooms.
How is it powered?
It is powered by PoE (IEEE 802.3at Class 3, 15W) for single-cable installation.
How many buttons does it support?
Its capacitive-touch LCD supports up to six on-screen buttons, plus a dedicated rotary encoder.
