Biamp 920-10300-20000 DX-IC6LP-W White
Biamp 920-10300-20000 DX-IC6LP-W White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp 920-10300-20000 DX-IC6LP-W White
Product Overview

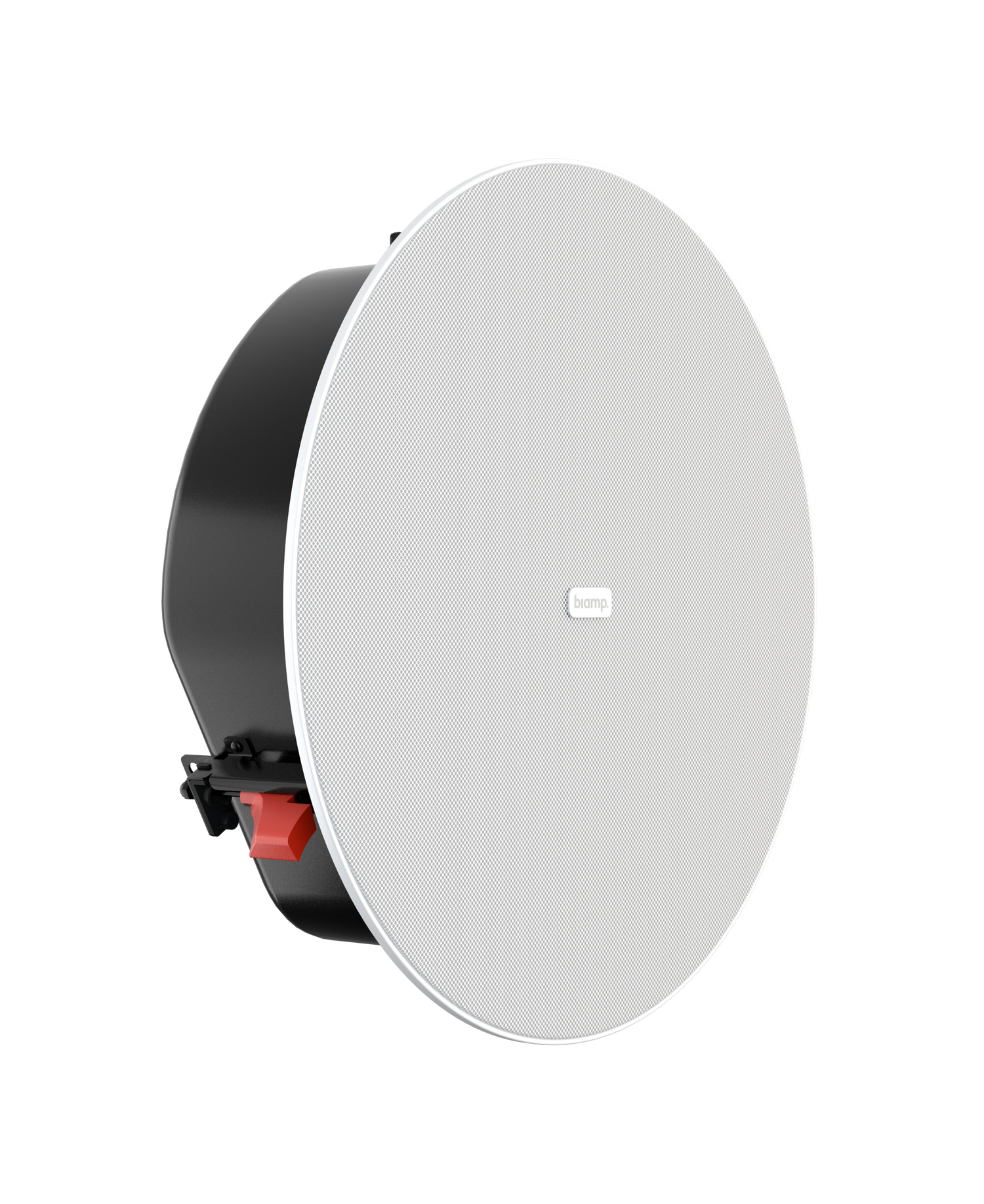

The Biamp Desono DX-IC6LP-W is a two-way 6.5-inch low-profile in-ceiling loudspeaker built for high-intelligibility paging and background music where mounting depth is limited. At only 3.91" (99 mm) deep, this coaxial ceiling loudspeaker fits shallow plenum spaces while delivering wide, uniform coverage. It operates passively with DSP and includes a front-face 70V/100V tap selector for fast level setting during commercial AV installation. The white grille finish blends into most ceiling treatments.
Product Description
The DX-IC6LP-W pairs a 6.5" (165 mm) treated paper cone low-frequency driver with a 1.0" (25 mm) treated soft dome high-frequency driver on a genuine coaxial, acoustically aligned axis, with an integrated HF waveguide for consistent 145° conical coverage. Separate LF and HF magnets help keep distortion low across the 63 Hz to 20 kHz operating range. The shallow-depth design suits retrofit and new-construction ceilings alike, making it a practical low-profile in-ceiling loudspeaker for conference rooms, retail, hospitality, and transit spaces. Patent-pending SpringLock mounting clamps allow single-handed placement to reduce labor time, and the included tile rails and snap-on C-ring support the back can during install. The magnetic edgeless grille removes to reach the front-face wattage selector, which sets 70V or 100V transformer taps without tools. Conduit knock-outs on the input cover meet Chicago plenum air-space requirements, and the loudspeaker is rated for use in air-handling spaces. It is a natural match to other Desono DX models when standardizing a distributed 70V/100V ceiling speaker system. Explore the full Biamp collection or compare with the in-ceiling Biamp CMX20T for larger open areas.
Key Features
- Low-Profile Coaxial Design — The 3.91" (99 mm) deep enclosure and coaxial driver set deliver full-range output in shallow ceilings where standard back cans will not fit.
- Wide Uniform Coverage — A 145° conical beamwidth with integrated HF waveguide keeps response consistent across the listening area so more occupants stay in the coverage pattern.
- 70V/100V and Low-Impedance Operation — A front-face tap selector supports 70V and 100V distributed systems as well as 8-ohm passive operation for flexible commercial deployment.
- Fast SpringLock Installation — Patent-pending SpringLock clamps with a 33 mm grip range allow single-handed placement and reduce labor time on ceiling installs.
- Plenum-Rated Construction — ETL listing to UL1480A and UL2043 and suitability for air-handling spaces per NFPA 70 and NFPA 90 support code-compliant plenum installation.
- Tool-Free Grille Access — The edgeless magnetic grille removes cleanly to reach the wattage selector and input terminals without hardware.
Technical Specifications
| Model / SKU | Desono DX-IC6LP-W / 920-10300-20000 |
| Type | Two-way 6.5" low-profile in-ceiling loudspeaker, passive with DSP |
| Operating Range (-10 dB) | 63 Hz to 20 kHz |
| Nominal Beamwidth | 145°, conical |
| Transducers | LF: 6.5" (165 mm) treated paper cone; HF: 1.0" (25 mm) treated soft dome with waveguide |
| Sensitivity | 87 dB (2.83 V) |
| Nominal Continuous Power Handling | 60 W @ 8 Ω (passive) |
| Maximum SPL (Processed) | 115 dB peak / 103 dB continuous |
| Transformer Taps | 70V: 60/30/15/7.5/3.75 W; 100V: 60/30/15/7.5 W |
| Crossover Frequency | 2.5 kHz |
| Input Connection | 4-position Euroblock connector |
| Mounting | 3 SpringLock clamps, 33 mm (1.3") grip range |
| Dimensions (W x D) | 341 mm x 99 mm (13.41" x 3.91") |
| Cutout Diameter | 310 mm (12.20") |
| Weight | 4.9 kg (10.8 lbs) |
| Certifications | ETL to UL1480A, UL2043, CSA62368-1; air-handling per NFPA 70/90 |
Specifications sourced from the Biamp Desono DX-IC6LP data sheet (May 2023). Confirm detailed specifications against current Biamp documentation.
