Biamp 920-01586-10000 CMX20T-BL
Product Overview

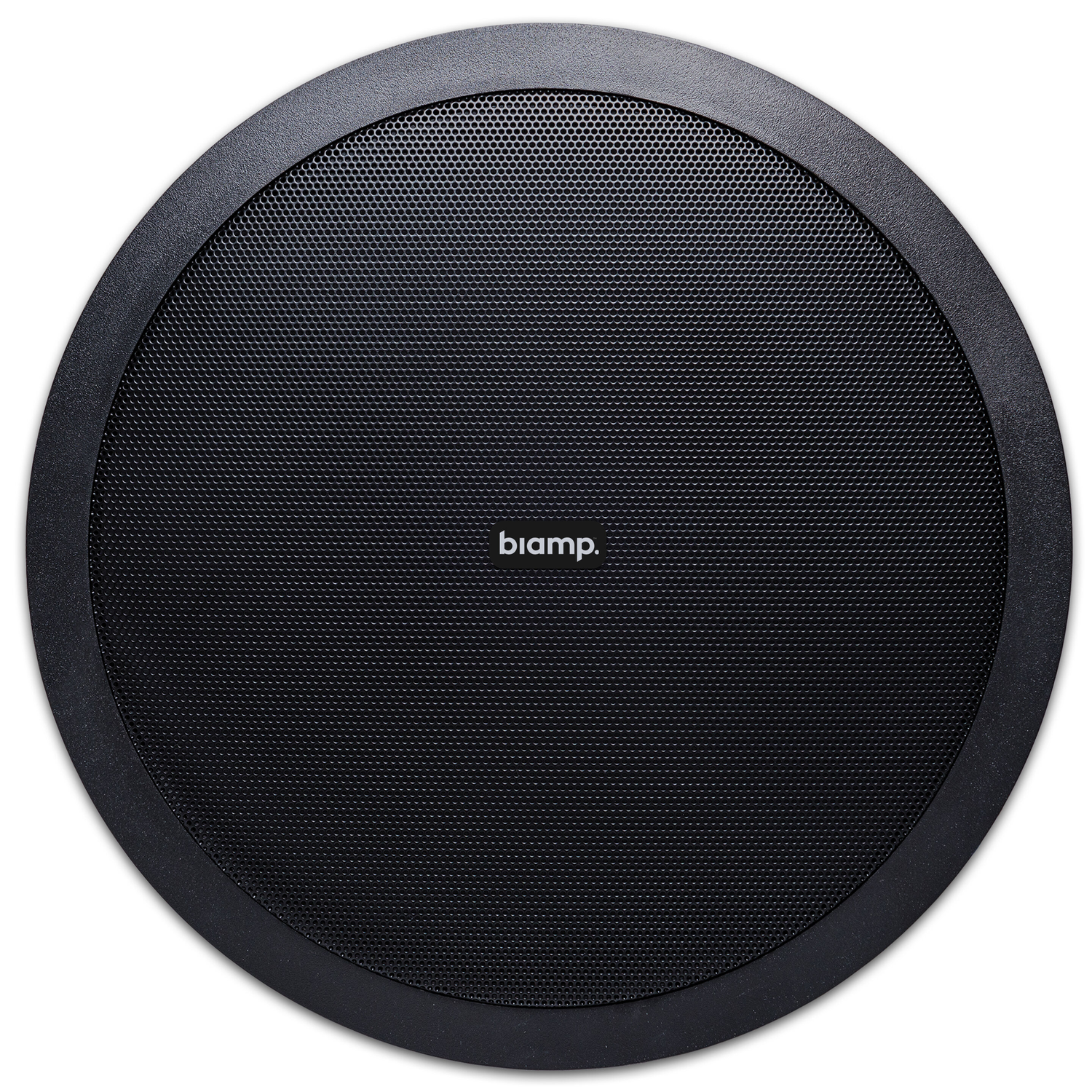

The Biamp CMX20T is an 8-inch two-way in-ceiling loudspeaker that delivers warm, full-range sound for speech and music in commercial spaces. This black model suits retail, hospitality, and corporate installations where an 8-inch driver is needed for higher output and deeper low frequencies. The CMX20T operates as a 16-ohm loudspeaker or on a 70V/100V distributed line, giving integrators flexibility across system designs. Its IP54-rated build and aluminum grille make it suitable for humid environments.
Product Description
The Biamp CMX20T ceiling loudspeaker uses an 8-inch reinforced polypropylene woofer and a 1-inch tweeter to reproduce microphone paging and background music at a higher volume level than smaller ceiling speakers. In 16-ohm use, up to four loudspeakers can be connected in parallel on each channel of a standard 4-ohm amplifier. For 70V/100V distributed audio, the CMX20T carries a 20-watt transformer with multiple power taps, so installers can balance output across a large zone. The ABS housing, moisture-proof polypropylene woofer, and aluminum grille make the CMX20T appropriate for high-humidity environments and applications where steel grilles would corrode. A three-screw mounting system with a Quick Fix wiring connector and tapping decal speeds installation, and the screws sit hidden behind the grille for a clean appearance. This black unit (RAL9011) is the color sibling of the CMX20T (white); for a smaller 6.5-inch option, consider the CM20T. See the full Biamp collection for amplifiers and companion ceiling speakers.
Key Features
- 8-inch two-way driver — The reinforced polypropylene woofer and 1-inch tweeter deliver low-distortion background music and clear paging.
- 70V/100V transformer with taps — A 20-watt transformer with 20/10/5/2.5 W taps lets integrators balance output across large distributed zones.
- 16-ohm parallel operation — Up to four CMX20T units run in parallel per channel of a standard 4-ohm amplifier for low-impedance zones.
- IP54 moisture resistance — The ABS housing and aluminum grille suit humid spaces where steel grilles would corrode.
- Three-screw quick mounting — Hidden screws and a Quick Fix connector speed installation and keep the ceiling appearance clean.
- Black paintable finish — The black grille (RAL9011) can be painted to match the ceiling for a discreet installation.
Technical Specifications
| Model / SKU | Biamp CMX20T (Black) / 920-01586-10000 |
| Type | 8-inch two-way in-ceiling loudspeaker |
| Woofer / tweeter | 8 in woofer / 1 in tweeter |
| Frequency response | 50 Hz – 20 kHz |
| Sensitivity (1 W @ 1 m) | 88 dB |
| Max SPL @ 1 m | 108 dB |
| Impedance | 16 Ω (low-Z continuous power 50 W) |
| 70 V taps | 20 / 10 / 5 / 2.5 W |
| 100 V taps | 20 / 10 / 5 W |
| Outside diameter | 244 mm |
| Cutout diameter | 223 mm |
| Depth | 87 mm |
| Grille material | Aluminium |
| IP rating | IP54 |
| Weight | 1.40 kg |
| Colour | Black (RAL9011) |
Specifications sourced from Biamp product documentation (biamp.com / downloads.biamp.com). Confirm detailed specifications against current Biamp documentation.
