Biamp 920-10116-10000 Parlé TCM-X-FM Black

Product Overview

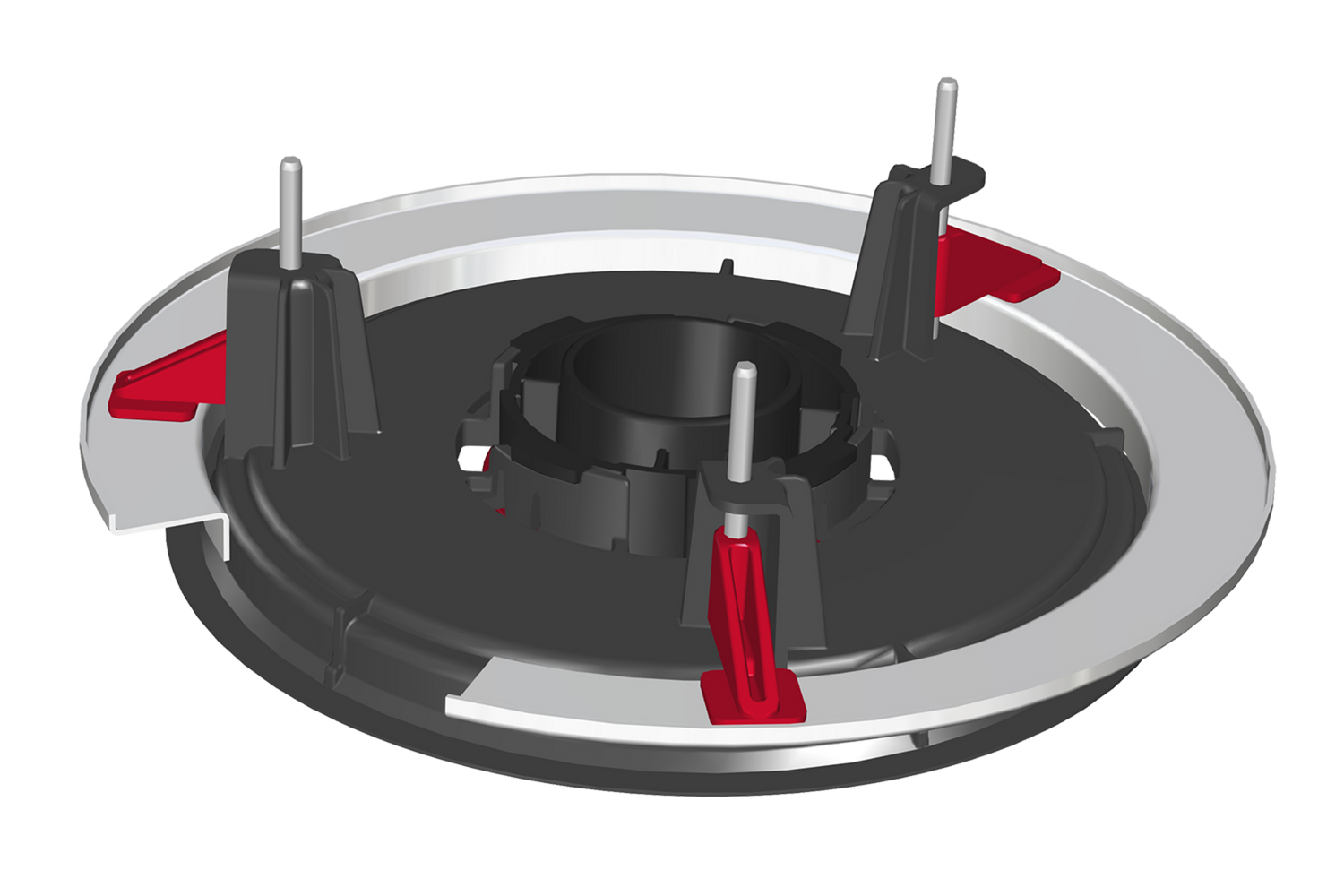

The Biamp Parlé TCM-X-FM in black is a flush mount kit for the Parlé TCM-X AVB Beamtracking ceiling microphone, giving the mic a discreet, near-flush appearance in finished ceilings. It is designed for conference rooms, boardrooms, and commercial meeting spaces where a low-profile ceiling microphone install is required. The kit supports both flush and recessed mounting positions and installs in drop-tile or drywall ceilings. It is UL 2043 rated for installation in plenum air-handling spaces.

Product Description

The TCM-X-FM flush mount kit recesses the Parlé TCM-X ceiling microphone so only a minimal profile protrudes below the finished surface, keeping the AV system integration clean in architectural spaces. Installation requires a 162 mm (6.38") diameter cutout with a minimum mount depth clearance of 64 mm (2.5"). The included C-Ring fits ceilings 13–24 mm (0.5"–0.95") thick, while the optional TB-1 ceiling tile bridge extends compatibility to 16–25 mm (0.625"–1") material. Installers can choose a flush mount, where the microphone LED reads at a 130° viewing angle, or a recessed mount using the included 4 mm spacer for a 170° viewing angle. Mounted flush, the TCM-X protrudes just 7.5 mm (0.3") from the ceiling, or 11.5 mm (0.45") with the spacer installed. The black finish suits dark ceilings and open-plenum designs. This kit is intended specifically for the TCM-X microphone element and pairs with standard Parlé ceiling deployment hardware. Browse the full Biamp collection, or add the Biamp Seismic Cable Adapter for code-required secondary support.

Key Features

• Flush Ceiling Integration — The kit recesses the Parlé TCM-X so it sits near-flush with the finished ceiling for a discreet appearance in meeting spaces.
• Flush or Recessed Mounting — Installers can mount flush for a 130° LED viewing angle or recessed with the included 4 mm spacer for a 170° viewing angle.
• Drop-Tile and Drywall Compatible — The included C-Ring supports drop-tile and finished drywall ceilings, with an optional TB-1 tile bridge for thicker material.
• Plenum Rated — The kit meets UL 2043 requirements for installation in plenum and air-handling spaces.
• Low Protrusion — The mounted microphone extends only 7.5 mm (0.3") from the ceiling, or 11.5 mm (0.45") with the spacer, minimizing visual footprint.

Technical Specifications

Specifications sourced from the Biamp Parlé TCM-X-FM flush mount kit manual. Confirm detailed specifications against current Biamp documentation.
