Biamp 920-02260-20002 Echo Plus 8EUW

Product Overview

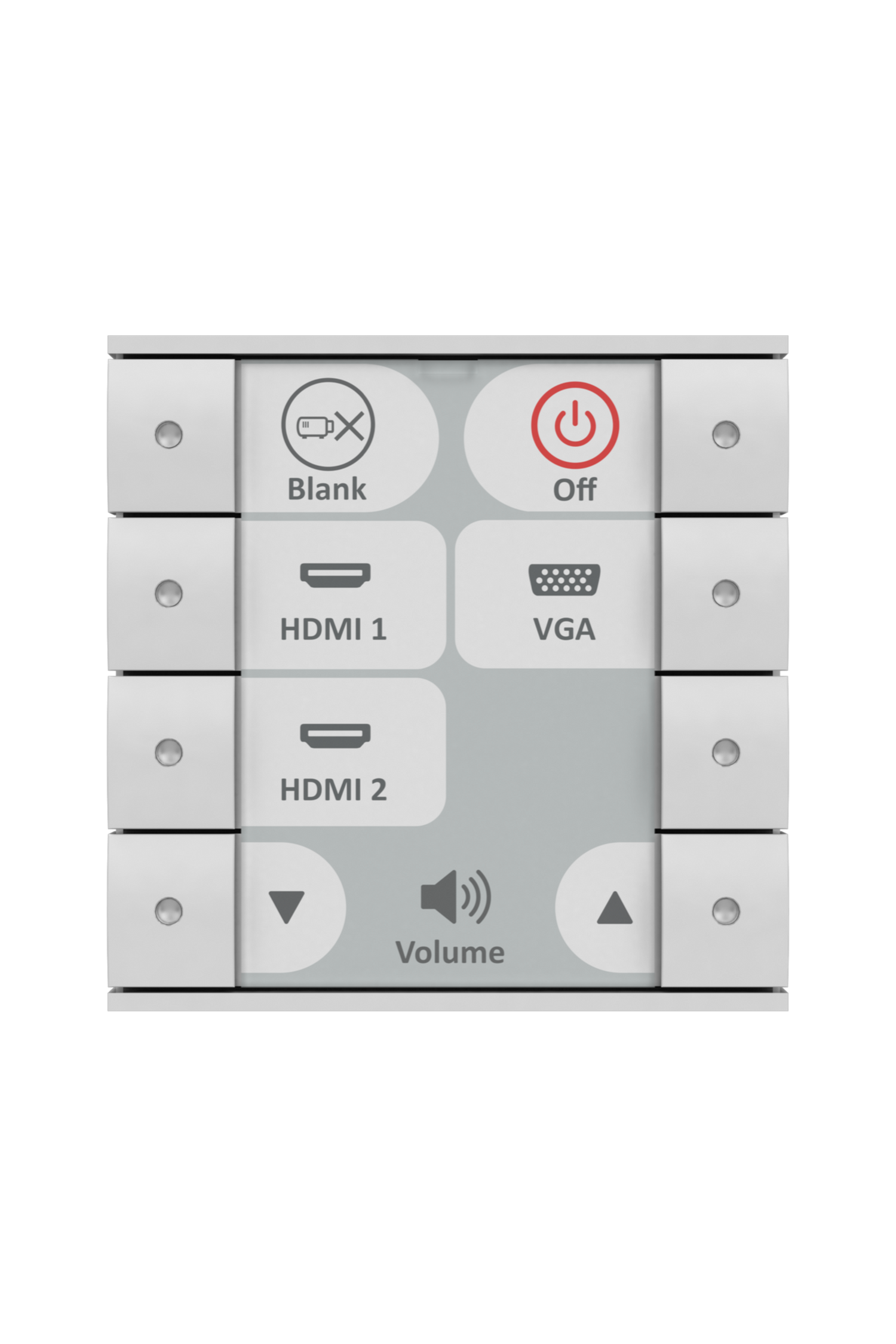

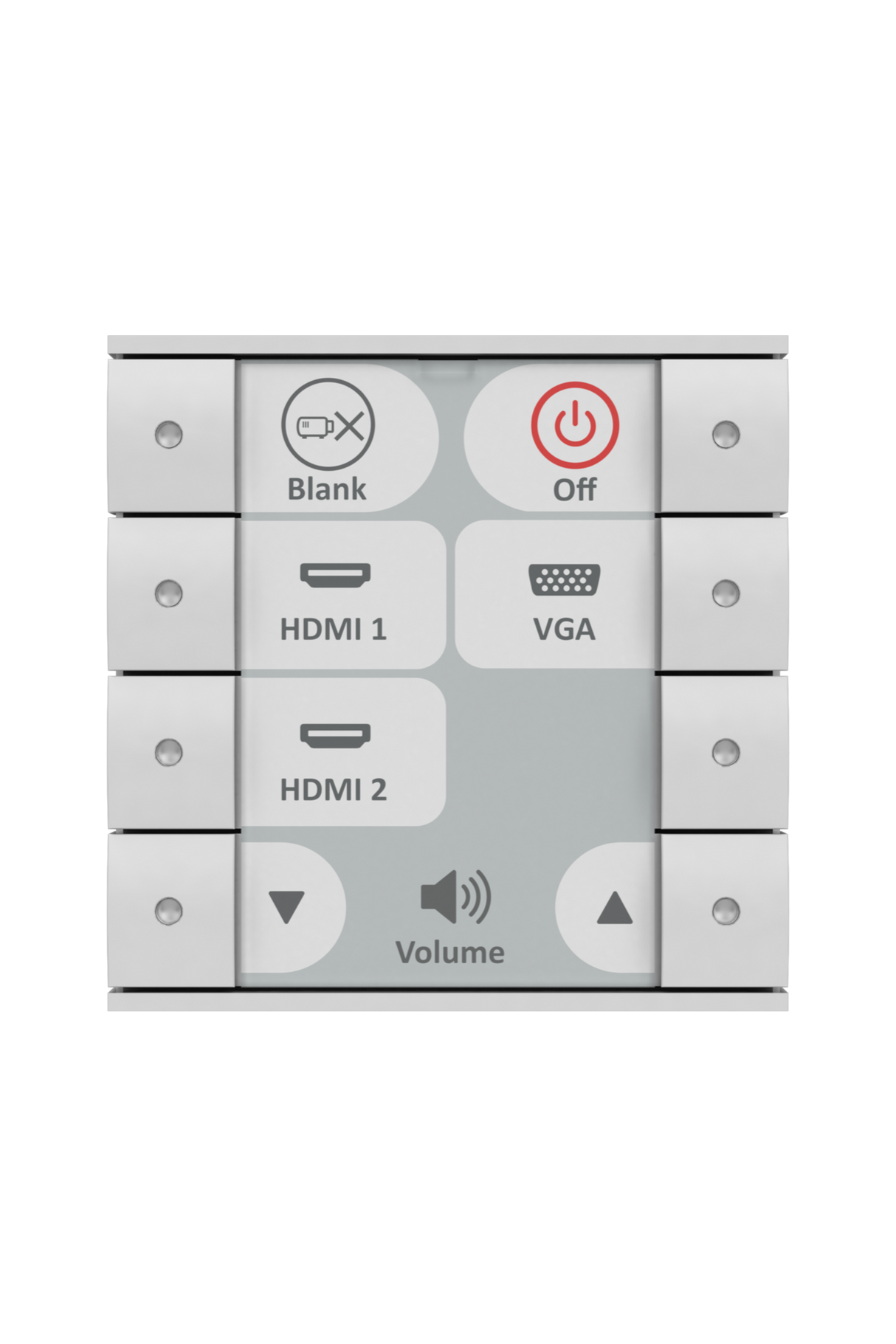

The Biamp Impera Echo Plus 8EUW is an eight-button AV control pad with an Ethernet port, built for conference rooms, training rooms, and presentation spaces that need networked device control. In a white EU form factor, it provides a simple wall-mount interface for controlling displays, sources, and third-party equipment without a separate control processor. As a networked room control keypad, the Echo Plus adds IP control to the proven Impera Echo platform. It belongs to the Biamp Impera control range.

Product Description

The Impera Echo Plus is a customizable AV control keypad that includes an on-board controller and adds a 10/100 Mbps Ethernet port for controlling up to two third-party devices over the network. Each of its eight mechanical buttons has a corresponding multi-color LED that can be configured in software to reflect room state, giving users clear feedback. Beyond Ethernet control, the pad drives equipment through one bi-directional RS-232/IR port with feedback and one uni-directional RS-232/IR port, and it provides three GPIO channels for logic signals to projectors, screens, and other hardware. Programming is handled in Biamp Project Designer, so the button layout and control logic can be updated as a room's equipment changes. The Echo Plus can be wall-mounted or installed in the EasyConnect tabletop cable management solution, which makes it a flexible commercial control pad for fixed or table-side placement. An expansion bus supports up to two additional devices such as extra keypads or port expanders, and a mini USB connection is provided for configuration and maintenance. The pad can also send email notifications for lamp and filter hours and other warnings. For rooms that do not require IP control, the standard Impera Echo control pad offers the same button and RS-232/IR features, and the Echo Plus pairs well with the EasyConnect MPX 250 DC in a table-side room build.

Key Features

• Ethernet control — A 10/100 Mbps Ethernet port controls up to two third-party devices over the network.
• Eight configurable buttons — Eight mechanical buttons, each with a multi-color software-configurable LED, provide clear one-touch control.
• On-board controller — An integrated controller means most rooms need no separate control processor.
• RS-232/IR and GPIO — One bi-directional and one uni-directional RS-232/IR port plus three GPIO channels drive room equipment.
• Flexible mounting — Wall-mount or install in the EasyConnect tabletop cable management solution.
• Expansion bus — Supports up to two additional keypads or port expanders as control needs grow.
• Software programmable — Configured in Biamp Project Designer so button layouts adapt over time.
• Five-year warranty — CE marked and RoHS compliant with Biamp's five-year warranty.

Typical Applications

• Conference room
• Training room
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Specifications sourced from the Biamp Impera Echo Plus data sheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

What does the Echo Plus add over the standard Echo?
The Echo Plus includes a 10/100 Mbps Ethernet port for controlling up to two third-party devices over the network; the button, RS-232/IR, and GPIO features are otherwise the same.

Does it need a separate control processor?
No. The Echo Plus has an on-board controller, so most rooms do not require an external processor.

What can it control?
It controls devices over Ethernet, one bi-directional and one uni-directional RS-232/IR port, and three GPIO channels.

How is it programmed?
Configuration is done in Biamp Project Designer and can be updated as room equipment changes.

How is it mounted?
It can be wall-mounted or installed in the EasyConnect tabletop cable management solution.

Can I expand the system?
Yes. An expansion bus supports up to two additional keypads or port expanders.

What warranty is included?
The Impera Echo Plus carries Biamp's five-year warranty. Contact Creation Networks for configuration support.
