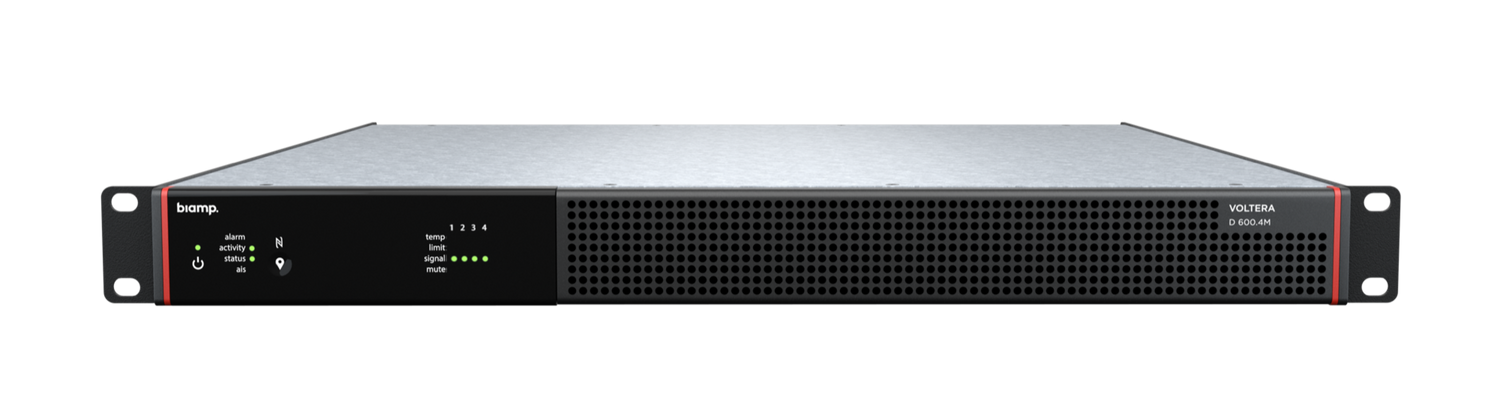

Biamp 920-01986-00001 Voltera D 600.4M

Product Overview

The Biamp Voltera D 600.4M is a four-channel networked amplified loudspeaker controller that pairs 600 W of Class D amplification with a fully programmable onboard DSP in a single rack unit. It is built for commercial AV integrators outfitting smaller rooms that still need distributed loudspeaker zones and full processing. As a rack-mount DSP amplifier, the Voltera D 600.4M drives low-impedance, 70V, or 100V loudspeakers and supports AVB, Dante, and AES67 for networked audio. Onboard processing lets it replace an external DSP, where that saving has the greatest proportional impact on system cost.

Product Description

The Voltera D 600.4M delivers 600 W across four channels, supplying 150 W per channel with all channels driven. Despite its compact power rating, it carries the same fully programmable DSP with headroom equivalent to a TesiraFORTÉ found across the Voltera D M line, so a single chassis handles amplification and loudspeaker processing in smaller commercial audio systems. Each channel drives 2.7, 4, 8, or 16 ohm loads as well as 70V and 100V constant-voltage lines, applied from the loudspeaker profile chosen during commissioning. Power sharing allows up to 100% of total power through any single channel, reaching 450 W at 100V, so one output can carry a heavier load. The amplifier is 100% software configurable through Biamp Tesira or VenueTune, and the ALAMOS profile library covers more than 200 Biamp models to speed setup. Distributed processing means system cost scales with power requirements rather than a central resource. The unit can be sustained through PoE+ so the processor stays online without a reboot during a mains power loss, and it supports failover-to-analog operation. Integrators can compare the higher-power Voltera D 1200.4M and the two-channel Voltera D 1200.2M, or view the full Biamp collection.

Key Features

• 600 W Across Four Channels — The amplifier delivers 600 W total with all channels driven, supplying 150 W per channel for smaller distributed systems.
• Onboard Programmable DSP — A fully programmable DSP with headroom equivalent to a TesiraFORTÉ handles loudspeaker processing without a separate processor.
• Networked Audio Support — The unit supports AVB, Dante, and AES67 over two 1000Base-T ports in converged, split, or redundant network modes.
• Power Sharing — Power sharing delivers up to 100% of total power through any single channel, reaching 450 W at 100V on one output.
• Flexible Output Drive — Every channel drives 2.7, 4, 8, and 16 ohm low-impedance loads as well as 70V and 100V constant-voltage lines.
• PoE+ Processor Sustain — When port 1 is connected to a PoE+ switch on a UPS, the processor stays online through a mains power loss without rebooting.
• ALAMOS Profile Library — Nearly 700 loudspeaker profiles covering more than 200 Biamp models speed commissioning in Tesira or VenueTune.
• Single Rack Unit — The 1 RU chassis provides four channels and full DSP where rack space is limited.

Typical Applications

• Huddle room
• Conference room
• Multi-purpose room
• Training room
• Commercial meeting space

Technical Specifications

Specifications sourced from the Biamp Voltera D M amplified loudspeaker controller data sheet (rev. 0925). Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Does the Voltera D 600.4M require a separate DSP?
No. It includes the same fully programmable onboard DSP found across the Voltera D M line, with headroom equivalent to a TesiraFORTÉ, so in many designs it replaces an external processor.

Is 600 W enough for a small commercial room?
For huddle rooms, conference rooms, and other smaller spaces with distributed loudspeakers, 600 W across four channels typically provides ample headroom, and power sharing lets one channel draw more when needed.

Which loudspeakers can it drive?
Each channel drives 2.7, 4, 8, and 16 ohm low-impedance loads as well as 70V and 100V constant-voltage lines, set through the loudspeaker profile chosen during configuration.

What audio networks does it support?
It supports AVB, Dante, and AES67 over two 1000Base-T ports and can run in converged, split, or redundant network modes.

Will it stay online during a power outage?
If port 1 is connected to a PoE+ switch backed by a UPS, the processor is sustained through a mains power loss without rebooting, and the unit supports failover-to-analog operation.

How much rack space does it need?
The chassis occupies a single rack unit (1 RU) and ships with a rear support kit for 19-inch rack mounting.

What warranty and compliance does it carry?
The Voltera D M series carries a 5-year warranty and is compliant with the US Trade Agreement Act (TAA).
