Biamp 920-01882-00001 EasyConnect USB 200
Product Overview

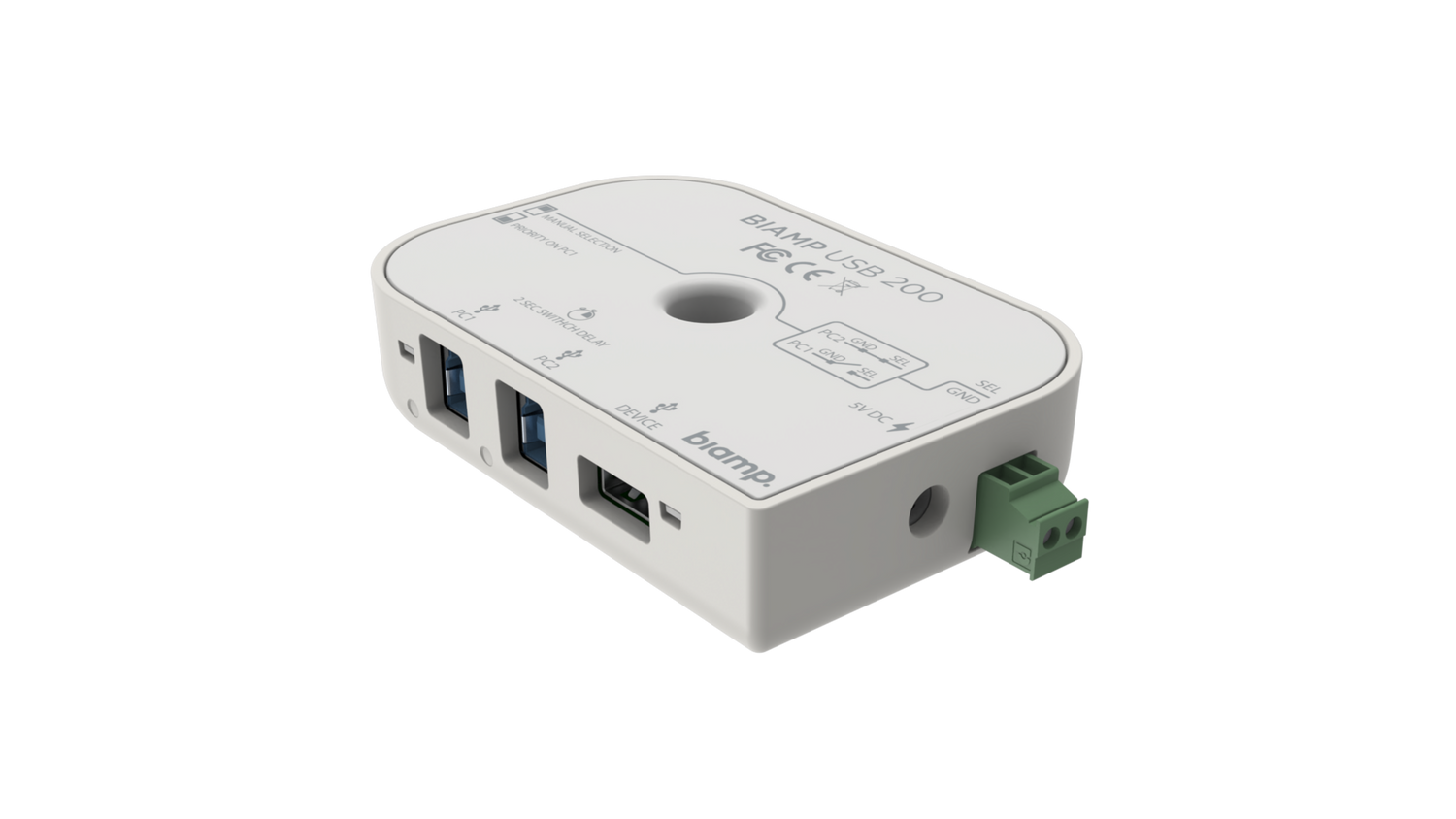

The Biamp EasyConnect USB 200 is a two-port USB switch for conference rooms that shares a camera, microphone, or speakerphone between two host computers. Designed for bring-your-own-device (BYOD) meeting spaces, this commercial AV USB switch supports both USB 2.0 and USB 3.0 peripherals and integrates a built-in USB extender for flexible device placement. It is part of the Biamp EasyConnect connectivity range for conference room AV.
Product Description
The EasyConnect USB 200 addresses a recurring challenge in dual-use meeting rooms: one set of USB peripherals that must serve both a permanently installed room computer and visiting laptops. The switch provides two USB 3.0 Type-B connections for host computers and one USB 3.0 Type-A connection for the shared peripheral device. Configurable automatic priority switching hands the peripheral to a second computer when it connects, or the source can be selected manually through a third-party control system for AV system integration. A two-second power switch delay cuts power during the handoff to guarantee a stable, reliable re-enumeration of the connected device. The integrated USB extender supports USB 3.0 cable runs of up to 10 feet (3 m) and USB 2.0 runs of up to 17 feet (5 m) on each side of the switch, giving installers flexibility in table and device placement. A general purpose contact-closure input supports control-system triggering, and convection cooling keeps operation silent. The USB 200 complements Biamp BYOM room hardware and USB conferencing peripherals. For a complete BYOM room platform, see the EasyConnect MPX 250, and explore related products in the Biamp collection.
Key Features
- Two-to-One USB Switching — Shares a single USB peripheral between two host computers so an in-room PC and a guest laptop can use the same device.
- USB 2.0 and USB 3.0 Support — Works with both USB standards for compatibility with legacy and current conferencing peripherals.
- Automatic or Manual Switching — Provides configurable automatic priority switching for BYOD workflows or manual selection through a third-party control system.
- Built-in USB Extender — Extends USB 3.0 runs to 10 feet (3 m) and USB 2.0 runs to 17 feet (5 m) on each side for flexible placement.
- Reliable Re-Connection — A two-second power switch delay ensures dependable device re-enumeration when switching sources.
- Control Integration — A general purpose contact-closure input supports external control-system triggering.
- Five-Year Warranty — Covered by Biamp's five-year warranty for commercial installations.
Technical Specifications
| Model / SKU | EasyConnect USB 200 / 920-01882-00001 |
| USB Ports (Computers) | 2 × USB 3.0 Type-B |
| USB Port (Device) | 1 × USB 3.0 Type-A |
| USB Standards | USB 2.0 and USB 3.0 |
| USB 3.0 Cable Length (each side) | Up to 10 ft (3 m) |
| USB 2.0 Cable Length (each side) | Up to 17 ft (5 m) |
| Switching | Automatic priority or manual (third-party control) |
| Power Switch Delay | 2 seconds |
| General Purpose Input | 1 × 2-pin 0.3 in Euroblock (contact closure) |
| Bit Depth / Sample Rate | 16-bit / 48 kHz |
| Power | 5 V DC, 15 W |
| Cooling | Convection |
| Dimensions (H × W × D) | 0.9 × 2.5 × 3.7 in (23 × 64 × 95 mm) |
| Weight | 0.2 lb (75 g) |
| Operating Temperature | 32–104°F (0–40°C) |
| Compliance | CE, RoHS |
| Warranty | 5 years |
Specifications sourced from the Biamp USB 200 datasheet. Confirm detailed specifications against current Biamp documentation.
