Biamp 920-01557-20000 CM6T
Biamp 920-01557-20000 CM6T is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp 920-01557-20000 CM6T
Product Overview

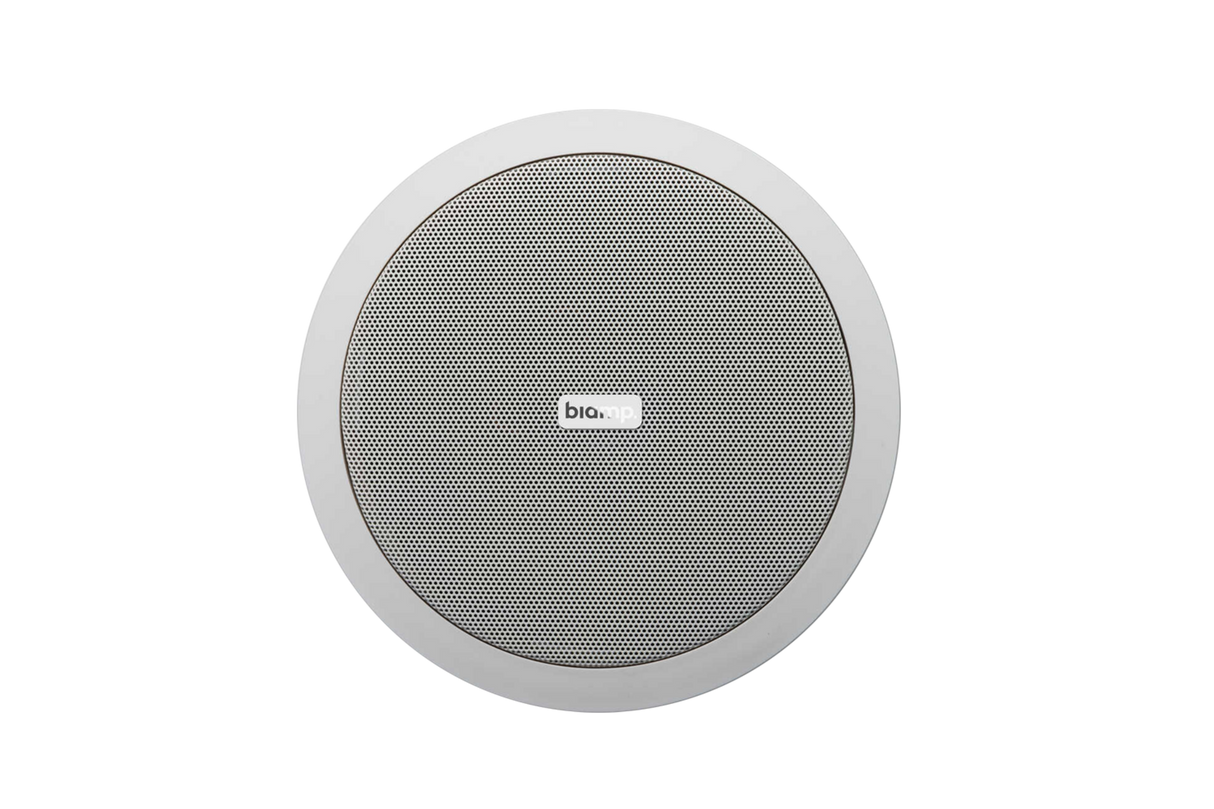

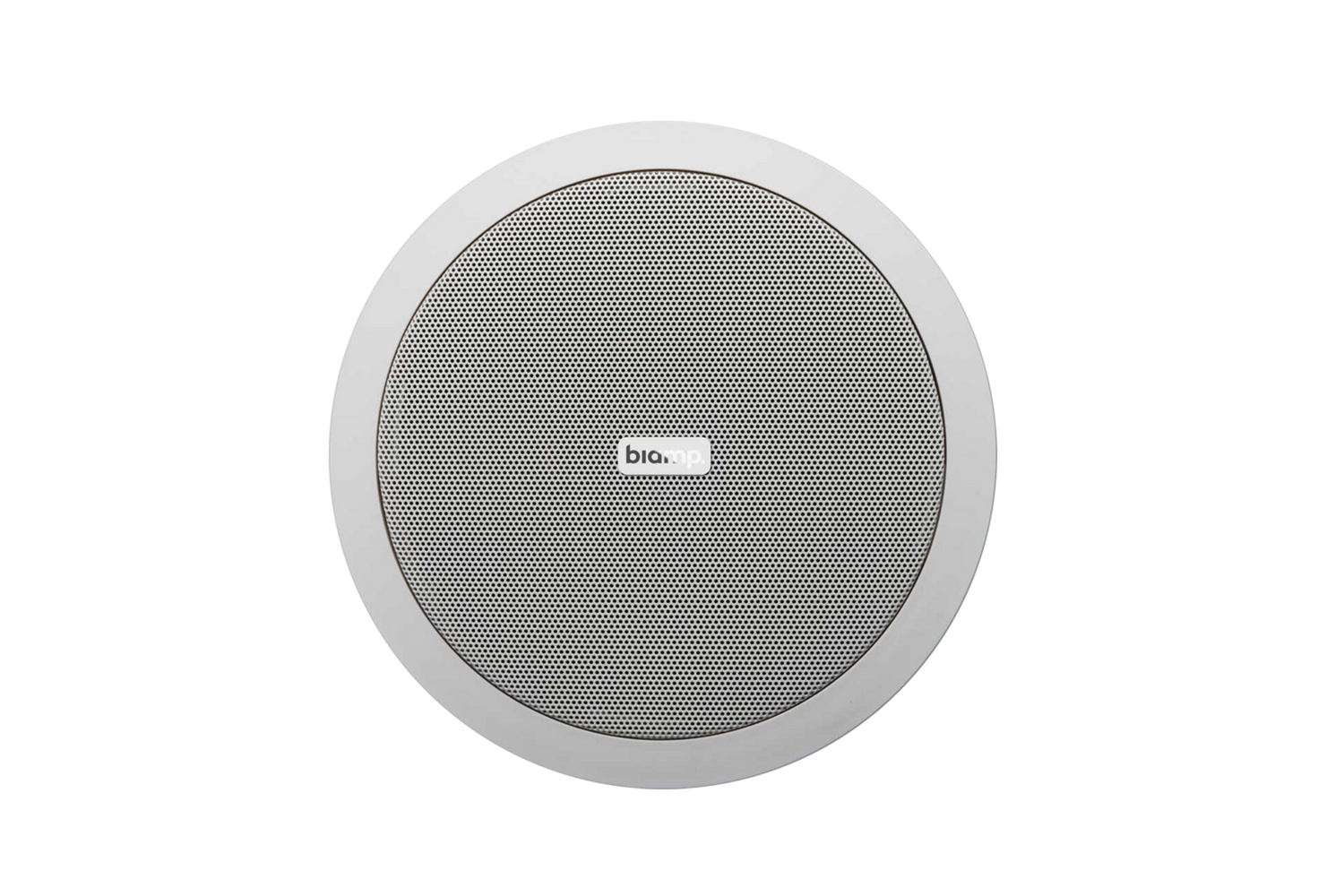

The Biamp CM6T is a 6.5-inch two-way in-ceiling loudspeaker built for background music and paging in commercial installations. This white model is a cost-effective choice for retail, hospitality, and office spaces that need clear distributed audio. The CM6T operates as a 16-ohm loudspeaker or on a 70V/100V line with a 6-watt transformer. Its IP54-rated construction and aluminum grille suit humid environments.
Product Description
The Biamp CM6T ceiling loudspeaker combines a 6.5-inch reinforced polypropylene woofer with a 1-inch tweeter for low-distortion speech and music reproduction. In 16-ohm use, up to four loudspeakers connect in parallel on each channel of a standard 4-ohm amplifier, which fits typical low-impedance zones. For 70V/100V distributed audio, the CM6T carries a 6-watt transformer with several power taps, making it a practical choice for background music where high output is not required. The ABS housing, moisture-proof polypropylene woofer, and aluminum grille make the CM6T suitable for high-humidity environments and applications where steel grilles would corrode. A three-screw mounting system with a Quick Fix connector and tapping decal speeds installation. This white unit (RAL9010) is the color sibling of the CM6T-BL (black); for higher output, step up to the CM20T. See the Biamp collection for amplifiers and companion ceiling speakers.
Key Features
- 6.5-inch two-way driver — The reinforced polypropylene woofer and 1-inch tweeter deliver clear background music and paging with low distortion.
- 6-watt 70V/100V transformer — Multiple power taps let integrators set background-music levels across a distributed zone.
- 16-ohm parallel operation — Up to four CM6T units run in parallel per channel of a standard 4-ohm amplifier for low-impedance zones.
- IP54 moisture resistance — The ABS housing and aluminum grille suit humid spaces where steel grilles would corrode.
- Three-screw quick mounting — Hidden screws and a Quick Fix connector reduce installation time and keep the ceiling appearance clean.
- White paintable finish — The white grille (RAL9010) can be painted to match the ceiling for a discreet installation.
Technical Specifications
| Model / SKU | Biamp CM6T (White) / 920-01557-20000 |
| Type | 6.5-inch two-way in-ceiling loudspeaker |
| Woofer / tweeter | 6.5 in woofer / 1 in tweeter |
| Frequency response | 60 Hz – 20 kHz |
| Sensitivity (1 W @ 1 m) | 87 dB |
| Max SPL @ 1 m | 105 dB |
| Impedance | 16 Ω (low-Z continuous power 30 W) |
| 70 V taps | 6 / 3 / 1.5 / 0.75 W |
| 100 V taps | 6 / 3 / 1.5 W |
| Outside diameter | 205 mm |
| Cutout diameter | 186 mm |
| Depth | 75 mm |
| Grille material | Aluminium |
| IP rating | IP54 |
| Weight | 1.40 kg |
| Colour | White (RAL9010) |
Specifications sourced from Biamp product documentation (biamp.com / downloads.biamp.com). Confirm detailed specifications against current Biamp documentation.
