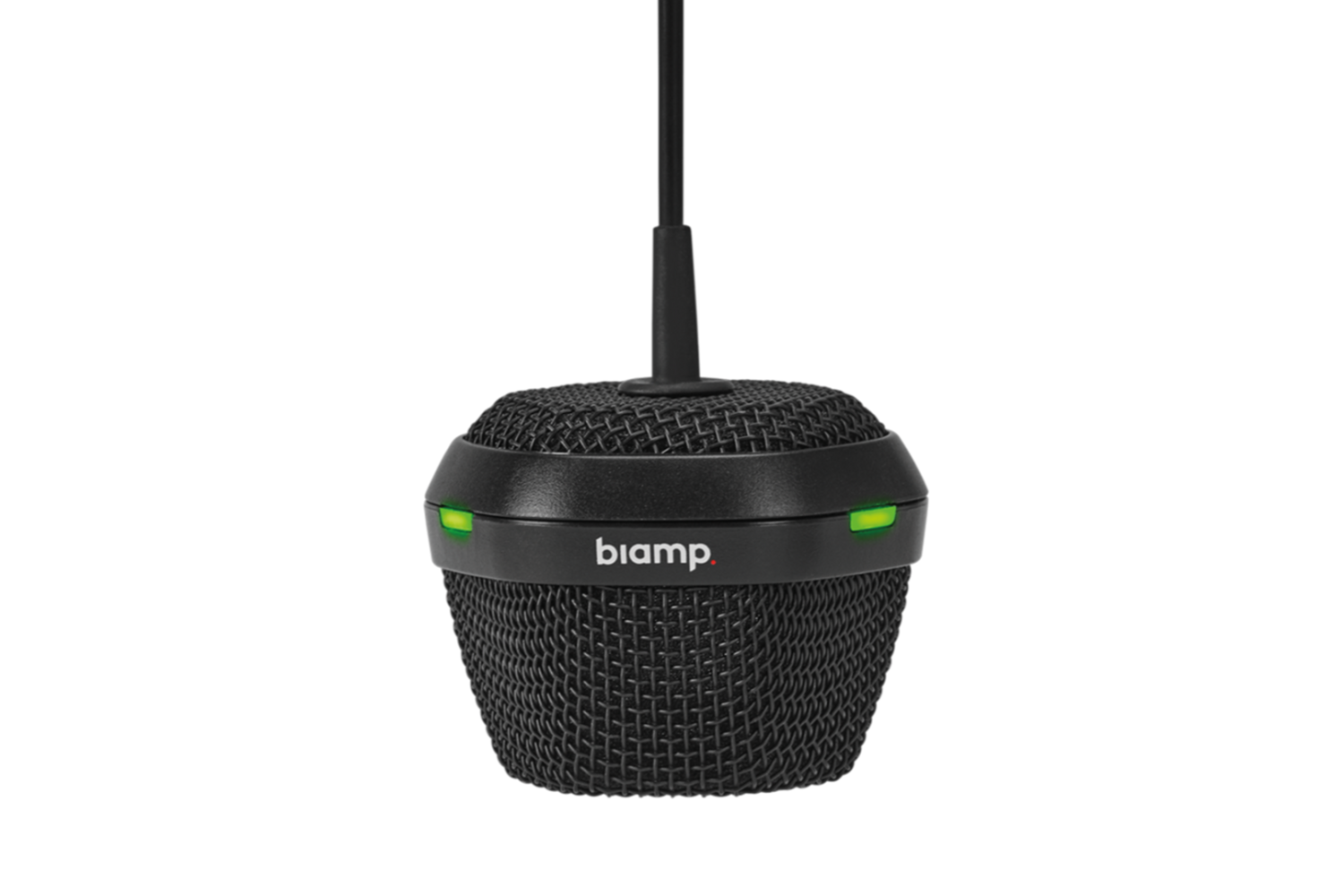

Biamp 920-00488-10000 Devio DCM-1 Black

Product Overview

The Biamp Devio DCM-1 is a Beamtracking ceiling microphone designed exclusively for Biamp Devio conferencing systems, giving huddle rooms and small conference rooms full 360-degree audio pickup from a discreet ceiling-mounted pendant. It uses three 120-degree zones and an eight-element digital array to actively track and mix conversation around the table so far-end participants hear the room naturally. This black-finish DCM-1 keeps the microphone off the table and out of the camera's sightline while maintaining clear voice capture. It is a plenum-rated ceiling microphone suited to installations that need clean, hands-free conferencing audio.

Product Description

The Devio DCM-1 pairs Beamtracking beamforming with acoustic echo cancellation so the microphone follows the active talker across three zones without manual steering. Four software-selectable elevation angle modes and a user-adjustable microphone height let integrators tune pickup for different ceiling heights and table layouts. Installation uses a single cable from the plenum box to the Devio host, and each plenum box includes a second RJ-45 connector so a second DCM-1 can be daisy-chained, up to a maximum of two microphones per chain. The microphone connects over a proprietary network to a Devio hub and is suitable for use in air handling spaces per UL 2043, which matters for above-ceiling deployment. This black DCM-1 is a companion to Biamp's Devio room hubs; browse the full Biamp collection and pair it with a Devio conferencing hub such as the Devio SCR-20C. It is a practical, commercial-grade microphone choice where table space and camera sightlines are limited.

Key Features

• Beamtracking Coverage — Three 120-degree zones and an eight-element digital array provide full 360-degree pickup of the meeting space.
• Active Talker Tracking — The microphone tracks and intelligently mixes conversation so remote participants hear the room naturally.
• Acoustic Echo Cancellation — Beamtracking operates alongside AEC for clear, echo-free far-end audio.
• Selectable Elevation Modes — Four software-selectable elevation angle modes and adjustable mic height tune pickup to the room.
• Single-Cable Installation — The pendant connects to a plenum box for a simple single-cable install, with a second RJ-45 for daisy-chaining a second DCM-1.
• Plenum Rated — Evaluated to UL 2043 for use in air handling spaces above the ceiling.
• Mute Status Indicators — Green and red LED mute indicators show microphone status at a glance.

Typical Applications

• Huddle room
• Conference room
• Boardroom
• Commercial meeting space
• Training room

Technical Specifications

Specifications sourced from the Biamp Devio DCM-1 data sheet. Confirm detailed specifications against current Biamp documentation.

Frequently Asked Questions

Which systems is the Devio DCM-1 compatible with?
The DCM-1 is designed exclusively for Biamp Devio systems and connects to a Devio hub over a proprietary network.

How much of the room does one microphone cover?
Each DCM-1 provides three 120-degree zones for full 360-degree coverage, actively tracking talkers around the table.

Can I use more than one DCM-1 in a room?
Yes. A second DCM-1 can be daisy-chained using the plenum box's additional RJ-45 connector, up to a maximum of two microphones per chain.

Can it be installed above the ceiling?
Yes. The DCM-1 is evaluated to UL 2043 and is suitable for use in air handling (plenum) spaces.

How is the microphone installed and cabled?
The pendant connects to a plenum box for a single-cable install to the Devio hub, with up to 49 feet (15 m) between devices.

Does it help with echo on calls?
Yes. Beamtracking works together with acoustic echo cancellation to deliver clear far-end audio.

What warranty does it carry?
The Devio DCM-1 is covered by Biamp's two-year warranty.
