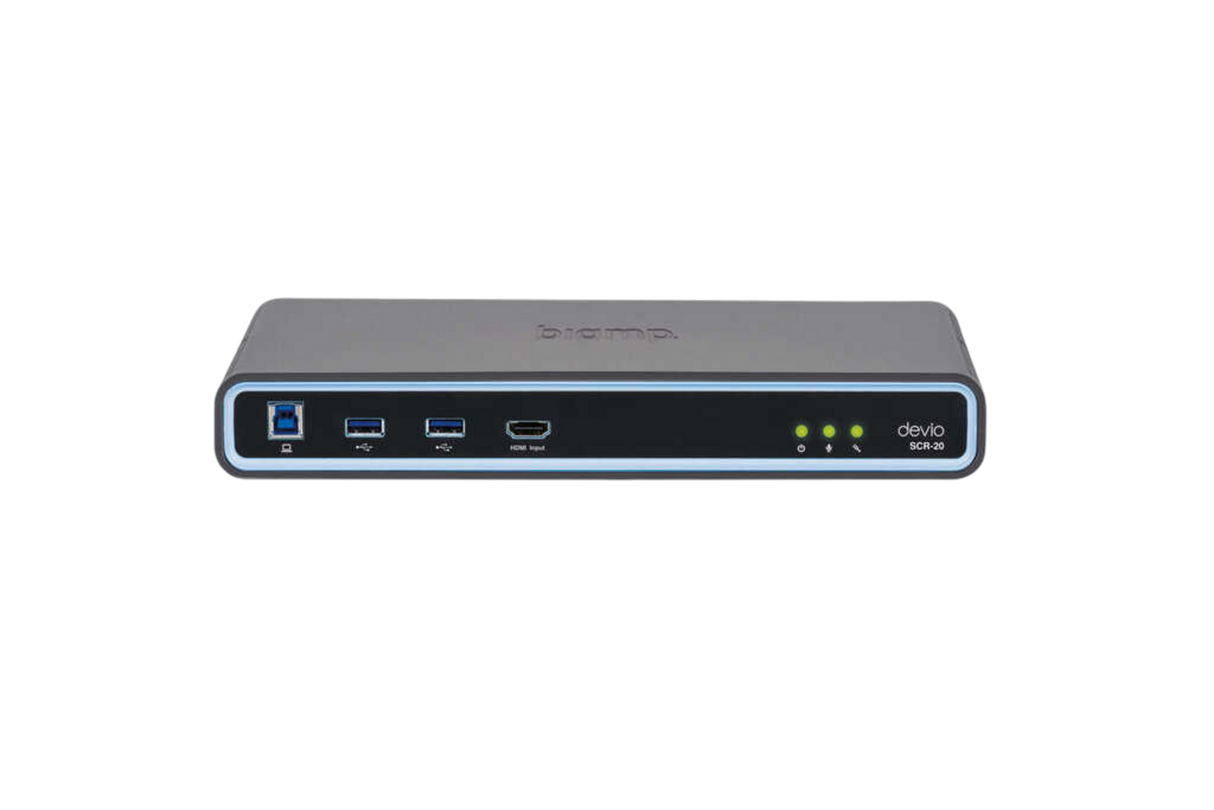

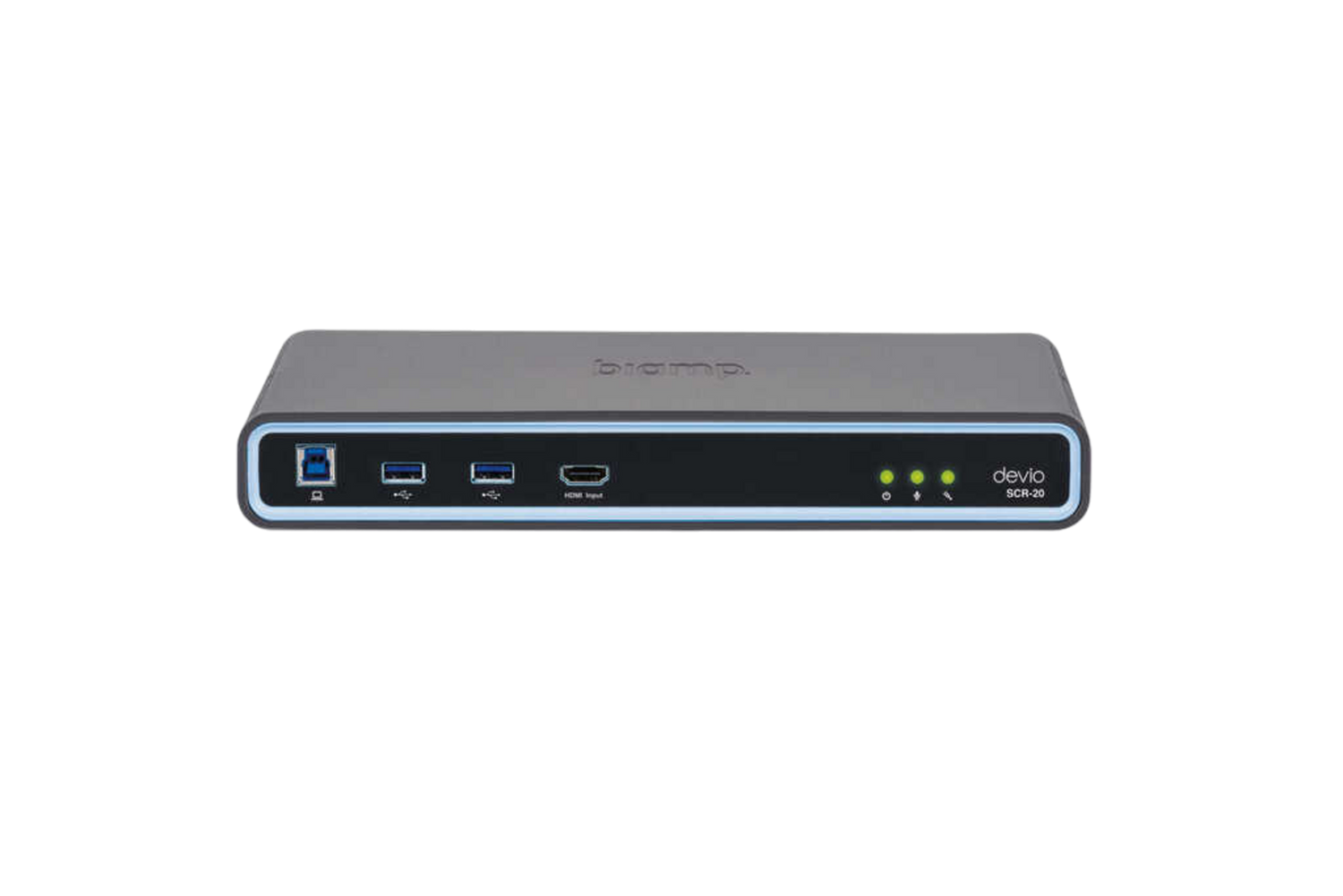

Biamp 930-00457-00007 Devio SCR-20C Black

Product Overview

The Biamp Devio SCR-20C is a conferencing hub that brings professional in-room audio and video to PC-based meetings in huddle rooms and small conference rooms. Using Parle Beamtracking microphone technology and professional-grade DSP, this USB conferencing hub captures clear voice around the table so far-end participants experience the conversation naturally. It connects to a Windows or Mac host over a single USB cable and works with common soft codecs including Microsoft Teams, Zoom, Webex, and Google Meet. Auto Setup validates connections and tunes room audio, making it a fast, repeatable small conference room solution.

Product Description

The Devio SCR-20C pairs a Beamtracking microphone with onboard DSP, acoustic echo cancellation, and automatic gain control to deliver intelligible audio without manual programming. It supports a range of room designs for computer-based conferencing, including a BYOD approach or a dedicated in-room PC, and connects to the host over a standard USB type-B connection using standard audio drivers. For video, it provides driverless pass-through HDMI to a single in-room display, or drives two monitors using DisplayLink USB graphics technology. Speaker options are flexible: HDMI audio, a built-in 20W amplifier for a passive loudspeaker, or RCA line out to an external amplifier.

Auto Setup validates device connections, adjusts room levels, and sets speaker EQ to optimize audio quality after installation. The hub can be monitored and managed remotely via SNMP or the Devio System Administration Utility (SAU), and firmware updates can be scheduled and deployed across multiple Devio units, which suits fleets of standardized rooms. It ships with a mounting bracket for under-the-table installation and one Beamtracking microphone, and it carries a five-year Biamp warranty. Expand microphone coverage with the Devio DCM-1 ceiling or DTM-1 tabletop microphones, and browse compatible peripherals in our Biamp collection; add a Devio DTM-1 tabletop microphone for larger tables.

Key Features

• Beamtracking audio — Parle Beamtracking microphone technology and professional DSP track and mix voices for natural far-end audio.
• Single-USB connection — Connects to a Windows or Mac host over standard USB using standard drivers, so it works with common soft codecs.
• Platform flexibility — Compatible with Microsoft Teams, Zoom, Webex, Google Meet, and other web conferencing solutions.
• Flexible video output — Driverless pass-through HDMI to one display, or two monitors via DisplayLink USB graphics.
• Multiple speaker options — HDMI audio, a built-in 20W amplifier, or RCA line out to an external amplifier.
• Auto Setup tuning — Validates connections, sets room levels, and applies speaker EQ automatically after installation.
• Remote management — Monitored and managed via SNMP or the Devio SAU, with scheduled firmware deployment across units.
• Five-year warranty — Ships with an under-table bracket and one Beamtracking microphone; covered by Biamp's five-year warranty.

Typical Applications

• Huddle room — Fast, high-quality audio and video for small-team PC-based calls.
• Conference room — Small rooms standardizing on Teams, Zoom, or Webex.
• Training room — Reliable, auto-tuned room audio for rotating presenters.
• Multi-purpose room — BYOD or in-room PC conferencing in flexible spaces.
• Commercial meeting space — Fleet-managed small rooms with consistent audio quality.

Technical Specifications

Specifications sourced from the Biamp Devio SCR-20 data sheet.

Frequently Asked Questions

Which conferencing platforms does the SCR-20C support?
It works with PCs running web conferencing software including Microsoft Teams, Zoom, Webex, and Google Meet, using standard audio drivers over USB.

How does it connect to displays?
It offers driverless pass-through HDMI to a single display, or drives two monitors using DisplayLink USB graphics technology.

What are my speaker options?
You can use HDMI audio, the built-in 20W amplifier with a passive loudspeaker, or RCA line out to an external amplifier.

Can I add more microphone coverage?
Yes. It ships with one Beamtracking microphone and works within the Devio ecosystem; add DCM-1 ceiling or DTM-1 tabletop microphones for larger rooms.

How is it installed and tuned?
It mounts under the table with the included bracket, and Auto Setup validates connections, adjusts levels, and sets speaker EQ after installation.

How is it managed and supported?
It is managed remotely via SNMP or the Devio SAU with scheduled firmware deployment, and it carries Biamp's five-year warranty.
